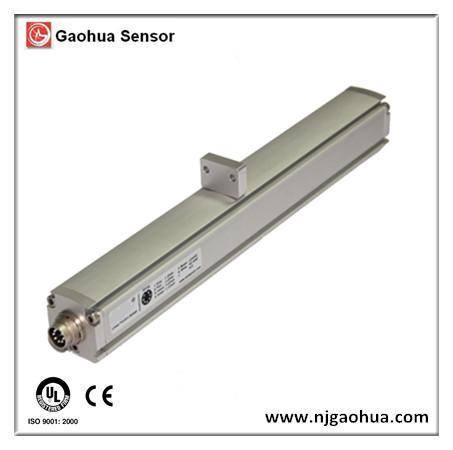

CL-Analog Linear Position SensorCL series feature:
External installation, easy to use.

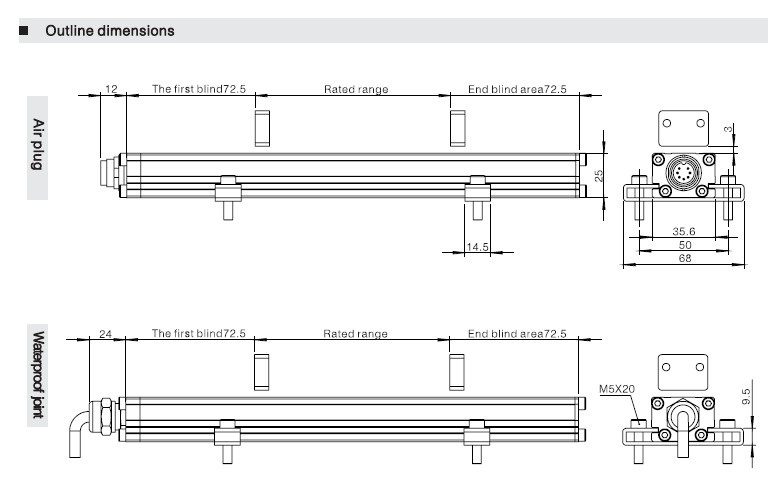

Compact structure, total installation height<27mm
Absolute location output, no need to return to zero.
Non-contact measurement, no physical deterioration forever.
Repeatability precision, < ± 0.002% F. S.
Floating magnetic, the biggest vertical safety clearance can achieve 6mm.
Introduction:
The total height of CL Series sensor after installation is only 27mm, it can satisfy the limit space installation requirement. The biggest vertical safety clearance of the paring floating magnetic can achieve6mm, it is expecially suitable for the big vibration numerical control device. External installed design makes it convenience to replace.
|
Item Name |
Index Number |
|
Parameter Measured |
|
Measurement range |
50-2000mm |
|
Output signal |
0~10VDC |
|
Resolution |
Infinite |
|
Nonlinearity degree |
< ± 0.02% F. S. |
|
Repeatability precision |
< ± 0.002% F. S. |
|
Refresh time |
> 1.5KHz |
|
Electric feature |
|
|
Outgoing line |
Water-proof connector, or 6 lamp pith aircraft connector |
|
Input voltage |
24VDC(-15/+20%) |
|
Working current |
< 60mA(changing depend on F. S. ) |
|
Polarity protection |
max. -30VDC |
|
Overvoltage protection |
max. -36VDC |
|
Insulating ability |
500V(between the signal GND and the housing) |
