Product Specifications
| Prod Model: |
BE-IPW512V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Device: |
960p Low Lux Ar0130 CMOS Sensor |
| Lens: |
2.8-12mm Manual Zoom Lens |
| Infrared Sensitivity: |
Support |
| IR Distance: |
30m |
| Focus: |
Manual Zoom Lens |
| Size: |
1/3 Inch |
| Aperture: |
Fixed Aperture F1.2 |
| Video Compression: |
H.264 |
| Two Way Audio: |
Support |
| IR Filter: |
IR-Cut |
| Technology: |
Infrared |
| Style: |
Bullet Camera |
| Type: |
IP Camera |
| Sensor: |
CMOS |
| HDMI Format: |
960P |
| Certification: |
RoHS |
| Feature: |
Waterproof / Weatherproof |
| Effective Distance: |
10-30m |
| Sensor Size: |
1/3 inch |
| Remote Control: |
Without Remote Control |
| Horizontal Resolution: |
1.3 Megapixel IP Camera |
| Kind: |
Zoom |
Product Description

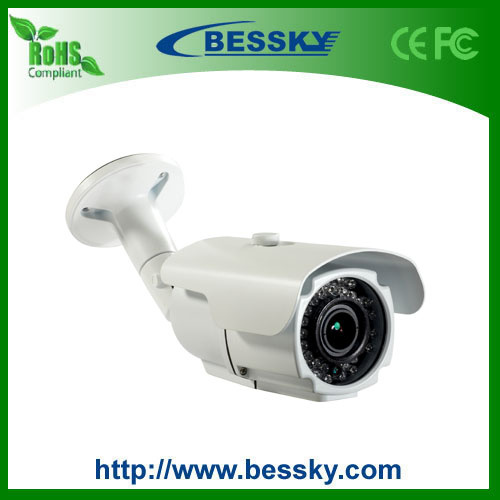

H. 264 1.3 Megapixel Low Cost Zoom Wired IP Bullet Waterproof Camera (BE-IPW512V)
Feature:
HD CMOS Sensor
2.8-12MM Manual Zoom Lens
36IR LEDs, 30 M Infrared Lamp Range
H. 264 Compression Format
Support P2P
Support MobilePhone Viewing
Support Onvif
| Item | BE-IPW1012 | BE-IPW812 | BE-IPW612 | BE-IPW512 |
| Device Type | 1080P Sony MX 122 CMOS sensor | 1080P 9P006 CMOS sensor | 720P OV9712 CMOS sensor | 960P low lux AR0130 CMOS sensor |
| Size | 1/2.5 | 1/4 | 1/3 |
| Day and Night | Yes |
| Min.Scene Illumination | 0.01lux(IR ON) | 0.5lux(IR ON) | 0.5lux(IR ON) | 0.01lux(IR ON) |
| Infrared sensitivity | Support |
| IR Filter | IR-CUT |
| IR-led | Yes |
| IR distance | 30M |
| Electronic shutter | 1/5-1/15,000 /S |
| lens | 2.8-12MM Manual Zoom Lens |
| Focus | Manual Zoom Lens |
| Aperture | Fixed Aperture F1.2 |
| Compression | H.264 Main Profile/Baseline |
| Picture Resolution | 1920*1080@30ps 1280*720@30fps | 1920*1080@30ps 1280*720@30fps | 1280*720@30fps | 1280*960@30fps 1280*720@30fps |
| Steam flow | Support dual stream |
| Bit Rate | 128-8192kbps |
| Bit Rate Type | CBR/VBR |
| S/N Ratio | >50DB |
| Image enhancement | Auto White Balance,Backlight compensation,Brightness\Contrast\Saturation adjusted |
| Subtitles input | Support channel name, date/time |
| Flip Config | Up/down, Left/right |
| Audio | Support the microphone input and LINE OUT, support two-way voice intercom equipment |
| equipment | An external audio equipment |
| Audio input/ output | one channel audio input, one channel audio output |
| Audio Compression | G.711/G.726 |
| Alarm input/output | one channel alarm input, one channel alarm output |
| Alarm way | Motion Detection:Configure motion detection area,detecting sensitivity is adjustable |
| Cover alarm:The alarm sensitivity is adjustable |
| Alarm processing | The control center to monitor,Go to PTZ preset pos,Send E-mail, Log record,SD card storage etc. |
| Protocal | HTTP\TCP/IP\UDP\SMTP\DDNS\DNS\SNTP\DHCP\FTP\RTP\RTSP\UPNP\ONVIF\ 28181 |
| Ethernet | Ethernet (10/100 Base-T),RJ-45 connector |
| Safety | IP address filtering,User level password protection,The user access log |
| WEB Browser | Microsoft Internet Explorer 6.0 and above,google\firefox etc. |
| Mobile Phone | Support iPhone\Android,Bit rate:32K – 512K adjustable,Frame rate:6–12 fps |
| Software Management | CMS and the devices Compatible with ONVIF |
| Software intelligence function | Motion detection,Miss object detection, Moving object tracking, counting, Retrograde motion detection, etc. |
| Event action | Files are stored to the back end equipment,Send E-mail\Send SMS\Zoom in alarm\Pop ap map \Go to PTZ preset pos etc |
| Remote Access | DDNS\Software\P2P |
| Accessories | Power adapter, Network cable, Stand, Operation manual, CD, Screw bag |
| Power Comsumption | DC 12V ,Module power consumption is less than 2 W |
| Temperature | -20°~60°C |
| Humidity | -10~85% |
| Weight | 1.2kg |
| Dimension | 27.5*11*11(L*W*H)CM |
| Certification | CE ,FCC,RoHS |
