Mainboard, Motherboard with Onboard I3-3217u, Mini PCI Express X1

Name: Mainboard, Motherboard with Onboard I3-3217u, Mini PCI Express X1
Brand: china-manufacturer-directory.com
SKU: 775037205
Availability: InStock
Rating: 4.4 (149 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

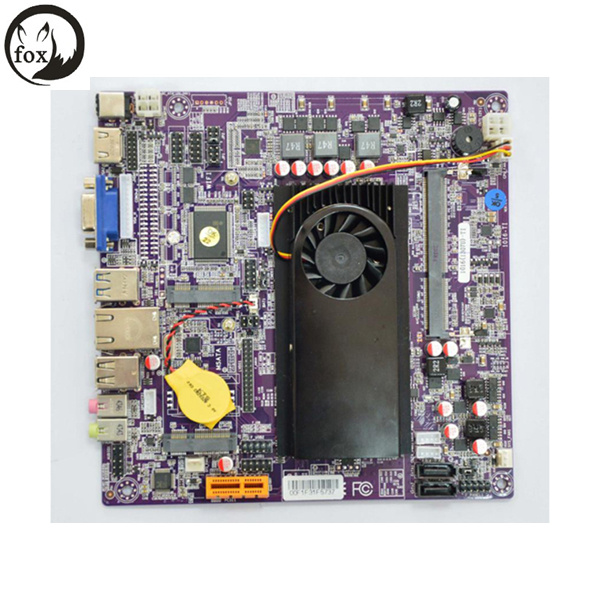

Mainboard,Motherboard with Onboard I3-3217U,Mini PCI Express X1

CPU	Onboard I3-3217U (1.8G Dual-core four threads, 2×256KB second level cache,3MB three-level buffer)Processor CPU Single power supply design
Chipset	Intel® HM65 Chipset
Graphic Interface	Support DirectX® 10.1 Support Full HD 1080P Blu-ray / HD-DVD High-definition playback
Memory	Support DDR3 1333/1066 non-ECC, Un-buffered SDRAM memory 2 X DDR3 SO-DIMM Slots The biggest memory capacity is tested 16 GB
Storage	2 X Mini PCI Express X1 Slots (One of Support M-SATA Hard disk ) 2 X Serial ATAII 3Gb/s
Ethernet	Realtek 8105E 10/100 Mega Ethernet chip
Audio	Integration Realtek ALC662 5.1 sound channel sound card Support Audio out(External audio) Built-in amplifier function

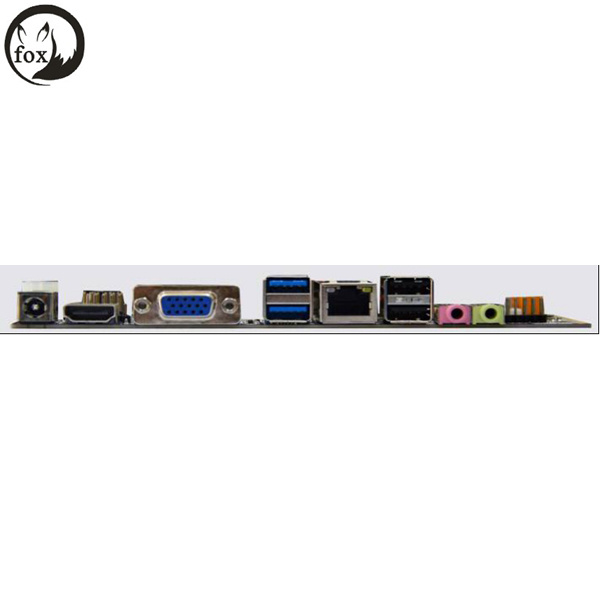

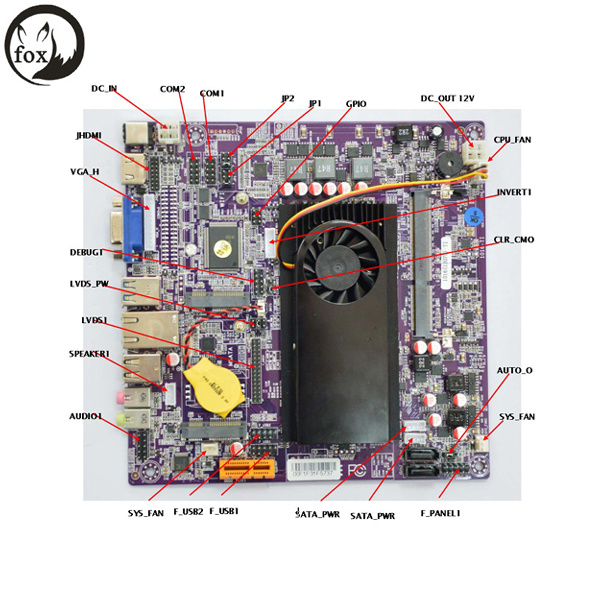

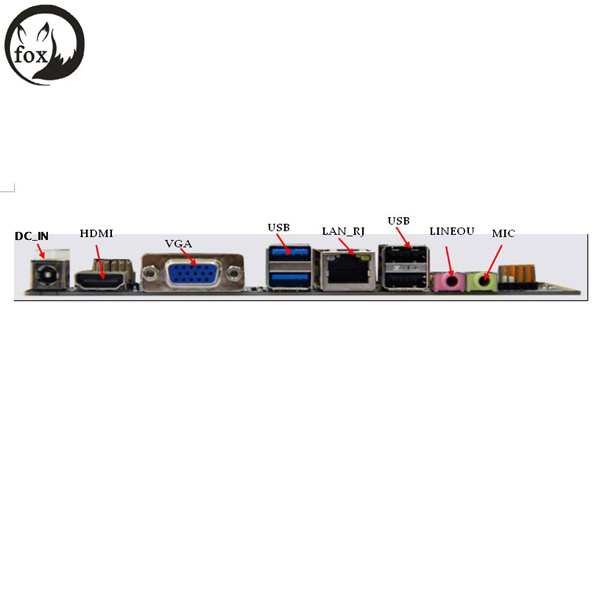

Other Port	2 x Audio jacks (Line Out, Mic In) 1 X RJ-45 port 1 X HDMI port 1 X D-Sub (VGA) port 8 X USB2.0 port(4 External,4 Built-in pin) 1 X DC in port 1 X CPU_Fan port 1 Xsystem fan port 1 X LVDS connector 2 X SATA Power Connector 2X SATA port 2X COM Pin Header port
Factor	Mini ITX 170x170mm

Prod Model:	ITX-TPI3-TI-V1.0
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
COM:	2
Integrated Graphics:	Integrated Graphics
Main Chipset:	Intel
Maximum Memory Capacity:	16G
Structure:	Mini-ITX
Memory:	DDR3
SATA Interface:	SATA2.0
Printed Circuit Board:	Six Layer
Main Board Structure:	Integrated
Audio Effects:	Not HiFi
