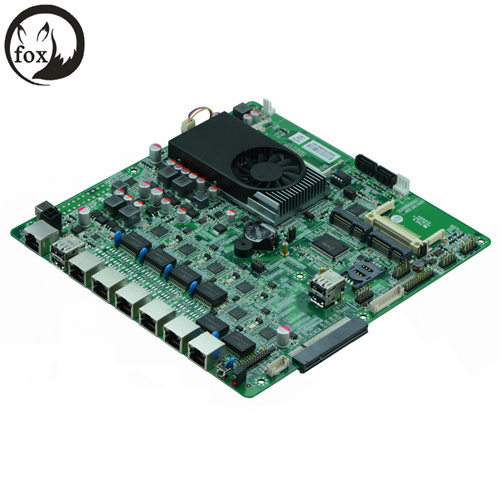

N70SL ----- 6 LAN 1037 Firewall Motherboard with 6 Ethernet
Specifications
Firewall Motherboards with 6 Ethernet
6 Gigabit 1037U Router Server Motherboard
Industrial Router mainboard 1037U 6 Gigabit Lan Firewall Motherboard -------N70SL
Introduction
N70SL---- integrates Intel® 1037U Sandy Bridge/Ivy Bridge architecture Celeron dual-core processor,adopts Intel® NM70 chipset,
with single channel memory slot, 2 Mini-PCIE slots, supporting SSD/WIFI/3G module, 1*PCI-E8X ,fiber module extensible, 1*CF
with 6* Intel® 82583V gigabit Ethernet , supports Wake on LAN, PXE and L256 programmable watchdog .
Features
Onboard Intel® Celeron 1037U dual-core 1.8 GHz processor
Using Intel® NM70 high-speed chipset
Support SO-DDRIII 1333/1066 DIMM memory, support the maximum memory of 8GB
6*Intel® 82583V gigabit Ethernet
2*SATAII ,1*CF , 1* MSATAIII
2*RS232, 1* LPT , 6* USB2.0
Specification
N70SL ----- 6 LAN 1037 Firewall Motherboard with 6 Ethernet
Model NO. |
N70SL VER:1.1 |
CPU |
Intel® 1037U dual core 22nm processor 1.8GHz TDP 17W |
Chipset |
Intel® NM70 Chipset |
Memory |
1* dual channel SO DDRIII 1333/1066MHz, Max. up to 8GB |
Graphics |
Intel® HD2500 Graphics, support VGA display output |
Expansion Slots |
1* PCI-E 8X, can be extended Optical interface module/Electrical interface module |
|
1* Mini-PCIE, support WIFI/3G , is alternative with PCI-E 8X when using |
LAN |
6* Intel® 82583V 10/100/1000Mbps Ethernet |
|
Support Wake-on-LAN and PXE function |
Storage |
2* SATAII 3Gbps |
|
1* CF card |
|
1* MSATA , support SSD/3G module |
Rear I/O |
1* COM(CISCO standard interface) |
|
2* USB 2.0 |
|
6* RJ-45 LAN |
|
1* POWER |
|
1* LED1(POWERLED/HDDLED) |
Internal I/O |
1* LAN_LED 2*13pin |
|
1* JVGA 2*5pin |
|
1* LPT |
|
1* RS232 |
|
1* PS/2 |
|
4* USB 2.0 |
|
1* FP1 (2*5pin Front panel buttons and LED connected) |
|
2* PWROUT (Hard drive power connector) |
Fan interface |
1* CPUFAN 4pin, 1* SYSFAN 3pin |
GPIO |
1* GPIO (Support 4-way GPIO function) |
BIOS |
AMI 16MB DPI Flash ROM |
Watchdog |
Support hardware reset function (L256, 0~255 seconds) |
Power Input |
DC_12V Single power supply |
Operating Temp. |
-10°C~ 60°C |
Storage Temp. |
-20°C~ 70°C |
Humidity |
5%-95%(relative humidity; non-condensing) |
Dimension |
220mm x 220mm |
