Manual Turning and Grinding Comperhensive Machine Tool
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1set |
Pay Type: |
L/C,T/T |

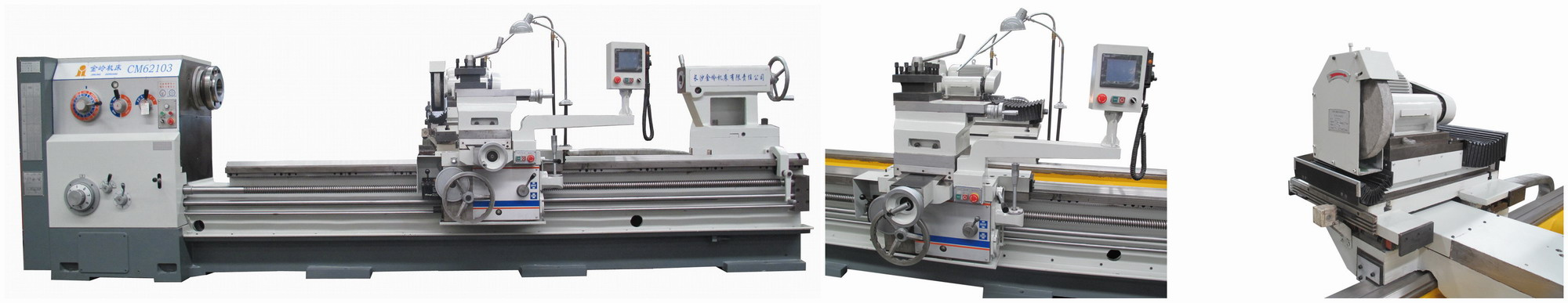

CM62103 turning and grinding compound machine tool CM62103-3000MM
Swing over bed 1030mm
Swing over cross slide 700mm
Distance between centers 3000mm
Max. Grinding diameter of work piece
Max. Turning length of work piece 2850mm
Spindle bore 105mm
Spindle speeds 10-800rmp / 18steps
Cross slide travel 615mm
Top rest travel 225mm
Grinding head feed travel(X2) 300mm
Grinding head feed travel(Z2) 280mm
Quill diameter 120mm
Quill travel 270mm
Quill taper MT6
Bed width 610mm
Main motor power 11KW
Items |
UNIT |
Spec./Model |
Max. Swing over bed |
mm |
1030 |
Max. Turning diameter of work piece |
mm |
700 |
Max. Grinding diameter of work piece |
mm |
500 |
Distance between centers |
mm |
3000 |
(Z1) Max. Turning length of work piece |
mm |
2850 |
(X1) Cross slide travel |
mm |
615 |
Max. Grinding length of work piece |
mm |
2500 |
Bed width |
mm |
610 |
Spindle speed |
r/min |
10~800 |
Spindle bore |
mm |
105 |
Swing over cross slide |
mm |
700 |
Top rest travel |
mm |
225 |
(X2) Grinding head feed travel(X2) |
mm |
300 |
(Z2) Grinding head feed travel(Z2) |
mm |
280 |
Quill diameter |
mm |
120 |
Quill travel |
mm |
270 |
Quill taper |
|
MT6 |
Main motor power |
kW |
11 |
Grinding head
Items |
UNIT |
Spec./Model
|
Grinding head spindle speed |
r/min |
2228 |
Grinding wheel Linear velocity |
m/s |
35 |
Grinding wheel size |
mm |
φ300×40×φ75 |
Grinding head motor power |
kW |
3 |
Prod Model: |
CM62103-3M |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Max. Load: |
2000kg |
Type: |
Horizontal Lathe |
Automatic Grade: |
Manual |
Precision: |
Precision |
Power Source: |
Hydraulic Pressure |
Setting Mode: |
Floor-type |
Controlling Mode: |
Maual |
Processing Accessory: |
Dis and Shaft Parts |
Tool Holder: |
One Square Turret |
Changsha Jinling Machine Tool Co., Ltd., reconstructured from the state-owned medium firm - Changsha No. 2 Machine Tool Plant - an lathe production plant designated by the former Machinery Ministry with 50 years of experience in machine tool production, is a private joint-stock high-tech enterprise approved by the Changsha People's Government in 2004. Located in No. 628, Lugu Avenue, Hexi, Changsha, Hunan, the company covers an area of 100 mu, the plant area of 30, 000 square meters with more than 500 various types of machining and inspection equipment. With total assets of over RMB 100 million, the company has a wholly owned subsidiary (Changsha Jinze Machinery Co., Ltd. ) and a holding company (Changsha Jinling CNC Grinder Co., Ltd. ).
Our main products are "Jinling"XK series CNC milling machines, XH series vertical machining centers, CKA, CKB, CKC, CKD Series CNC lathes, CW, CJ, CX, CS series horizontal lathes, GMKF series high-speed CNC profiling grinders, CK series CNC slant bed lathes, and JL series CNC piston lathes and others. Products not only are sold in the domestic markets, but also exported to more than 40 countries and regions such as the United States, Germany, Italy, South Africa, Indonesia, Pakistan, Vietnam, and Saudi Arabia. In 2002, the company passed the certification of ISO9001: 2000 Quality Managment System. In 2008, CW series obtained "CE" certification. Jinling products, thanks to excellent performance, high quality, and superior after-sales services, has been well-acclaimed by customers at home and abroad. In 2008, "Jinling" won the title of "Hunan Famous Brand".
