MB330 Explosion-Proof Pressure Transmitter (-0.1~60MPa) : for Hydraulic Pressure, Air Compressor and Pump

High Quality:
1. Turnkey Service
2. CE, ISO9001, RoHs
3. OEM Service
4. Accept small order

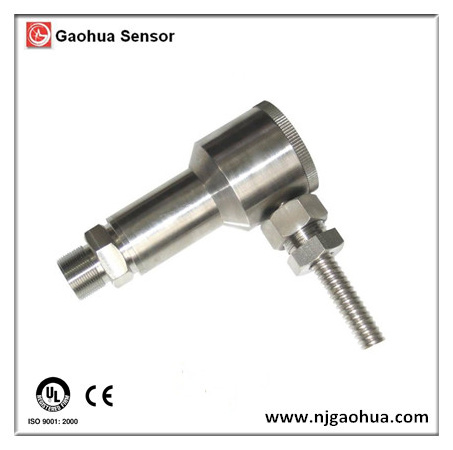

MB330 Explosion-proof Pressure Transmitter


Features
>Explosion-proof, mildewproof, moitureproof;
>High precision, anti-vibration, anti-jamming;
>Perfect long-term stability;
>Various output signal, accepting custom design.

Application
>Engineering machinery, Car
>Oil and Chemical industry
>Automatic checkout system
>Shipping, Railway transportation
>Wind power generation
>Supply heating, Medicine
>Hydraulic pressure, Air compressor and Pump

Introduction
MB330 Explosion-proof Pressure Transmitter is designed for explosion occasions pressure measurement. Exia II CT6, Exd II BT4 authorized. All-welded stainless steel construction. High strength and small volum, perfect anti-vibration, mildewproof & moitureproof designing.


Specification
> Pressure Type: Gauge pressure, Absolute pressure, Sealed gauge

> Measuring Medium: Liquid, gas, vapor, which are compatible with SUS304

> Pressure range(MPa): -0.1 1 1.6 6 10 20 40 60 or customized

> Pressure range (bar): -1 10 16 60 100 200 400 600 or customized

> Pressure range (psi): -14.5 300 700 900 2k 4k 8k or customized

> Overload range: 200%FS

> Bursting pressure: 300%FS

> Power Supply: (9~36)VDC, (9~36)VDC, (9~36)VDC

> Output signal: (0~5)V, (1~5)V, (4~20)mA

> Transmitting: 2-wires, 3-wires, 3-wires,

> Load: ≤ (U-15)/0.02Ω , >100k, >100k

> Vibration: 10~500Hz 25g

> Shock resistance: 50g 11ms

> Accuracy: ± 0.5%FS(typ. ) @25º C

> Zero temp. Drift: ± 0.03%FS/º C

> FS temp. Drift: ± 0.03%FS/º C

> Long-term stability: ± 0.2%FS/Y

> Insulation resistance: 250 MΩ /250V, 100MΩ /250V

> Medium temp.: (-40~125)º C

> Ambient temp.: (-40~85)º C

> Storage temp.: (-40~125)º C

> Compensated temp.: (-10~80)º C

> Housing: SUS304

> Diaphragm: SS316L

> O-ring: Viton

> Protection: IP67


Order Note
1. It is recommended that the sensor should be installed as Suspended Mode to avoid face tight press and avoid affecting sensor stability.

2. Please pay attention to protect the diaphragm to prevent any damage or bad performance.

3. If the working temperature of Viton rubber exceeds the temperature of the rubber specification or be applied in critical environment, please contact us.

4. The material of measuring medium should be compatible with the stainless steel. If it is corrosive, pls specify its material in detail.

5. All specifications are subject to change. Contact Gaohua for specifications and engineering drawings that are critical to your application. Drawings contained in this document are for reference only.


Order flow chart
A) Inquiry ----Please tell us the specification you need.
B) Determine the parameters ----- Do or can not do.
C) Sample -----If we can do them, we will send the sample to you, but freight is born by you.
D) Sample time ---we will arrange the samples in 1-3 working days.
E) Express way ----UPS, DHL, FedEx, EMS and so on, please tell us the express way you need.



Why Choose Gaohua?
1. Our company has more than 10 years experience in the line of Sensor.
2. Absolutely prompt delivery time.
3. OEM/ODM Best Choice.


How to Order?
1. Please tell us the model, quantity and other request.
2. Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3. Confirm and ship the goods, then tracking number will be sent by email.
4. We will help to track your goods until you receive them safely.
