Product Specifications
| Prod Model: |
ITX-MD9000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Integrated Graphics: |
Integrated Graphics |
| Main Chipset: |
Intel |
| Structure: |
Mini-ITX |
| Memory: |
DDR2 |
Product Description

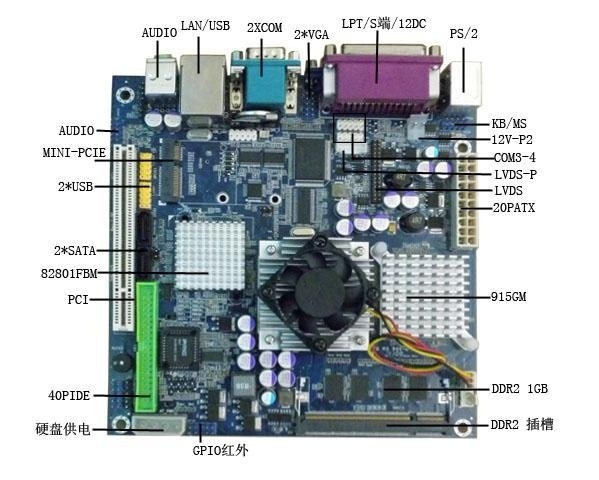

1. Mini-ITX Motherboard
2. VGA+LVDS/TV dual view
3. Realtek ALC662 supporting MIC-in and LINE-out
4. Realtek 8111E 100/1000M
1. It's the latest evolution of 6.7" inch form factor industrial Motherboard developed by FOX.
2. It is based on Intel Atom 915GM+ICH6M chipset supporting onboard Intel Celeron/Pentium-M processor.
3. It provides onboard RAM 1 GB, 1 LVDS interface and 1 VGA port, AV port.
4. It supports independent Dual view, SATA, IDE and M_SATA storage modes.
|
Motherboard Type |
170x170mm, 6.7" |
|
Processor |
Intel CM/PM 1.1G processor |
|
System Memory |
Integrated RAM, 1G onboard |
|
Chipset |
915GM+ICH6M |
|
I/O Chip |
Winbond W83627HG-AW |
|
Ethernet |
Realtel 8111E |
|
BIOS |
4M AWARD BIOS |
|
Wake-on-LAN |
yes |
|
Watchdog |
Trigger a system reset when the timer overflows |
|
H/W Status Monitoring |
Monitor the state of voltage, temperature and rotational speed of the fan |
|
Expansion Interface |
1xPCI, 1xMini-PCIE, 1xSIM card slot, Support WIFI/3G |
|
Battery |
Lithium battery |
|
Power Supply |
+12V single power supply |
|
Operating Temperature |
0° C-60° C |
|
Storage Temperature |
(-40° C) ~ 80° C |
|
Operating Relative Humidity |
0%~90% (non-condensation) |
|
Controller |
GMA900 integrated with Intel 915GM |
|
Video Memory |
GMA900 dynamic sharing with system memory, support up to 128MB |
|
Resolution |
CRT supports up to 2048x1536x32 bpp@85 Hz |
|
LVDS support up to 1440× 900× 32bpp@60 Hz |
|
CRT |
1xVGA |
|
LCD |
1x LVDS(24 bit), UP to1440x900 |
|
TV-out |
1x AV (TV) |
|
Multi-Display |
VGA+LVDS or AV |
|
Storage |
1xSATA, 1xM_SATA |
|
Serial Port |
5xRS232, 1*RS485 |
|
Parallel Port |
1 x LPT |
|
USB |
8 x USB |
|
Keyboard & Mouse |
PS/2 KB/MS |
|
Audio |
Realtek ALC662 supporting MIC-in, LINE-out |
