| Price: | US $ 105-115/Piece |
|---|---|
| Trade Terms: | FOB,EXW |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union,Paypal |
Suitable for | AD Player;ultrathin AIO machine; Monitoring System; HTPC;VOD; IPC; POS etc. |

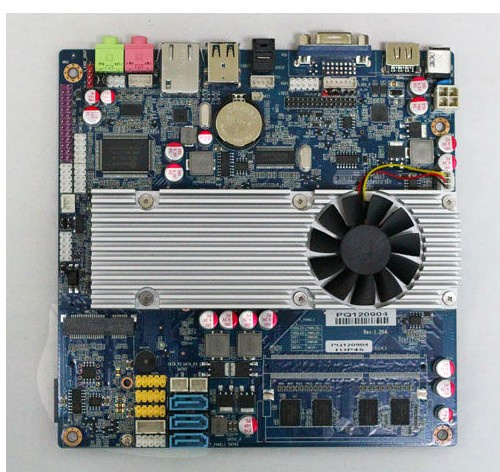

Form Factor | Mini ITX 17cm×17cm |
Chipset Manufacturer | Intel |
CPU | Support Intel Core™ Solo/Duo 45NM series CPU |
FSB | 800MHZ |
Chipset | Intel® GM45+ ICH9M-E chipset |
L2 Cache | 2/4/6/8MB, CPU integrated |
BIOS | Award 8MB DIP Flash ROM |
RAM | 1*SO-DIMM socket maximum 6GB( onboard CPU with onboard 2GB memory ) |
Integrated Graphics | INTEL® GMA X4500M HD Graphics Core |
Sound | Onboard HD ALC662 chipset,provide 6 channels output,onboard power amplifier. |
Network | 2*Realtek RTL8111EL PCI-E Gigabit Ethernet LAN,support RTL/PXE diskless booting |
LVDS | Support 24bit dual channel LVDS connector |
USB | 4*USB 2.0/1.1(2 external;2 expansion header) |
Expansion Sockets | 1*Mini SATA socket; 1*Mini-PCIE socket for WIFI;1*SIM card slot for 3G; 3*SATA |
Rear panel I/O | 1*12V -DC power supply |
1*HDMI | |
1*DVI-I | |
1*S/PDIF | |
2*USB 2.0/1.1 port | |
1*1000M RJ45 port | |
2*Audio I/O interfaces(Line_out,Mic_in) | |
Internal I/O | 1*30pin LVDS |
2*USB 2.0/1.1 expansion header | |
1*1000M RJ45 expansion header | |
2*Audio I/O expansion header( Line in,Line out,Mic) | |
2*COM RS232 expansion headers | |
1*GPIO expansion header(8 group) | |
1*VGA expamsion header | |
1*LPT expansion header | |
2*TV output expansion headers(AV/S) | |
1*Audio power amplifier | |
Power Interface | 12V-DC |
Power Consumption | 30W |
Working Temperature | -20°C~70°C (-4°F~158°F) |
Storage Temperature | -20°C~80°C (-4°F~176° ) |
Operating Humidity | 10%~90% (non-condensing) |
| Prod Model: | TOP45 M9 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bois: | Award 8MB DIP Flash ROM |
| L2 Cache: | 1MB, CPU Integrated |
| RAM: | Onboard DDR3 2GB+(So-DIMM Socket Max 4GB Optional) |
| Sound Card: | Onboard HD Alc662 Chipset |
| Storage: | SATA;Msata |
| USB: | 4*USB 2.0/1.1(2 External;2 Expansion Header) |
| COM: | 2*COM Expansion Headers |
| Network: | 1* Gigabit Ethernet RJ45 Port |
| Power Supply: | 12V-DC/ATX-4pin |
| CPU: | Support Intel Core Solo Duo 45nm Series |
| Integrated Graphics: | Integrated Graphics |
| Main Chipset: | Intel |
| Maximum Memory Capacity: | 8G |
| Structure: | Mini-ITX |
| Memory: | DDR3 |
| SATA Interface: | SATA2.0 |
| Printed Circuit Board: | Four Layers |
| Main Board Structure: | Integrated |
| Audio Effects: | Not HiFi |
| CPU Socket: | Fcbga559 |
