Mini Plastic Shell Plug in Automotive Electromagnetic Relay with CE

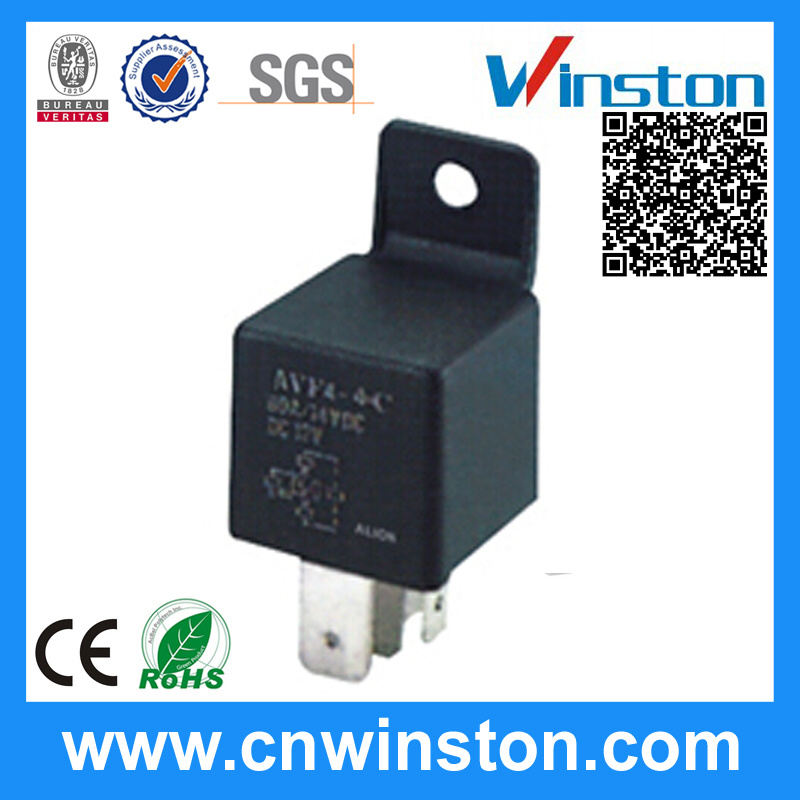

Name: Mini Plastic Shell Plug in Automotive Electromagnetic Relay with CE
Brand: china-manufacturer-directory.com
SKU: 771598685
Availability: InStock
Rating: 5 (72 reviews)

Price:	US $ 0.8-2.6/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	AVF4-4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Brand:	Winston
Contact Form:	1h 1z 1u
Contact Capacity:	25A 80A
Weight:	48g
Dimensions(mm):	292926.5
Mounting Form:	Screw Mounting & Socket
Ambient Temperature:	-40~+85 Degree
Manufacturer:	OEM
Condition:	Original New

Product Description

Specifications:

-Heavy contact load
-1 form A,1 form B 1 form C&2 form Acontact
-arrangement available
-Suitable for automobile and lampaccessories application
-Outline dimension:29.0*29.0*26.5(+16.0)mm

Technical parameters

Item			AVF4-4
Contact	Rating		NO:60A/14VDC NC:50A/14VDC
	Arrangement		1A,1B,1C,2A,1U
	Material		Silver Alloy
	Resistance (Initial)		Maximum 50 mΩ
Coil	Coil voltage		6V,12V,24V
	normal power		1.7w
Performance	Electrical life		100,000 ops
	Mechanical Life		10,000,000 ops
	Operate time		10ms
	Release time		5ms
	Dielectric strength		500VAC
	Initial insulation resistance		100MΩ
	Dielectric strength	BOC	500V
		BCC	500V
Dimensions and Mounting	L×W×H		29×29×26.5(+16)
	Termination		Inserting
	Unit weight		48g
other	Ambient temperature		-40°C~85°C
	Cross Reference		TYCO; VF4; HELLA; MATSUSHITA CB; SIMENS; BOSCH

PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

Our Services

1. Prompt reply: Any inquiry or questions would be replied within 24 hours.

2. Quality Product: Manufacture company, each of the products is tested and calibrated.

3. Hospitality: Offer smiling service and your visiting is highly welcomed

4. Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.

Trade Information

Trade Terms	FOB ,CIF ,CFR,EXW,DDP
Payment terms	T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions	30% deposit in advance,70% balance before shipping.
Delivery time	3-7working days after deposit,2-4 working days for inventory
Packing	Neutral carton,Wooden case for large size
Shipping	By sea,by air and by express delivery
Payment conditions	30% deposit in advance,70% balance before shipping.
Delivery time	3-7working days after deposit,2-4 working days for inventory
Packing	Neutral carton,Wooden case for large size
Shipping	By sea,by air and by express delivery

Yueqing Winston Electric Co., Ltd.Is not only an exporting company, but also a professional manufacturer in China.We have our own production base.The products we professionally deal with are switching power supplies, sensors, relays, voltage stabilizers, AC contactors, circuit breakers, distribution boxes, industrial plugs & sockets and others.Since we are a manufacturer & exporter, we are sure that we can best support our customers with high quality products and the most competitive prices.

Our company is located in Wenzhou - the Electric Capital of China.We specialize in developing, manufacturing and distributing low voltage & high voltage electrical products.

We are an ISO9001:2000 certified company.We have obtained many certificates, such as CCC, CE, CB, GS and RoHS.Stability, expertise and technological innovation are the core stones of our business strategy.

Aiming at reliable product quality and the highest customer satisfaction, we are consistently deepening enterprise inner reform and fully carry out a quality guarantee system.With special cultivation of employees, high investment on production facilities and R&D as well as a wide range of products, we advocate "technology innovation, business honesty and trust and quality first" as our basic principle, trying to develop into a world-class electrical manufacturer with constant efforts.
