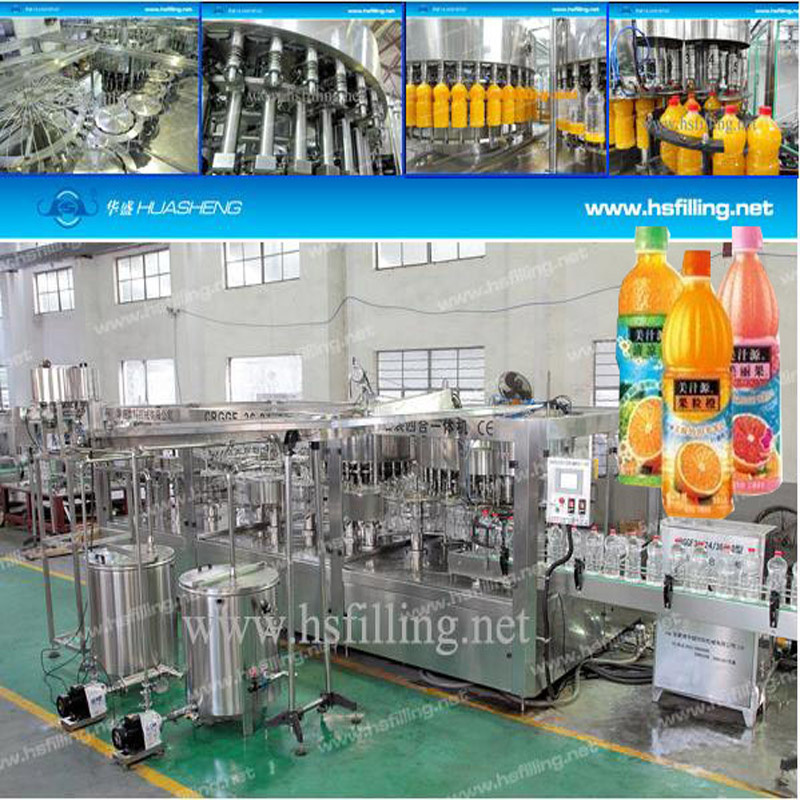

Monoblock Automatic Beverage Filling Machine
Price: |
US $ 28000/Piece |
Trade Terms: |
FOB |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Product Specifications
Prod Model: |
HS-Filling |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Bottle Size: |
200ml-2500ml |
Filling Capacity: |
3000-20000bph |
Bottle Material: |
PE Pet Bottle, Glass Bottle |
Control: |
PLC |
Filler Material: |
Hot Juice, Juice with Rainy, Flesh Juice, Hot Juic |
Composition: |
Filling Machine |
Process: |
Frozen and Chilled |
Processing Material: |
Natural Ingredients |
Product Description
Filling machine
3 in 1 filling machine
Juice filling machine
Ice tea filling machine
Hot filling machine
Beverage filling machine
Juice filling machine technical features:
1, Full hot filling machine is to avoid the bottle from sinking after the bottle cooling off, and to decrease the dissolved oxygen to the utmost extent.
2, Reasonable structured storage hopper and material supply system keep the material in the constant flow speed, constant pressure and without frothing. Usually high position tank is adopted.
3, The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.
4, Sanitary hot filling head system is of umbrella structure, high filling speed.
5, Perfect filling temperature control system.
6, Return tank system has the function of supplying the material automatically.
7, Perfect CIP system.
Model |
Number of washing filling and capping |
Production capacity
Bottle per hour(0.5L) |
Applicable bottle specifications (mm) |
Power(kw) |
Dimension(mm) |
RCGF14/12/5 |
14, 12, 5 |
2000-3000 |
0.25L-2L
50-108 mm
H=170-340mm |
3.58 |
2100x1400x2500 |
RCGF18/18/6 |
18, 18, 6 |
4000-6000 |
7.61 |
2460x1720x2650 |
RCGF24/24/8 |
24, 24, 8 |
6000-8000 |
8.2 |
3100x2100x2650 |
RCGF32/32/8 |
32, 32, 8 |
10000-12000 |
9.18 |
3500x2500x2650 |
RCGF40/40/10 |
40, 40, 10 |
13000-15000 |
10.28 |
4600x1800x2650 |
RCGF50/50/12 |
50, 50, 12 |
16000-18000 |
11.28 |
5200x4500x3400 |
RCGF60/60/15 |
60, 60, 15 |
20000-22000 |
11.28 |
6500x4500x3400 |
Zhangjiagang Beverage Machinery Co., Ltd was founded in Sept., 1994. Our company is located in Leyu Economic Development Zone of Zhangjiagang City, about 180km from Shanghai Pudong International Airport (Google Position), convenient transportation; Company covers an area of about 4, 000 square meters, with more than 60 employees, We are mainly engaged in manufacturing the bottling and packaging equipments of various liquid food and beverage. Company integrates machine design, making, sales and after sales service.
Our products scope as below:
PET bottle filling machine
Water filling machine
Juice filling machine
Beverage filling machine
Soft drink filling machine
Alcohol filling machine
Oil filling machine
Other bottle filling machine
Labeling machine, wrap packing machine, water treatment system, and some auxiliarys.
We gained rich experience on carbonated drink, juice beverage, as well as glass bottle beverage, alcohol etc. filling technology, and own several patented technologies. In China, we have many customers in almost every province and city, and has a good reputation in. Currently, near 40% of our orders from our registered customers, that's the reason we still remain stable development even in the downturn global economic.
We began to run our own export business from 2010, machines have been exported to American, Canada, Bolivia, Chile, Columbia, Guatemala, Russia, Britain, Slovakia, Sri Lanka, Indonesia, Cambodia, Malaysia, Algeria, Egypt, Zambia, South Africa and other countries.
We'll supply you professional suggestion, good quality machines and professional services, to push our clients to create the greatest economic benefits.
We are trying to do better in this field, also sincerely hope that we could build good cooperation relations with more beverage manufacturers.
Services we provided:
Free technical consultation, Investment budget;
Customized high-quality equipment, Whole Production Plant layout;
Comprehensive after-sales service, Machine installation and Commissioning, training workers to learn how to operate and maintain the equipment, supply customers needed accessories in time.
