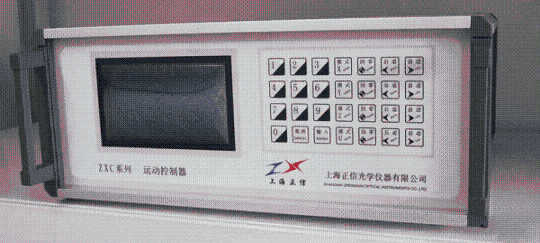

Product Specifications
| Prod Model: |
ZXC(100-400) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Feature
1) Be able to control each step motor separately; 4 axis control
2) 2 Axis Circular interpolation; Multi-Axis Linear Interpolation; 3 Axis linkage
3) Curvilinear and Trapezoidal motion
4) 3 kinds of measurement units 1) Impulse 2) Angle 3) Millimeter
5) Closed loop control with all 4 Axes
6) Be able to set any position as initial point
7) Be able to set initial speed, constant speed, acceleration for each axis separately
8) Automatical clearance compensation to improve motion precision
9) Step and incremental motion system
10) LCD Display
11) Flexible RS232 communication protocol
|
Technical Parameter |
|
1) Power supply 220V/50Hz |
|
2) 4 Axis control |
|
3) Two phase step motor, 3.5A |
|
4) Subdivision: 24, 8, 16, 32, 64, 128 |
|
5) Maximum Impulse Speed: 100Kpps |
|
6) RS232 port |
|
7) Accelerating/Decelerating mode: Triangle or Trapezoid |
|
8) Grating coding port: TTL |
|
9) Temperateur range: -40 Celsius degree~+70 Celsius degree |
|
10) Action power: ± 5V ± 5% |
