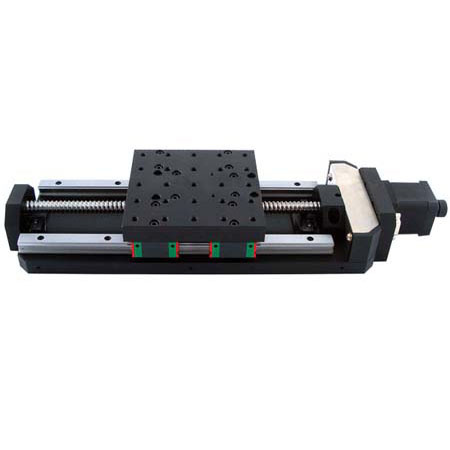

Feature
1) Equipped with step motor and standard RS232 port, working with ZXC motion controller to achieve automatic control
2) Driven by high quality ball screw, good repeatability and positioning accuracy; Little end play and long lifetime
3) Anti-loosing and Anti-end play structure, very suiltable for high speed reciprocating motion
4) Adopt high precision linear slider guide, smooth motion and heavy load capacity, suitable for single axis heavy duty or multi-axis use
5) Fine grinded base and scientific guide fixing method minimize the yaw and pitch of the stage
6) Step motor and ball screw connected with high quality elastic coupler to minimize off-center perturbation motion and noise
7) Equipped with Handwheel, easy for debugging
8) Zero position switch and limit switch at both ends for accurate positioning and the product itself protection
9) The base has threaded holes and thru holes, easy for installation
10) Servo-motor and grating ruler can be used for close loop control to achieve high speed heavy duty
| Model | ZXT050MA06 | ZXT100MA06 | ZXT150MA06 | ZXT200MA06 | ZXT300MA06 | ZXT400MA06 | ZXT500MA06 |
| Travel Distance | 50mm | 100mm | 150mm | 200mm | 300mm | 400mm | 500mm |
| Table Size | 120x120mm | 160x160mm |
| Screw Pitch | 4mm | 5mm |
| Resolution | 0.0025mm | 0.0025mm | 0.003125mm |
| Maximum Speed | 40mm/sec | 60mm/sec |
| Repeatability | < 0.005mm |
| Axial Clearance | < 0.03mm |
| Standard Motor | 42 Step Motor (1.8° ) | 42 Step Motor (1.8° ) | 57 Step Motor (1.8° ) |
| Max Static Torque | 0.4Nm | 1.2Nm |
| Rated Current | 1.7A | 2.8A |
| Central Load | 20kg | 30kg | 50kg |
| Weight | 2.8kg | 3.2kg | 4.5kg | 5.2kg | 6.3kg | 7.2kg | 8.3kg |
