Product Specifications
Prod Model: |
WC67Y |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color And Voltage: |
According to Customer's Request |
Certificate: |
ISO&CE |
Processed Material: |
Carbon Steel, Stainless Steel, Alloy |
Raw Material: |
Cast Iron, Steel |
Application: |
Machinery & Hardware |
Product Description

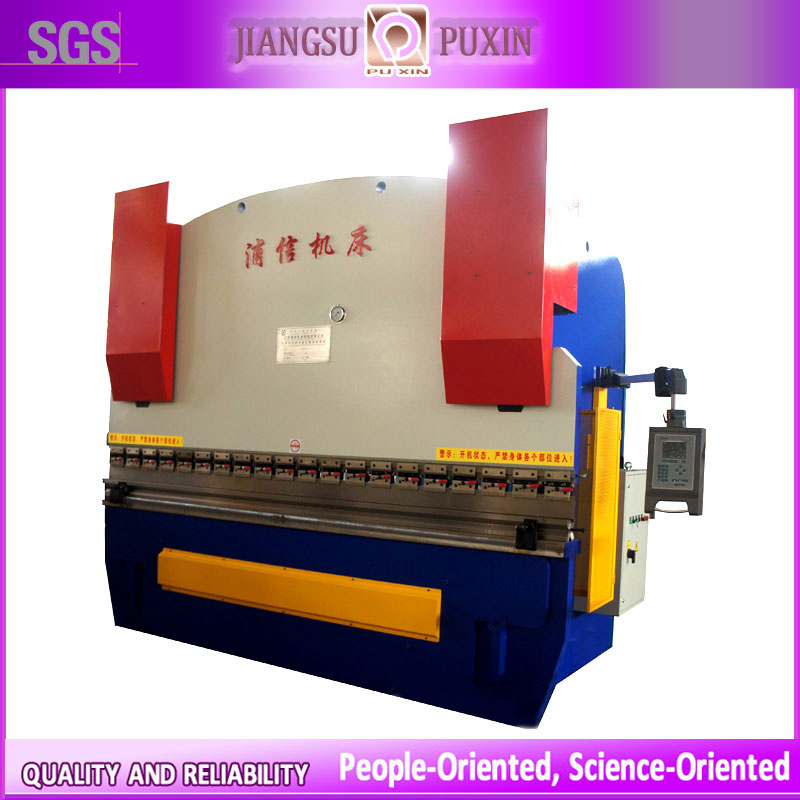

Press Brake/Hydraulic Press Brake/CNC Press Brake/Bending Machinery/CNC Bending Machine (WC67Y) or (WC67K):
1. Pass ISO9001: 2000, CE
2. BOSCH Manifolds from German
3. The inward seal components with high quality
4. Three hydro-cylinder structure
5. Electronic circuits and motors:
ABB motor, Germany Siemens or schneider electric
Our bending machines possess special structure, which different from other factories. So that make sure its high-performance!
It not only possesses advantages of common press brakes, but also much high precision of position and bending.
Our hydraulic press brake(bending machine), which have been sent to Australia, are all equipped with ABB motor, ATOS pump valve of Italy, and Schneider Electric's appliances. Before the installation, we will provide two solutions for customers' choices, respectively adopted different configurations of world brand products and Chinese famous brand products. We make sure the quality, and satisfy the clients with comprehensive after-sales service.
6. Hydraulic Plate Bending WC67Y/K Series is equipped with three oil cylinders to ensure the better bending effect compared with other peer.
7. The three hydro-cylinder structure machine employs power adjusting devices for the RAM stroke and a back gauge with a manual fine adjusting mechanism, besides it has a counter displaying the number.
8. What is more the press brake machine also owns an adjusting device of upper tool wedge clamping on the top of upper tool to ensure the precise of bending. We can also equip it with numerical control according to the customer demand.
9. We also have another type WE67K for your choice, which is a type of Electro-hydraulic Synchronized CNC Press Brake. Any thing about press brake, kindly pls consult us.
Press Brake/Hydraulic Press Brake/CNC Press Brake/Bending Machine/Shearing Machine.
Model: WC67Y- |
40/2000 |
40/2500 |
63/1600 |
63/2500 |
100/3200 |
100/4000 |
125/3200 |
Nominal pressure of machine( KN) |
400 |
400 |
630 |
630 |
1000 |
1000 |
1250 |
Length of working table(mm) |
2000 |
2500 |
1600 |
2500 |
3200 |
4000 |
3200 |
Distance between horsing(mm) |
1640 |
2050 |
1340 |
2050 |
2600 |
3300 |
2600 |
Throat depth(mm) |
200 |
200 |
200 |
250 |
320 |
320 |
320 |
Ram stroke (mm) |
100 |
150 |
100 |
100 |
150 |
150 |
150 |
Max. open height between working table and ram(mm) |
360 |
360 |
360 |
360 |
410 |
415 |
415 |
Power of main motor(KW) |
4 |
5.5 |
5.5 |
5.5 |
7.5 |
7.5 |
7.5 |
|
L(mm) |
2060 |
2600 |
1700 |
2600 |
3260 |
4060 |
3280 |
|
Overall dimensions |
|
|
W(mm) |
1500 |
1500 |
1500 |
1735 |
1753 |
1340 |
1300 |
|
|
H(mm) |
2050 |
2050 |
2010 |
2350 |
2500 |
2500 |
2600 |
|
Weight of machine(Kg) |
3300 |
3500 |
3000 |
4220 |
8000 |
10000 |
19000 |
|
Model: WC67Y- |
160/3200 |
160/4000 |
200/4000 |
200/6000 |
250/4000 |
320/4000 |
- |
Nominal pressure of machine( KN) |
1600 |
1600 |
2000 |
2000 |
2500 |
3200 |
- |
Length of working table(mm) |
3200 |
4000 |
4000 |
6000 |
4000 |
4000 |
- |
Distance between horsing(mm) |
2600 |
3300 |
3300 |
5100 |
3300 |
3300 |
- |
Throat depth(mm) |
320 |
320 |
320 |
400 |
320 |
400 |
- |
Ram stroke (mm) |
200 |
200 |
200 |
200 |
200 |
250 |
- |
Max. open height between working table and ram(mm) |
465 |
465 |
465 |
465 |
465 |
560 |
- |
Power of main motor(KW) |
11 |
11 |
15 |
15 |
15 |
22 |
- |
Overall dimensions |
L(mm) |
3260 |
4060 |
4060 |
6100 |
4060 |
4060 |
- |
|
|
W(mm) |
1930 |
1930 |
1930 |
1950 |
2340 |
2570 |
- |
|
|
H(mm) |
2800 |
2800 |
2800 |
2900 |
3200 |
3560 |
- |
|
Weight of machine(Kg) |
10500 |
14000 |
15000 |
25000 |
21000 |
24500 |
- |
We are a hi-tech enterprise in Jingjiang. We are mainly specialized in the research and development of kinds of metal workers.
Products Include: Iron worker, hydraulic iron worker, electro-hydraulic synchronized CNC press brake, hydraulic punching, hydraulic press brake, bending machine, hydraulic shear, hydraulic shearing machine, hydraulic cutting machine, hydraulic swing beam shear, hydraulic guillotine shearing machine, autofeed hydraulic shear, hydraulic shear with pneumatic support device
Our ironworers, which have been sent to Australia, are all equipped with ATOS pump valve of Italy, and Electric's appliances. Before the installation, we will provide two solutions for customers' choices, respectively adopted different configurations of world brand products and Chinese famous brand products. We make sure the quality, and satisfy the clients with comprehensive after-sales service.
Jiangsu Puxin Machinery Manufacturing Co. Ltd is the production of various types of forging press machines and equipment professional firm, the company passed the ISO9001: 2000 quality system certificatian and export of electromechanical products through a national license certification and CE certification.
Company has first-class professional and technical personnel, strong technical skills, complete testing means. Our long-term accumulated experience and lessons to broad areas of advanced technology to constantly adjust product structure, to market the most sophisticated forging machinery. Selling products, a large number of exported to Europe, the Middle East and Southeast Asia, has long been Chinese and foreign custmers alike.
Each of the company manufacturing parts for each machine in a safe, functional, maintenance, and performance in line with the highest quality requirements, its design based on use of human and machine control based on the quality and reliability is our top priority. The company will adhere to the people-oriented, science as a precursor to new business ideas, science service, customers return to the company, and our aim is to"honesty, quality first. "with yhe company's products, you will have the strength and the future!
