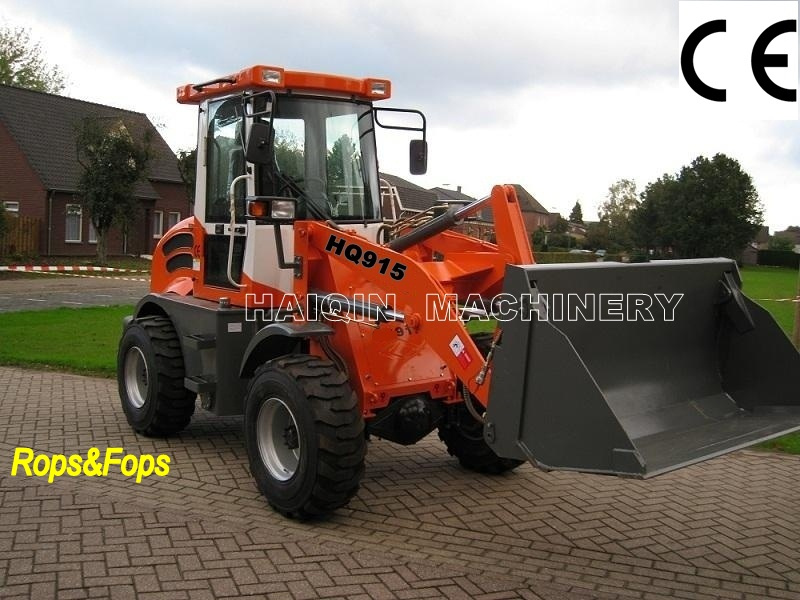

Wheel Loader ( HQ915) Product Description:
(1) Rops and Fops (The cabin made by Double-layer 1.2 mm steel plate, with strong steel frames inside ) for option .
(2) E4 approved glass with EU certification.
(3) Whloe Hydraulic Driving
(4) Wheel loader with CE Certificate
(5) Euro III Engine
(6) Multi-function
(7) Joystick operation
(8) Quick Hitch ( Or Europe quick hitch )
Specifications of HQ915 wheel loader : |
| 1,Engine Details |
| Model: | XINCHAI 498BT ( Euro III and EPA ) |
| Engine type: | In-line arrangement, water-cooled, four-cycle diesel Engine |
| Rated Power: | 37kw |
| Rated Speed: | 2400 r/p. Min (rpm) |
| Fuel Consumption ratio in standard working condition: | 230g/kw. H |
|
| 2,Transmission System |
| Type: | Fixed-spindle Power shift |
| Shift gear control oil pressure: | 1.2~1.5MPa |
| Rated input speed: | 2500 (rpm) |
|
|
| 3,Bucket |
| Bucket Capacity: | 0.8m3 |
| Bucket width: | 1800mm |
| Bucket type: | Heavy-duty bolt on teeth |
| Max. Breakout Force: | 45KN |
| Rated Load: | 1500kg |
| Operating Weight: | 3600kg |
|
| 4,Overall Dimensions |
| Overall Length (Bucket on ground position): | 4900mm |
| Overall Height : |
|
| (a) Ground to Cab Top: | 2720mm |
| (b) Dumping Height: | 2650mm |
| (c) Overall Width: | 1750mm |
|
|
| 5, Operating Specifications |
| Steering System: | Articulated Frame with hydraulic power steering |
|
| Min Turning Radius: | 4400mm |
| Driving System: | Hydraulic converter |
|
|
| 6,Brake System |
| Service Brake: | Four Wheel Hydraulic spread-shoed brake |
| Parking Brake: | Hand operated |
|
|
| 7,Tyre |
|
| Model: | 12-16.5 / 14-17.5 |
|
|
| 8,Wheelbase : | 1950mm |
|
|
| 9,Track: | 1400mm |
Since 2002, Weifang HainQin Machinery started to work hard and manufacture every kinds of good quality wheel loaders, backhoe loaders, wheel dumpers etc for our customers. Our wheel loaders got CE certificate, ROPS & FOPS Certificate, with E4 standard glass, USA steering system etc. Now our loaders exported to more than 30 countries, and gained high evaluation from our customers.
" Quality first " Is always the rule of Haiqin Machinery. From the parts purchase, production management, machine testing, delivery of shipment etc, all have professional and technical personnel to inspect. This will ensure that each machine of high quality!
" Quick after sales service" is also very important. We have professional technical personnel for technical service and spare parts warehouse for supplying spare parts service. Now we cooperated with DHL/FedEx, and can send the parts to the customers adress in 4 or 5 days!
"Technical research and innovation", We have to keep up with the pace of the international engineering machinery development. Every year, there are 40% of the total profit put into technical research and innovation. This will always enable us to keep the leading position in the construcion machinery field.
We hope to cooperate with the friends from all over the world and make mutual benefits!
