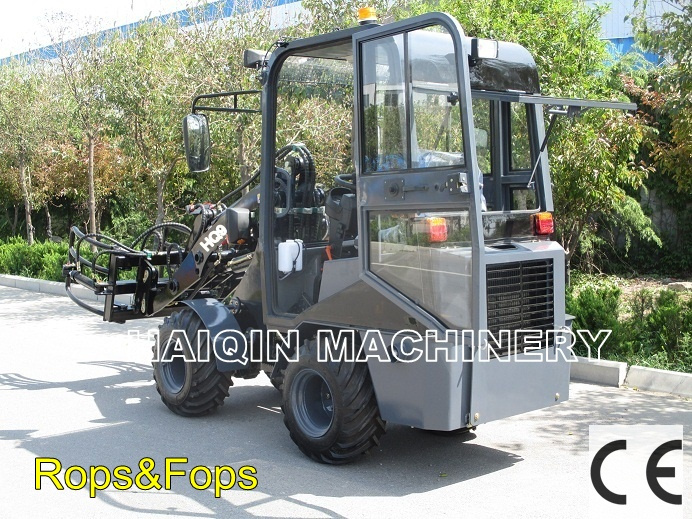

1. Technical parameters of HQ908 Mini Loader:
(1) Perkins 403D-11 engine(Euro 3)-----Made in Britain.
(2)Propel pump, variable pump: Heron-----Made in Italy.
(3) Working pump, gear pump: SALAMI-----Made in Italy
(4)Operating valve, hydraulic control------Made in Italy
(5) Hydraulic steering unit: White-------Made in USA.
(6) Electric center unit: HED----------Made in USA.
(7) Enhanced working device.
(8) High-quality cooling system.
(9) Agricultural 26*12-12 wider tyre and standard bucket.
(10) Hydraulic Quick hitch
Standard configuration:
Original Perkins Euroiii Engine, Original Italy Hydrostatic System, American Steering Pump, E-Mark, Standard Bucket, Hydraulic Quick Hitch, High quality Seat, Adjustable Steering Wheel, 220 V Engine Heater, Lock for Lifting and Steering Cylinder, Tipping Cabin, Floating, Electric Joystick, Disc-Brake, LED Working Light, Easy damaged Spare Parts, English operation manual etc.
Optional configuration:
Cabin, Varta Anti-free Battery, E4 Light, Extra Hydraulic Line, Agricultural Tyre etc.
2, Haiqin Machinery is a professional manufacture and supplier of every kinds of mini loader, wheel loader, farm machinery, agricultural machinery in China. All of our machines get CE, SGS, Rops&Fops certificate. Now our machines can be found working in more than 30 countries, like Sweden, Germany, Finland, Norway, Denmark, Poland, Australia, Canada etc.
· Delivery time: 20-25 days after deposit.
· Payment term: T/T 30% in advance.
· Packing: 3 units in one 20 container. Triangle wood and 10mm wire fixed.
· Warranty time: 15 months, We have spare parts service center in Germany and Sweden.
· Min order: 1 unit
. Contact Us--Service for you in 24 hours!
| Engine | model | Perkins 403D-11 or Kipor KD388 |
| type | 3 cylinder, watercooled |
| rated power | 18.5kw |
| rated speed | 2800r/min |
| displacement | 1.1L |
| max.torque | 67Nm |
| Performance | drive pump type | closed piston pump |
| total weight | 1490kg |
| Tipping loads in bucket(kg) |
| lift frame horizontal/machine stright | 850 |
| lift frame horizontal/machine articulated | 550 |
| rated bucket capacity | 0.35M3 - 0.5 M3 |
| overall size | 3650×950/1110×2250mm |
| travel speed | 0-12km/h |
| max.breakout force | 12Kn |
| battery | 43Ah |
| rated voltage | 12v |
| steering type | articulated hydraulic steering |
| drive system | hydrostatic motor |
| drive type | 4 wheel drive(4WD) |
| transmission model | HST |
| transmission type | CVT |
| drive axle model | hydrostatic drive axle |
| max.grade ability | 20° |
| optional tyre | 7.00-12 |
| 26×12.00-12 or 27*8.5-15 |
| fuel tank capacity | 32L |
| hydraulic oil tank capacity | 40L
|
Since 2002, Weifang HainQin Machinery started to work hard and manufacture every kinds of good quality wheel loaders, backhoe loaders, wheel dumpers etc for our customers. Our wheel loaders got CE certificate, ROPS & FOPS Certificate, with E4 standard glass, USA steering system etc. Now our loaders exported to more than 30 countries, and gained high evaluation from our customers.
" Quality first " Is always the rule of Haiqin Machinery. From the parts purchase, production management, machine testing, delivery of shipment etc, all have professional and technical personnel to inspect. This will ensure that each machine of high quality!
" Quick after sales service" is also very important. We have professional technical personnel for technical service and spare parts warehouse for supplying spare parts service. Now we cooperated with DHL/FedEx, and can send the parts to the customers adress in 4 or 5 days!
"Technical research and innovation", We have to keep up with the pace of the international engineering machinery development. Every year, there are 40% of the total profit put into technical research and innovation. This will always enable us to keep the leading position in the construcion machinery field.
We hope to cooperate with the friends from all over the world and make mutual benefits!
