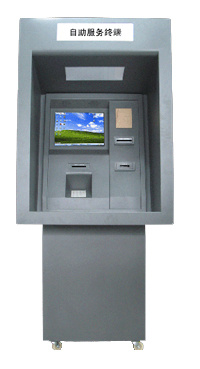

Multifunction ATM Banking Terminal with Metal Keyboard

Multifunction ATM Banking Terminal With Metal Keyboard

FUNCTIONALITIES:
* 24 Hours A Day, 7 Days A Week Sustainable
* 4mm Tempered Touchscreen(6mm optional)
* Vandal-Proof TDES Metal PINPad
* CASHCODE Bill Validator
* Thermal and Dot-matrix Printer
* Magstripe/IC Card Reader
* RFID Card Reader
* UPS Backup Power Supply

DESCRIPTION: Customizable All-Steel Sturdy Multifunction Kiosk with Touchscreen and Wireless Internet Access.

APPLICATION: This kiosk is mainly targeted for use for unsupervised or semi-supervised positions of varied selfservice points: Retail, finance, hospitality, tourism, health care, government, gaming/entertainment, hospitals, restaurants, financial services, wireless access applications, internet terminals, information kiosks, ticket vending machinery, cash machinery (ATMs), Internet public phones at shopping malls, universities, hotels, airports, gas stations, railway stations and other public areas.

MAIN FEATURES
* Imposing all steel design, specially designed kiosks meet the highest demands with regard to design, functionality, longevity and high protection level. We design and manufacture complete functionality modules including controller in close consultation with our customers.
* All steel fascia and enhanced structure guard wilful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
* Waterproof execution is sealed against the ingress or liquid and dirt.
* The kiosks have excellent shapes and make them eyeball catching to the passengers passing-by.
* Human friendly interface layout: The position of components are designed for a easy access to all the applications with security and convenience.
* Anti-fall layout of components makes it can be safely place in the sites which the anchor points are not allowed. The anchor eyebolts are also prepared to have an ensured safety in a lean or hostile environment.
* Ease of customizing with multiple languages, to accommodate foreign or custom variants.
* Easily clean and the painting are very wearable even scratched by a knife.
* To prevent tampering in public application, the whole kiosk can be locked. Various access control systems and temper-detecting devices are also available for the crucial applications unsupervised.
DATA SAFETY
* 3DES EPP installed to protect customers' PIN with the latest technology.
* Door lock of maintenance accessible parts.
* Temper detecting alarm devices.
* Remote management system to monitor the status of kiosk.
* The DEL-ALT-CTL key and other functions are blocked to make any attempt access to the operation system almost impossible in win2000/winXP or high version of MS windows.
ENVIRONMENTAL ADAPTABILITY
* Operating temperature: -10C to +60C.
* Storage temperature: -20C to +70C.
* Operating RH: 30-90%.
* Atmospheric pressure: 60-106Kpa.
* Saline mist: 96 hours, IEC 60512-6.
* Damp heat test at + 40C: 21 days, IEC 60512-6.
* Dry heat test at + 85C: 10 days, IEC 60512-6.
RELIABILITY
* RoHS Compliant, CE and FCC verified.
* Enclosure Protection Level: IP54.
With a special filter in the fans, it can be protected from the dirt and water spray from all the directions.
* Touchscreen Vandal resistant:
With a tempered, 4mm-thickness-glass, these touchscreens can withstand the impact of a 500g steel ball, dropped from a height of 1.3 meters, in accordance with Trial Standard Number 60950 IEC 1999
* Lifespan >3 years.
* MTBF >50000H.
* MTTR <120min.
