Programmable Controller:

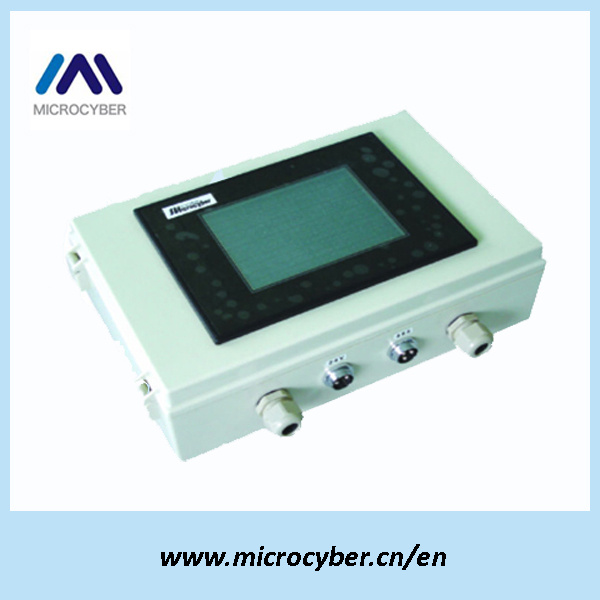

NCS-ePLC Embedded PLC Programmable Controller
NCS-MPLC Series Controller is a special programmer logic controller. It has small size with low cost, high performance and low power consumption. It is very easy to use and maintenance. It can be widely used in the equipment control, include plastics machinery, printing machinery, spin machinery, packing machinery, numerical control machinery, central air-conditioning, building automation and etc.
NCS-MPLC Micro-controller consists of backboard, CPU module, DI module, DO module, AI module, AO module and SD module. All the modules are installed on the backboard by the contact pin.
|
Module |
Model |
Feature |
|
CPU |
NCS-MPLC-101 |
Power: 24VDC |
|
One RS485 Slave Interface |
|
One RS485 Mater Interface |
|
Flash: 100K bytes |
|
Global Data: 2K bytes |
|
Internal Data: 32K bytes |
Scan rate: user define, 1ms minimize
|
Instruction execute time: 0.6-1.6us
|
|
Program download bumpless |
|
Support Modbus RTU protocol |
|
DI |
NCS-MPLC-201 |
8 channels |
|
Optocoupler isolate |
|
Input voltage/current: DC24V/5mA |
|
Input impedance: 5.1KΩ |
|
DO |
NCS-MPLC-301 |
8 channels |
|
Optocoupler isolate |
|
Input voltage/current: DC24V/100mA |
|
Power: 12-24VDC |
|
AI |
NCS-MPLC-401 |
4 channels |
|
Input: 4-20mA or 0-10V |
|
Resolution: 16bits |
|
Precision: 0.1% |
|
Update rate: 5ms/channel |
|
AO |
NCS-MPLC-501 |
4 channels |
|
Output: 4-20mA |
|
Resolution: 12bits |
|
Precision: 0.1% |
|
SD |
NCS-MPLC-801 |
Standard SD card interface |
|
FAT file formate |
|
Power Fail Safeguard |
|
Backboard |
NCS-MPLC-901 |
Size: 253mm×167.5mm |
|
5 groups digital pin for DI/DO |
|
5 groups analog pin for AI/AO |
Microcyber Inc. is established by Chinese Academy of Sciences. Based on fieldbus technique, the company engages in R&D, manufacturing, sales and engineering service of advanced industrial control systems, equipments, instruments and chips for industrial process control solutions.
As one of leading supplier and vender of fieldbus products, Microcyber mainly provides communication stack, communication controller chip (FF, PROFIBUS PA and HART), customized communication board (FF, PROFIBUS PA and HART), control configuration software, control system -- NCS4000 System, F/I converter, I/F converter, pressure transmitter with capacitance sensor or diffused silicon sensor (FF, PROFIBUS PA and HART) and temperature transmitter (FF, PROFIBUS PA and HART).
The company has a lot of experience in providing fieldbus products. Pressure transmitter, I/F converter and F/I converter have been registered in Fieldbus Foundation. Microcyber provides FF & PROFIBUS PA communication boards which are available in same hardware, and software outsourcing for supplier or manufacturer. Microcyber has supplied the communication boards to some manufacturers, such as EIM Controls Inc. And Dangdong Top Instruments Co., Ltd which are have registered in Fieldbus Foundation.
Also Microcyber is member of HART and Profibus foundation.
Microcyber Inc. is looking forward to the long-term smooth and close cooperation with you.
