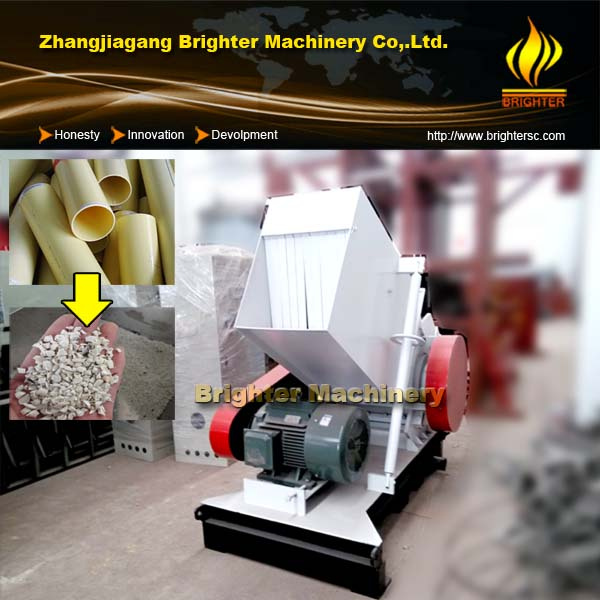

New High Output Strong PVC Plastic Pipe Profile Crushing Machine Grinder Plastic Crusher

New High Output Strong PVC Plastic Pipe Profile Crushing Machine Grinder Plastic Crusher

For plastic recycling, the first step is to crush the plastic products to be reclaimed down to a manageable or reusable size, no matter whether it is a PVC pipe, plastic bottle, or other plastic articles of various sizes. Our plastic crusher is the perfect machine for completing size reduction tasks.

Superior quality tool steel and specially-made cutting tool ensure durability. The plastic crusher adopts extension-type cutting tool installation method. Thus, the blunt blades can be sharpened for many times for repeated use, extending service life. The moving knife stand in step-style design effectively decomposes the stress, resulting in increased cutting force. Made of top grade tool steel T7A with proper toughness, the knife stand ensures neither fracture nor wearing. High strength steel fastening bolt of Grade 8.8 ensures secure fastening and solid structure.

The main body part of the plastic crusher is made of thick Q235A structural steel, which avoids performance degradation due to long term operation. The machine axis and both ends are processed by high precision jig borers, so as to make sure the error of concentricity and perpendicularity is no more than 0.05mm. Each of the machine parts undergoes both rough and precision processing, which contributes to high size accuracy and interchangeability.

Specifications of small pvc pipe plastic crusher:

Model	SWP400	SWP500	SWP560	SWP630	SWP1200
Moving knife swing diameter (mm)	400	470	520	590	680
Moving knife quantity	5	5	5	5	30
Moving knife speed  (r/min)	520	520	550	550	630
Fixed knife quantity	2	2	2	2	2
Screen mesh (mm) φ	8-12	10-14	10-14	10-14	10-14
Crushing capacity (kg/h)	250-400	350-500	400-600	600-800	1200-2000
Motor power (kW)	15	22	30	37	132
Fan power (kW)	3	3	4	4	7.5
Feeding port size (mm)	330X350	400X450	480X550	520X550	660X1250
Machine weight (kg)	1200	1400	1800	2500	5000


Crushing chamber
The crushing chamber of the plastic crusher is assembled using high hardness, 30mm thick sheet steel after machining and precision polishing. It is pollution-free, and features high strength, good wearing resistance, and long service life. The assembled structure makes the chamber convenient for disassembly and mounting as well.

Cutting tool
The moving knife adopts V-style cutting technology to provide low operational noise, reduced energy consumption, and uniform particle size. It features simple mounting and dismounting, and is also convenient for maintenance. Made of H13K material, the cutting knife has high strength and high toughness, and won't break easily.

Spindle
The spindle made from 40Cr undergoes both dynamic and static balance tests. With high toughness, it offers superior stability and resistance to deformation during operation.

Belt pulley
Our plastic crusher adopts shaft couplers to connect the drive shaft and the belt pulley. The connection allows the belt pulley to match perfectly with other parts, and ensures balanced operation, convenient maintenance, as well as easy mounting and dismounting.

Screen cloth
The high strength steel material provides the screen plate with high strength and great durability. The screen plate can be conveniently mounted to the plastic crushing machine, in either electric or manual mode. It can be simply exchanged as well. Screen cloth with varied mesh size options is also available.



We provide not only quality products but also timely and professional after-sales service.
