Specifications
1. NSE MCCB Breaker
2. CE, ISO9001
3. Circuit breaker switch
4. IEC60947-2

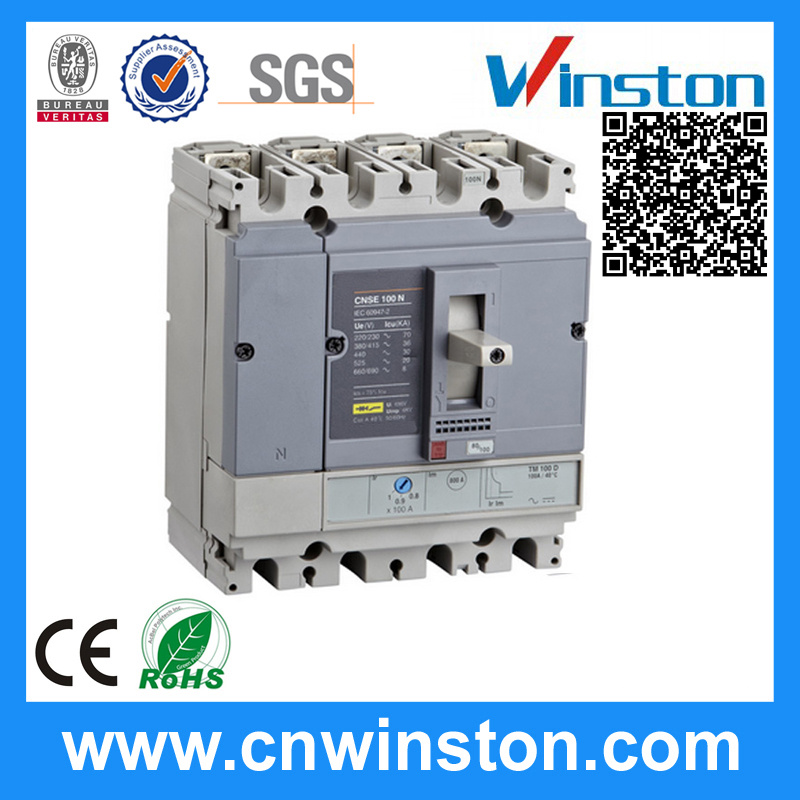

2014 New NSE series MCCB circuit breakers
Product Description
NSE series of MCCB reflects the latest current limiting principle and manufacturing technology, characterized by compact structures, full modularization, high breaking, and zero flashover. Circuit breaker is equipped with overload, short-circuit and undervoltage protection device, so as to protect the circuit and power supply equipment from damage.
Specifications
Maximum rated current(A) |
100A |
| Breaker capacity(kA ms) | AC-50/60Hz |
| Number of poles | 3 P |
| Brand Name | Winston/OEM |
| Category | Moulded case circuit breaker |
| Certifications | CE |
Prodcut |
Circuit Breaker(MCCB NSE250) |
| Number of poles | 3,4 |
| Rated impluse withstand voltage (kV) | 8 |
| Utilisation category | A |
| Rated current (A) |
In |
40 | 250 |
| 65 | 250 |
| Rated insulation voltage (V) | 800 |
| Rated operational voltage (V) | AC 50/60Hz | 690 |
| DC | 500 |
| Type of Circuit Breaker | | N | H | L |
| Ultimate breaking capacity (kA rms) AC 50-60Hz | 220/240V | 85 | 100 | 125 |
| 380/415V | 36 | 70 | 125 |
| 440V | 35 | 65 | 125 |
| 500V | 30 | 50 | 90 |
| 525V | 22 | 35 | 90 |
| 660/690V | 8 | 10 | 50 |
| Durability (C-O cycles) | Mechanical | 8500 |
| electrical | 400V | In | 1500 |
Maximum rated current(A) | 400 |
| Breaker capacity(kA ms) | AC-50/60Hz |
| Arrange range | 16-400A |
| Number of poles | 3 P |
| Brand Name | Winston/OEM |
| Category | Moulded case circuit breaker |
| Certifications | CE |
Maximum rated current(A) |
630A |
| Breaker capacity(kA ms) | AC-50/60Hz |
| Number of poles | 3 P |
| Brand Name | Winston/OEM |
| Category | Moulded case circuit breaker |
| Certifications | CE |
TRADE INFO
Trade Terms:FOB ,CIF ,CFR,EXW,DDP
Payment terms:T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions:30% deposit in advance,70% balance before shipping.
Delivery time:3-7working days after deposit,2-4 working days for inventory
Packing:Neutral carton,Wooden case for large size
Shipping:By sea,by air and by express delivery
