Product Specifications
| Prod Model: |
C23 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe |
| Brand: |
Winston |
| Rated Current: |
1A to 63A |
| Breaking Current ICU: |
6ka |
| Protection Degree: |
IP20 |
| Times (Ms): |
10 |
| Origin State: |
Cold Stae |
| Quality Guarantee: |
2 Years |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Structure: |
MCB |
| Certification: |
CE |
| Installation: |
DIN Rail |
| Poles Number: |
1p 2p 3p 4p |
Product Description

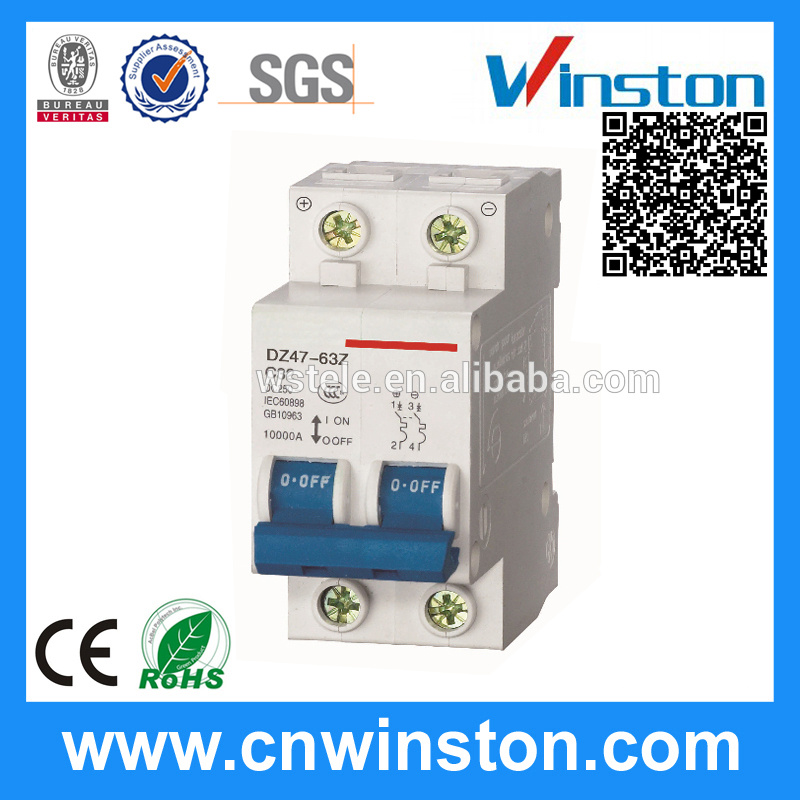

Two Phase Circuit Breaker DZ47 can do 23ASpecificationsDZ47 circuit breaker / mcb
1,DC 24/125/250/400V all include
2,6KA,1A to 63A
3, Current up steadily in 5s
Product Description1. DZ47-63Z DC Mini Circuit Breaker, apply to rating current 63A/125A or less, Direct current rating voltage 250V and 440V. 2. It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electric equipment.
3. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields.
4. The c32 circuit breaker / mcb in the case grade rating voltage is highest compared to the same products.
5. Products according IEC60947-2,IEC60898-2,GB14048.2,GB10963.2 standard.
Feature![]()
Specifications
Rating voltage(V) | Rating current(A) | Rated limit short circuit capability | Instantaneous trip type |
| breaking current Icu (A) | Times (ms) | |
| DC24V DC125V | 1,2,3,4,5,6,10,15,16,20,25,32,40,50,63 | 6000 | 10 | C,D |
| DC250V |
| DC440V |
| DC24V DC125V | 63,80,100,125 | 6000 | 10 | C,D |
| DC250V |
| DC440V |
Test | Type | Test current | Origin state | Reaching trip but no trip time limit | Result | Remark |
| A | C,D | 1.13In | cold stae | T≥1h(In≤63A) | No trip | Current up steadily in 5s |
| B | C,D | 1.45In | follow a test | T<1h(In≤63A) | Trip |
| C | C | 8In | cold stae | T≥0.1s | No trip | shut auxiiary switch and connect the power |
| 12In | T<0.1s | Trip |
| D | D | 10In | cold stae | T≥0.1s | No trip |
| 14In | T<0.1s | Trip |
Inside![]()
Dimension![]()
Connection![]()
