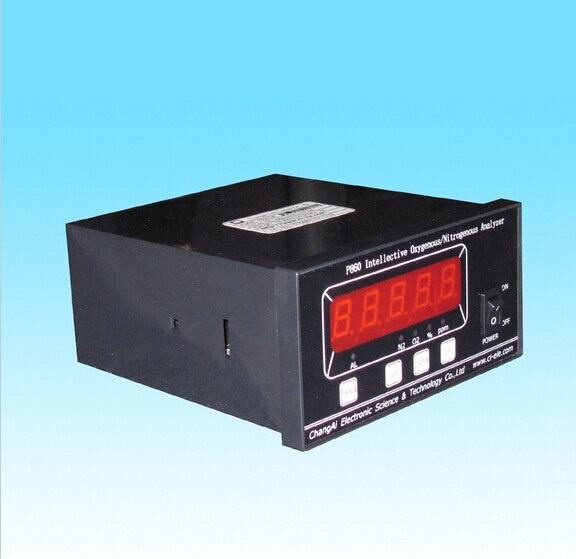

O2/N2 Analyzer for Air Seperation
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Product Specifications
Prod Model: |
P860 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Measure Range: |
10~2000ppm, 0~2%, 0~21% O2 |
Sampling Gas Flow: |
150~300ml/Min |
Sensitive: |
0.01% O2 |
Signal Outputs: |
4-20mA |
Sensor Life: |
3 Years (in Normal Condition) |
Warranty: |
12 Months Analyzer; 12 Months Sensor |
Response Time: |
90% of Fs Reading in 20 Seconds |
Type: |
Electrochemical Gas Analyzer |
Product Description
Percentage Oxygen AnalyzerFeatures * New pattern long-life conversion ion current tester with fast response and high sensitivity * N2 or O2 concentration display * Checking the sensor working state automatically and unique double-line working change mode extending the sensor's life* Setting alarm value freely * High precision, automatic temperature compensation, eliminating the impact of environmental temperature Technical Specifications Monitor: Five-digital dynamic LED monitor, visible display window: 90mm×25mmMeasure Range: 10~2000ppm, 0~2%, 0~21% O2Sensor Principle: Ion current oxygen sensorMeasure Mode: Air inflowing or convection diffusingSample Gas Flow: 150~300ml/minAccuracy: ±5% in 10~2000ppm O2 range ±2% in 0~2%O2 range ±1% in 0~21%O2 rangeResponse Time: 90% of FS reading ≤20 secondsAmbient Temp.: -10ºC~+50ºCAmbient Humidity: <80%RHStability: <±1%.FS (168h)Signal Output: 4~20mAPower Supply: 220±10% VAC, 50/60Hz, the power loss ≤6VASensor Life: 20000 hours at 25ºC and 1 atmWarranty: 12 months analyzer; 12 months sensorWeight: 1kgAppearance Dimension: 160mm×80mm×176mm (W×H×D)Opening Size: 151mm×75mm
