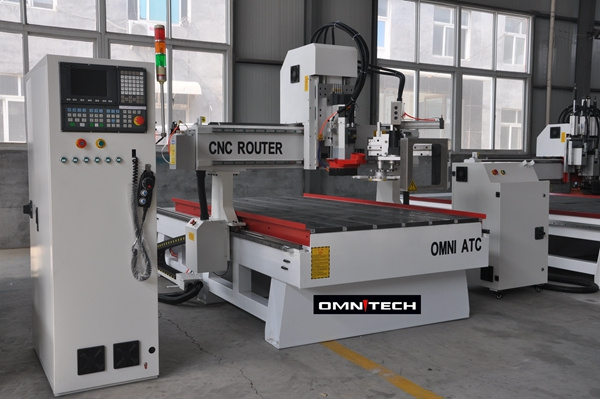

omni 1325 wood atc cnc router
Product Description
APPLICATIONS
1)This machine is designed to accommodate a wide range of materials and applications. We can work on wood, plastic, aluminum or other none-ferrous materials. This is an economic model ATC machine for woodworking factories.
2)Wood industry: Stereo Wave Plate Processing, cabinet doors, solid wood doors, Craft wood door, paint free door, folding screen, craft window, shoe cleaning machine, game cabinet, mahjong table, computer table, and panel-type furniture's assistance processing.
3)Advertisement industry. Advertisement label and logo, Acrylic cutting and blister molding, Multi Ad. Material and decoration products processing.
4)Mold industry. Engrave on material like brass, Al, and Iron to make metal mold. And it can engrave on artificial Marble, gravel, plastic board, PVC pipes,wood, and alike Non-metal mold.
5)Other industry. Engrave all kinds of image engraving and relief engraving. It is widely used art & craft industry.
STANDARD CONFIGURATION
1)9.0kw Italian HSD spindle with ATC, ER32.
2)Yaskawa servo system ensures machine to run with fast speed and low noise.
3)Syntec windows control system.
4)6 pieces tool holders.
5)Unique Auto Tool Changer system can change tools alternatively, special tool sensor to compensate the tolerance of tool length.
6)Tool magazine capacity of 6 tools, changing tools only takes 8 seconds
7)It is a more strong type. With heavy frame, steel tank and special place to fix material.
OPTIONS
1)4.5KW HSD air cooling spindle.
2)Special size table. From 4x4 ft~7x21 ft.
3)Higher Z clearance: 200mm to 400mm.
4)Vacuum table or Aluminum T-slot extrusion table.
5)Sider cutter and boring unit.
7)Dust collecting system.
Name | Omni 1325 atc cnc router |
|
X,Y,Z working area | 1300*2500*200,mm |
Table size | 1500*3040mm |
Spindle | HSD9 kw auto tool change air cooling spindle 24000rpm (ES929) |
Tool magazine | Carrousel type magazine + 8 pcs ISO30-ER32 tool holders(linear type optional) |
Tool Diameter | Φ 3.175, Φ 4, Φ 6, Φ 12.7mm |
|
Tool change time | 8seconds |
|
Calibration | Auto |
|
Frequency converter | Taiwan 11kw Delta VFD |
|
Motor | 4sets Yaskawa AC servo motor SGMGV-09ADC61model 850w servo motor |
Drive | 4setsYaskawa SGDV-7R6A01A00200 model 1kw drive |
|
X, Y, Z Travelling Potioning Accuracy | ±0.05/300mm |
Max Rapid Travel Rate | 50,000mm/min |
Max working speed | 30,000mm/min |
Table surface | Bakelite Vacuum Table +T-slot Extrusion |
Vacuum System | 8 independed divided part by manuel control and without pump |
Frame | Steel Square Tubes up to 8mm, T type |
X, Y structure | Helical Rack & gear transmission,Hiwin 30MMrail linear bearing (HGR30) |
Z structure | TBI 3210 ballscrew,Hiwin 30MM rail linear bearing (HGR30) |
Lubrication | Auto |
|
Control system | Synetc 6MB control system |
Command languages | G code |
Software compatability | Artcam English version/ Type 3 |
Switch and emergency stop | SCHNERDER switch, Omron emergency stop from Japan |
Working voltage | AC220v/3phase 380v3phase |
Packing size | 3800*2200*1900mm, |
Gross weight | 2400KGS |
Option parts |
|
|
German Becker vacuum pump KVT3.140 | USD 1980$ (140cbm/h) |
Tongyou ZBW160E free rotary pump | USD 1350$(160cbm/h) |
China dry vacuum pump | USD 580$(120cbm/h) |
|
Mist sprayer | USD 280$ |
|
Dust collector 3KW with 2 bag | USD280$ |
Jinan OMNI CNC Technology Co., Ltd. is enterprise specializing in manufacturing, marketing and R&D of CNC router, laser and CNC plasma cutting machine. OMNI supply machines to a wide variety of manufacturing sectors including aerospace, automotive, marine, recreational vehicles, 3D sculpture, concept models, pattern making, formed plastics and wood working, sign.
