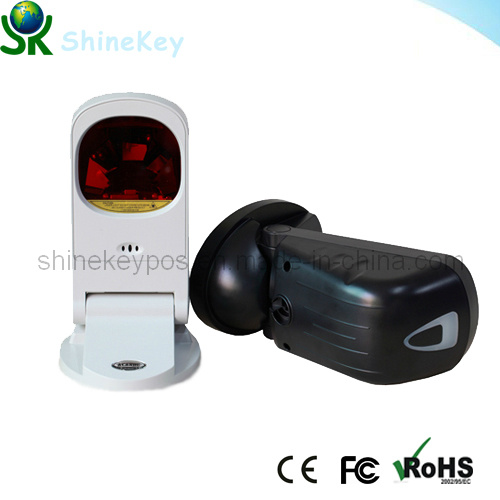

Barcode Scanner (SK 2018W)
Omnidirectional Laser Barcode Scanner/barcode reader
Specification:
1. Operational
Light Source: 650nm visible laser diodes (VLD)
Depth of Scan Field: 0 - 200 mm (UPC/EAN 100%, PCS=90%)
Scan Pattern: 5 directions of scan field
Scan Rate: 1400 scans per second (omnidirectional)
Number of Scan Lines: 20
Minimum Bar Width: 5mil @ PCS 90%
Print Contrast: 30% @ UPC/EAN 100%
Indicators (LED): Two-color LED (blue & red)
Beeper Operation: Programmable tone and volume
System Interfaces: Keyboard wedge, RS-232C, HID USB
2. Physical
Height: 200.0mm
Depth: 139.0mm
Width: 105.0mm
Weight: 535g
Cable Standard: 2.0M straight
Tilt: 50° Forward
3. Power
Input Voltage: 5VDC ± 10%
Power: 1.35 watts
Operating Current: 260mA @ 5V (Normal)
4. Regulatory
Laser Class: CDRH Class IIa; IEC 60825-1: Class I
EMC: CE EN55022 B FCC Part 15 Class B VCCI, BSMI
5. Environmental
Operating Temperature: 0° C - 40° C (32° F - 104° F)
Storage Temperature: -20° C - 60° C (-4° C - 140° F)
Humidity: 5 % ~ 90% RH (no dewing allowed)
Light Levels: Up to 4000 Lux (fluorescence)
Drop Durability: Designed to withstand 1.0M drops
|
SK 2018 Specification |
|
|
|
Operational |
|
Light Source |
650nm visible laser diodes (VLD) |
|
Depth of Scan Field |
0 - 200 mm (UPC/EAN 100%, PCS=90%) |
|
Scan Pattern |
5 directions of scan field |
|
Scan Rate |
1400 scans per second (omnidirectional) |
|
Number of Scan Lines |
20 |
|
Minimum Bar Width |
5mil @ PCS 90% |
|
Print Contrast |
30% @ UPC/EAN 100% |
|
Indicators (LED) |
Two-color LED (blue & red) |
|
Beeper Operation |
Programmable tone and volume |
|
System Interfaces |
Keyboard wedge, RS-232C, HID USB |
|
Physical |
|
Height |
200.0mm |
|
Depth |
139.0mm |
|
Width |
105.0mm |
|
Weight |
535g |
|
Cable |
Standard 2.0M straight |
|
Tilt |
50° forward |
|
power |
|
Input Voltage |
5VDC ± 10% |
|
Power |
1.35 watts |
|
Operating Current |
260mA @ 5V (Normal) |
|
Regulatory |
|
Laser Class |
CDRH Class IIa; IEC 60825-1: Class I |
|
EMC |
CE EN55022 B FCC Part 15 Class B VCCI, BSMI |
|
Environmental |
|
Operating Temperature |
0°C - 40°C (32°F - 104°F) |
|
Storage Temperature |
-20°C - 60°C (-4°C - 140°F) |
|
Humidity |
5% ~ 90% RH (no dewing allowed) |
|
Light Levels |
Up to 4000 Lux (fluorescence) |
|
Drop Durability |
Designed to withstand 1.0M drops |
