Product Specifications
| Prod Model: |
TW3100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Event Blind Zone: |
2m |
| Attenuation Blind Zone: |
9m |
| Distance Scope: |
0.3 To180 |
| Maximum Testing Distance: |
3km |
| Linearity: |
±0.05 Db/ Db |
| Memory Capacity Of Trace: |
SD Card (2g), > 10000 Pieces |
| Certification: |
ISO |
| Condition: |
New |
| Type: |
OTDR |
Product Description
Specifications
Best & Cheap China Techwin Brand Otdr/Fiber Optic Meter
23/21dB SM, 32/30dB MM
Easy operation
Quality package
Built-in VFL
Techwin, The First Manufacturer in China
Your Reliable Partner

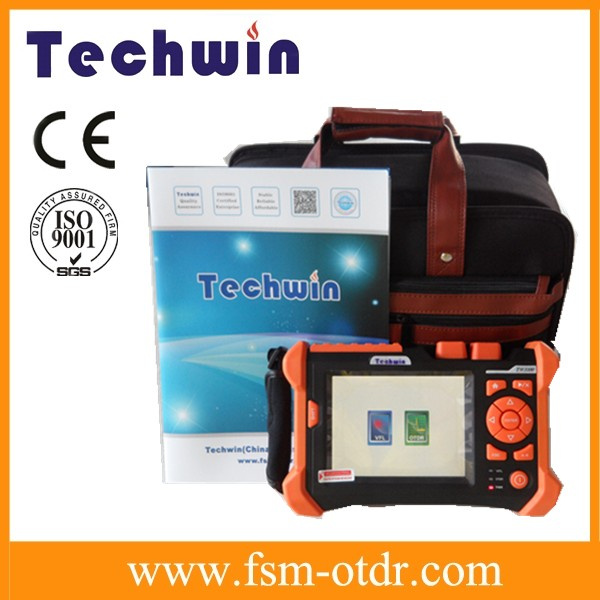

Optical Fiber Test Equipment Techwin Mark TW3100 OTDR Price
Product Description
Only by selecting the measurement wavelength, the measurement parameters are automatically set, and the trace data is automatically saved and automatically analyzed.
Multi-wavelength Measurement Mode: In the parameter setting, the wavelength can be automatically switched into the multi-wavelength measurement mode. Under this mode, the analysis can be achieved on the attenuation state of the same fiber section under different wavelengths
Key Features
Handheld,lightweight and convenience for carrying
SM, MM 32/30dB, 23/21dB high dynamic range
2m extra-short event dead zone
Integrated Visible fault locating (VFL)
Fast auto measurement,one-button operating
Test up to four wavelengths with a single unit
Communication light check automatically
Remote function via Ethernet
USB interfaces, supporting USB stick and printer and direct cable download to PC via ActiveSync
Supporting Bellcore GR196 file format in writing or reading
The Parameters
Wavelength(nm) |
850/1300 |
1310/1550 |
1310/1490/1650 |
1625 |
Dynasmic range(dB)2 |
23/21 |
32/30 |
34/32 |
36/34 |
38/36 |
34/32/32 |
38/36/36 |
304 |
325 |
344 |
365 |
Pluse width(ns) |
5,20,40,80,160,
320,640,1280 |
5,20,40,80,160,320,640,1280,2560,5120,10240,20480 |
Event blind zone(m)3 |
2m |
2m |
Attenuation blind zone(m)3 |
9m |
9m |
Linearity(dB/dB) |
±0.05 dB/dB |
Loss threshold
Loss resolution ratio(m)
Sampling resolution ratio(m)
Sampling point
Distance uncertainty(m) |
0.05 |
0.01 |
0.125 to 8 |
32K |
±(1m + 5*10-5* distance + sampling interval) |
Distance scope(km) |
0.3 to 180 |
Typical real-time refreshing duration(s) |
0.2 |
Display |
5.6 inch Color TFT LCD |
Memory capacity of trace |
SD Card(2G), >10000 pieces |
Optical Interface |
FC/UPC(PO & APC are selectable) |
Data interface |
USB interface, SD card interface |
VFL |
650nm, ≥-3 dBm |
Operating temperature |
-10°C~50°C |
Storage temperature |
-40°C~70°C |
Power supply |
Lithium battery; continuing working duration ≥ 8 hours |
Dimensions (H*W*D) |
150*235*66 |
Weight (kg) |
1.5 |
Optical Fiber Test Equipment Techwin Mark TW3100 OTDR Price
Order Information
NO. |
Name |
quantity |
1 |
Power line |
1 |
2 |
AC/DC adapter |
1 |
3 |
Quality certification |
1 |
4 |
User manual |
1 |
5 |
Trace analyzing software (CD) |
1 |
6 |
Soft Carrying Bag |
1 |
7 |
Touch Pen |
1 |
Note:For the necessity of improvement, the material contained in this document is subject to change without notice. |
