Product Specifications
Prod Model: |
OTDR TW3100 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Place Of Origin: |
Zhejiang, China (Mainland) |
Brand Name: |
Techwin |
Event Blind Zone ( M³ ): |
2m |
Loss Threshold (D/B): |
0.05 |
Loss Resolution Ratio (D/B): |
0.01 |
Sampling Resolution Ration (M): |
0.125~8 |
Sampling Point: |
32k |
Display: |
5.6 Inch Color TFT LCD |
Memory Capacity Of Trace: |
SD Card(2g), >10,000PCS |
Warranty Period: |
12 Months |
Certification: |
ISO |
Condition: |
New |
Type: |
Fiber Optic Equipment |
Product Description

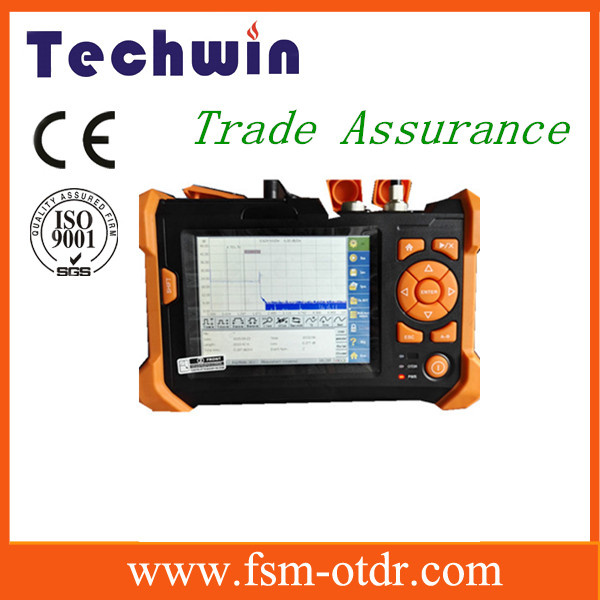

Selectable Measurement Duration Fibre Optical Mini OTDR (One Year Warranty ! ! ! )
product description
1.Automatic measurement mode: Only by selecting the measurement wavelength, the measurement
parameters are automatically set, and the trace data is automatically saved and automatically analyzed.
2.Multi-wavelength measurement mode: in the parameter setting, the wavelengths can be automatically
switched into the multi-wavelength measurement mode. Under this mode, the analysis can be automatically on the attention state of the same fiber section under different wavelengths
3.Trace Fixing Function: it can achieve the same-screen comparison and display of one trace with another real-time trace
4.trace under the average measurement, which is very useful for the installation of multi-core fiber or the checking of the aged fiber in the optical fiber network already been installed
5.Multi-wavelength Analysis Function: it can achieve the comparison and display and analysis function of any trace file
6.FTTx online testing: able to identify the splitter and the fiber's end
7.Large-capacity lithium-ion rechargeable battery, with the long standby time over 8 hours
8.Bellcore file format (.sor), with the storage of grater than 10,000 traces
9.Communication Light Dection: It can effectively protect the test instrumentation and communication equipments
10.The Switching of Measurement Mode: Though the shortcut key operation, it can achieve the flexible switching of real-time measurement mode and average measurement mode.
Technical Specification
Optical Fiber Techwin Tw3100 OTDR Price (One Year Warranty ! ! ! )
Standard Acc3.Essories:
NO. | Name | quantity |
1 | Power line | 1 |
2 | AC/DC adapter | 1 |
3 | Quality certification | 1 |
4 | User manual | 1 |
5 | Trace analyzing software (CD) | 1 |
6 | Soft Carrying Bag | 1 |
7 | Touch Pen | 1 |
Note:For the necessity of improvement, the material contained in this document is subject to change without notice. |
Packaging & Shipping
Packaging Details: | neutral packing, standard export carton |
Delivery Detail: | 7 workdays after confirmation of order and payment |
