Product Specifications
| Prod Model: |
JGX-5FA |
| Markets: |
North America,South America,Eastern Europe,Africa,Oceania,Western Europe |
| Brand: |
Winston |
| Load Voltage: |
60VDC/110VDC/220VDC |
| Load Current: |
3A 5A |
| Control Voltage: |
DC3-14V/DC3-32V |
| Control Current: |
6-35mA |
| Mounting Methods: |
PCB |
| Weight: |
32g |
| Manufacturer: |
OEM |
| Condition: |
Original New |
Product Description
Product Description:

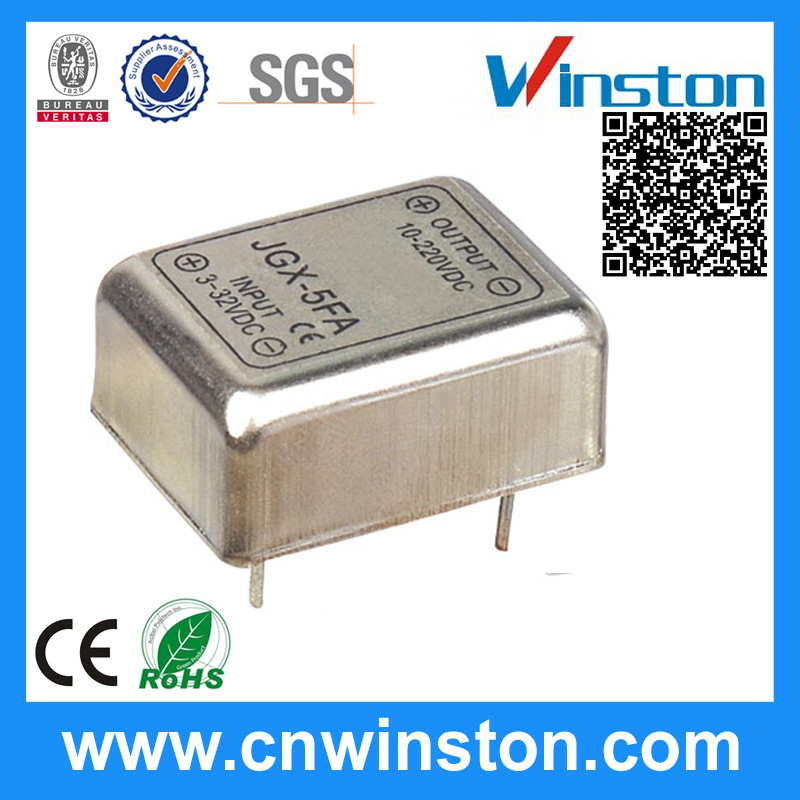

JGX-5FA PCB Type DC Solid state relay
Specification:
1. AC output, using triac output, zero-voltage open, zero current shutdown.
2. The DC output using bipolar transistor output, reducing the pressure switch conduction speed, immunity to interference.
3. The input signal is compatible with the TTO and COMS digital logic circuits.
4. The optical isolation between input circuit and output circuit.
5. Inputs - between the output isolation voltage 2500V.
6. Single in-line circuit board welding installation, standard modular sizes.
7.100% load current aging test, through the European CE certification.
| Load voltage | 60VDC/110VDC/220VDC |
| Load current | 3A 5A |
| Control voltage | DC3-14V/DC3-32V |
| Control current | 6-35mA |
| On voltage | ≤ 1.5V |
| Off leakage current | ≤ 1.5mA |
| On-off time | ≤ 10mS |
| Dielectric strength | 1500VAC |
| Insulation resistance | 500MΩ/500VDC |
| Ambient temperature | -25 ºC~+70ºC |
| Mounting methods | PCB |
| The work instructions | / |
| Weight | 32g |
PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
