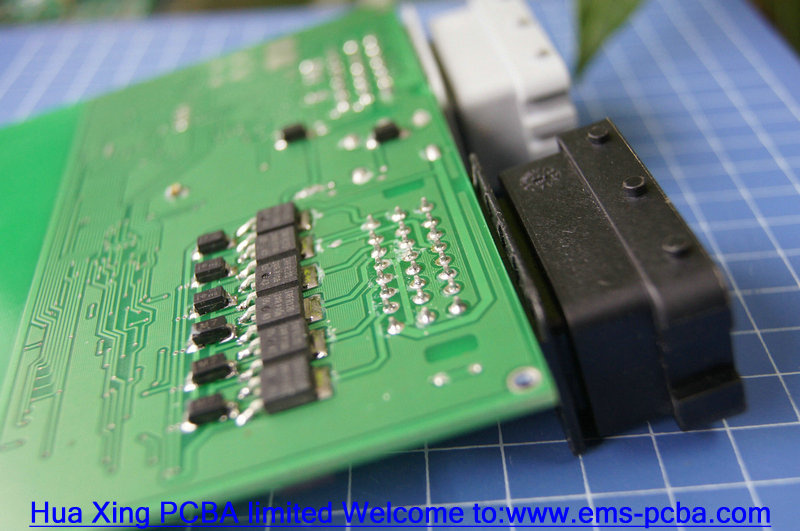

PCBA Board with Double Layer Circuit for Computer Mainboard

Name: PCBA Board with Double Layer Circuit for Computer Mainboard
Brand: china-manufacturer-directory.com
SKU: 681270585
Availability: InStock
Rating: 4.7 (89 reviews)

Price:	US $ 1-5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Layer: 2 Layer
Material: FR4
Board Thickness: 1.6mm
Surface Treatment: Lead-Free HASL
Solder Mask: Green
Size: 122.37 x 153.26mm
Copper Thickness: 1.0oZ
Min. Line Spacing: 0.5mm
Min Trace Space: 0.5mm

Detailed Terms for Pcb Assembly

We are a Manufacturer & Supplier Specializing in Double Side PCB, Multi-Layer PCB, F4BK PCB, Ceramic PCB, Rogers PCB, Aluminum PCB. Meanwhile, we provide PCBA ( Assembly) and ODM, OEM service. We are specializes in a full SMT and through hole PCBA assembly, obtaining components, building prototype quantities, and testing.
1. Our professional engineering team can put your project into production in a short time. Sample pictures and BOM are needed to make customized products
2. We can supply CAD and Pro-E designed precision moulds. Moulds can be designed and manufactured according to customers' requests or samples. Plastic injection processing available.
3. We have advanced equipment for through-hole and SMT DIP COB cable assembly.
4. ROHS compliant and lead-free process.
5. In-circuit, functional tests& burn-in tests, full system test
6. High output to guarantee prompt delivery.

Item	Mass Production	Pilot Run Production
Item	Capacity	Capacity
Layer Counts	1L_18L, HDI	20-28 , HDI
Material	CME1 , CME3 , FR-4, High TG FR4 , Halogen-free FR4 , aluminium , Ceramic(96% Alumina)
Material	Teflon , PTFE ( F4B , F4BK ) , Rogers ( 4003 , 4350,5880 ) Taconic ( TLX-8 , TLX-9 ) , Arlon ( 35N , 85N ) etc.
Material Mixed Laminate	4 layers -- 10 layers	12 layers
Material Mixed Laminate	FR4+Ro4350 , FR4+Aluminium , FR4+ FPC
Maximum Size	610mm X 1200mm	1200 - 2000MM
Board Outline Tolerance	±0.15mm	±0.10mm
Board Thickness	0.125mm--6.00mm	0.1mm--8.00mm
Thickness Tolerance ( t≥0.8mm)	± 8%	±5%
Thickness Tolerance( t<0.8mm)	±10%	±8%
Minimum Line / Space	0.10mm	0.075mm
Trace width Tolerance	15%-20%	10%
Minimum Drilling Hole (Mechanical)	0.2mm	0.15mm
Minimum laser hole	0.1mm	0.075mm
Hole Position/hole Tolerance	±0.05mm PTH: ± 0.076MM NPTH: ± 0.05mm
Mini hole ring (single	0.075MM	0.05MM
OutLayer Copper Thickness	17um--175um	175um--210um
InnerLayer Copper Thickness	17um--175um	175um--210um
Mini Solder Mask Bridge	0.05mm	0.025mm
Impedance Control Tolerance	±10%	±5%
Surface Finishing	HASL, Lead free HASL, Immersion gold, Immersion tin, Immersion Silver.
Surface Finishing	Plated gold , OSP, Carbon ink,
1-2L Lead-time	3-7 days	1-2 days
4- 8L Lead-time	7-10 days	2-7 days
10-18L Lead-time	10-15 days	4-9 days
20-28L Lead-time	15-20 days
Acceptable File Format	ALL Gerber Files , POWERPCB , PROTEL , PADS2000 , CAD , AUTOCAD , ORCAD , P-CAD , CAM-350 , CAM2000 etc.
Quality Standards	IPC-A-600F and MIL-STD-105D CHINA GB<4588>

Prod Model:	HX-PCBA-116
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	122.37 X 153.26mm
Base Material:	FR-4
Metal Coating:	Tin
Mode Of Production:	SMT & DIP

Hua Xing PCBA Limited, is a privately owned company founded in 1998, with a qualified, experienced and dedicated team of professionals, hua xing PCBA limited is able to provide a full compliment of services to our clients with a complete systems design, build, integration and after-sales support.

Hua Xing PCBA limited offer a full suite of design services; From schematic design, board layout, component selection, firmware design, mechanical design to PCB, PCBA, chip cloning, we can help you procure components, PCB FPC making, mold making, plastic injection, assemble, package, and deliver the finished goods to you, or even drop ship to a third party. If you require only one aspect of the above, we have the flexibility to adapt to your needs and requirements.

Printed circuit board assembly. Wire harnessing, sheet metal assembly, final packaging, you name it and we are able to successfully complete it to your demanding specifications. You want to supply the pcbs or have parts in inventory you would like us to use? Full or partial consignment orders, whatever works best for you.

We welcome prototype and small run quantities as well as larger production volume. Since we are here to serve you, we will take the time to get to know your products and to understand your needs. No detail is unimportant. Our flexibility means that nothing is too small, too large or too difficult.

Contact us and experience the difference and quality of hua xing PCBA limited. We are looking forward to working with you.
