Product Specifications
| Prod Model: |
hengtuitong |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Roll Length: |
Length30m, 50m, 100m, or Customized |
| Mesh Dimension: |
40X40mm or 50X50mm or 25*25mm |
| Rodirectionll Width: |
4m. 5.3m, 5.9m, 6m or Customiz |
| Describtion: |
Bidirection, Uniaxial, Biaxial |
| Material: |
Steel Plastic |
Product Description

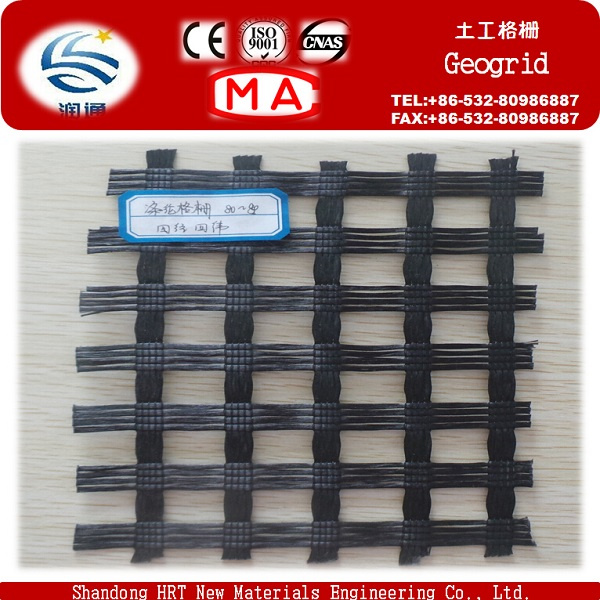

Woven Polyester Geogrid with CE Certificate similiar to Miragrid
Specifications
With state-of-the-art technology and imported LIBA machine,
The pes geo-grids are of ISO and CE certificates.
Grass grid.
I.
Grid specification and Index:
Warp tensile strength: 55/80/200/300 kN/m min.
Welf tensile strength: 30 kN/m min.
Warp elongation: 13% max.
Welf elongation: 13% max.
Aperture: 25 mm x 25 mm
Roll width: 5.0 m
Roll length: 50 m
Coating: Styrene butadiene copolyme(SBR) or PVC
2.
Polyester woven grid data sheet:
The customized specification is available.
Other more detailed data sheet on request.
3.
Producing factory and polyester woven grid loading container:
The picture of our factory and loading container
4.
Pes grid application:
1. Roadbed reinforce of road and railway, crack prevent, increase roadbed strength
2. Reinforcement and ground stabilization of riverside, embankment and side slope
3. Dyke reinforcement on soft ground for stress evenness, sedimentation adjustment,
Increase of stablity and loading capacity of fundus
4. Reinforcement of the surface of road and bridge.
5.
Package form:
By roll, suitable for export, with shipping mark or buyer brand
6.
Service after sale: Provide polyester woven geo-grid installation manual and other relevant consultancy service.
The competitive advantage of product line:
The warp knitted geogrids have high tensile strength in warp and weft direction with low stretch rate. And the company has acquired CE certificate and ISO 9001: 2008 International quality management system.
Production Capacity:
Product Line NameProduction Line CapacityActual Units Produced(Previous Year)
Warp Knitted Geogrids380, 000 M2 Per Month3, 000, 000 M2
Last:
Warmly welcome to our Factory, try our best to provide customer convenience!
Index Properties
|
Test Method
|
Unit
|
GG1515
|
GG2020
|
GG3030
|
GG4040
|
MD TD
|
MD TD
|
MD TD
|
MD TD
|
Polymer
|
--
|
--
|
PP
|
PP
|
PP
|
PP
|
Minimum Carbon Black
|
ASTM D 4218
|
%
|
2
|
2
|
2
|
2
|
Tensile Strength@ 2% Strain
|
ASTM D 6637
|
Kn/m
|
5 5
|
7 7
|
10.5 10.5
|
14 14
|
Tensile Strength@ 5% Strain
|
ASTM D 6637
|
Kn/m
|
7 7
|
14 14
|
21 21
|
28 28
|
Ultimate Tensile Strength
|
ASTM D 6637
|
Kn/m
|
15 15
|
20 20
|
30 30
|
40 40
|
Strain @ Ultimate Strength
|
ASTM D 6637
|
%
|
13 10
|
13 10
|
13 10
|
13 10
|
Structural Integrity
|
Junction Efficiency
|
GRI GG2
|
%
|
93
|
93
|
93
|
93
|
Flexural Rigidity
|
ASTM D 1388
|
Mg-cm
|
700000
|
1000000
|
3500000
|
10000000
|
Aperture Stability
|
COE Method
|
mm-N/deg
|
646
|
707
|
1432
|
2104
|
Dimensions
|
Roll Width
|
--
|
M
|
3.95
|
3.95
|
3.95
|
3.95
|
Roll Length
|
--
|
M
|
50
|
50
|
50
|
50
|
Roll Weight
|
--
|
Kg
|
39
|
50
|
72
|
105
|
Shandong Hengruitong HRTNew Materials Engineering Co., Ltd. is a collection development, production, sales and after-sales service for the high-tech enterprise, founded in 2006, total assets of 180 million, covers an area of 180 acres, the existing staff 810 people, each class technical staff of 120 people. The company is located in the northwest of the famous historical city - Ling County, Texas. Close to the Beijing-Shanghai high-speed railway, Beijing-Fuzhou Expressway, 104 State Road, adjacent to Qingdao, Yantai, Tianjin three major waterway ports, with unique geographical conditions, transportation is very convenient.
Company products are three-dimensional composite drainage network, GCL, geomembrane, impermeable membrane, geotextile, Composite geomembrane, waterproof board, geogrid, geonet, geocell drainage series and so on. The main production equipment imported from Germany, USA, Italy, and Taiwan, the company has sophisticated detection equipment, advanced technology and strict quality control quality management system, through international IS9001-2000 quality system certification. All products produced using ISO and adopted by the Provincial Technical Supervision standard acceptance, stable and reliable quality, excellent reach the international level, the annual tons, second to none in the country. Products at reasonable prices, improve service, it is exported to Europe, America, Japan, China, Hong Kong and Southeast Asia. The company's products are widely used: Roads, railways, tunnels, underground pipeline construction, landfill engineering, reservoir engineering, and Salt Lake dam seepage construction.
Companies adhering to the "integrity-based, quality of survival, to species development plans" business principles. Rely on scientific and technological development, adhere to innovation, technology as the core, continue to provide users with high-quality products is our constant pursuit.
