Product Specifications
| Prod Model: |
TDS-100P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pipe Size: |
Dn15-6000mm |
| Liquid Temperature: |
-40~160 Degree Celsuis |
| Sensor: |
Clamp-on/External |
| Type: |
Fluid Oscillation Flow Meter |
| Accuracy: |
>?à1% |
| Measuring Media: |
Liquid |
Product Description

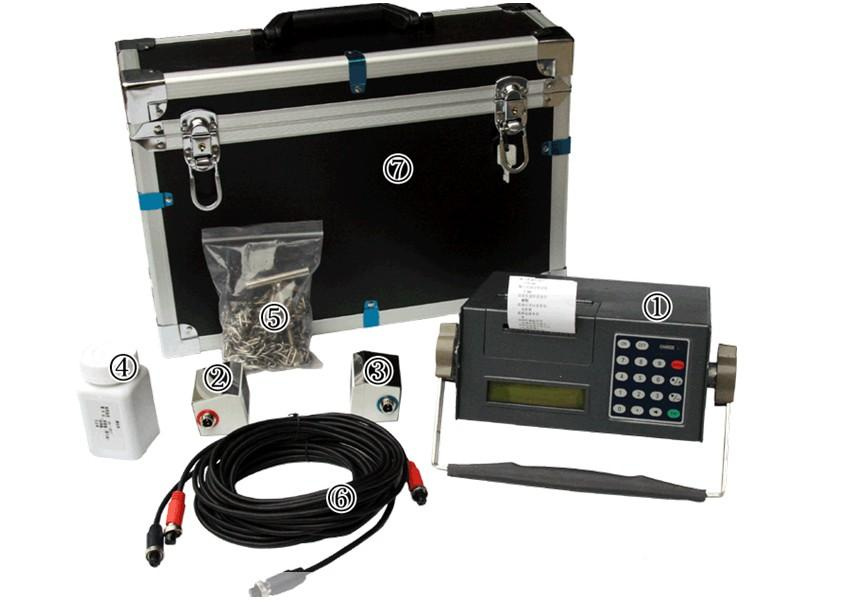

Portable ultrasonic flow meter takes a state-of-the-art transit time measurement principle in digital signal processing. It is designed to work with the clamp on transducer, to provide accurate measurement of liquid flow within a closed pipe line. There is not any mechanical parts to be inserted into the pipe wall Or to protrude into the flow system. It just takes a few minutes to install, and it is not necessary to shut down the flow or drain the system.
1. Accuracy: Better than ± 1.0%
2. Repeatability: 0.2%
3. Velocity: ± 0~64m/S
4. Measurement Period: 500mS
5. Measurement Principle: Transit-time measurement principle
6. Display: LCD with back light, 2X20 letters
7. Keypad: 4X4+2 key membrane keypad with tactile feedback
8. Unit: English(US. ) or metric
9. Output: 1 Channel isolated RS485 output
10. Pipe material: All metal, most of plastic, fiber glass, etc. Allow the pipe liner.
11. Pipe Size: 1/2-240" (DN15mm-6000mm)
12. Liquid Types: Virtually all clean liquids
13. Liquid Temperature: -40~160 degree celsuis
14. Power: Ni-MH battery powered, can work continuously more than 24 hours.
15. Weight: Main unit: 2.5kg
16. Enclosure: Die-cast aluminum enclosure
17. Protective class: IP65
18. Enclosure Size: 210X200X100mm
19. Communication protocol: MODBUS, M-BUS, ect
20. Transducer: Clamp on type
21. Transducer cable: 5Mx2 standard.
Accuracy:
|
better than 1%
|
Repeatability:
|
0.2%
|
Power Supply:
|
Ni-MH batteries |
Totaliser:
|
Positive/negative/net flow/heat totaliser
|
Display:
|
2 Line LCD
|
Transducer:
|
Clamp on type
|
Output:
|
RS485/OTC/Pulse/4~20mA
|
