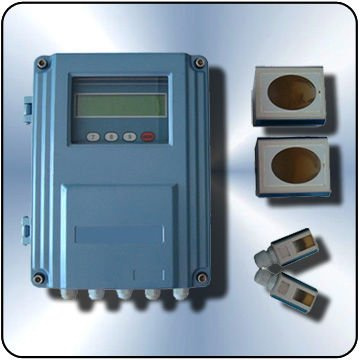

The ultrasonic flow meter takes a state-of-the-art transit time measurement principle in digital signal processing. It features an extremely powerful user friendly suite of programming and data analysis functions including, instantaneous flow rate, positive total, negative total, net total, velocity, heat amount, time&date, etc.
1. Accuracy: Better than ± 1.0%
2. Repeatability: 0.2%
3. Velocity: ± 0~64m/S
4. Measurement Period: 500mS
5. Measurement Principle: Transit-time measurement principle
6. Display: LCD with back light, 2X20 letters
7. Keypad: 4X4 key membrane keypad with tactile feedback
8. Unit: English(US. ) or metric
9. Output: 1 Channel isolated RS485 output
1 Channel 4-20mA or 0-20mA output
1 Channel isolated OCT output
1 Channel Relay output
10. Pipe material: All metal, most of plastic, fiber glass, etc. Allow the pipe liner.
11. Pipe Size: 1/2-240" (DN15mm-6000mm)
12. Liquid Types: Virtually all clean liquids
13. Liquid Temperature: -40~160 degree celsuis
14. Power: AC: 220V, DC: 8-36V
15. Weight: Main unit: 3kg (6.6lb)
16. Enclosure: Die-cast aluminum enclosure
17. Protective class: IP65 (NAME 4X)
18. Enclosure Size: 9.88X7.56X3.15" (251X192X80mm) for standard version
19. Communication protocol: MODBUS, M-BUS, ect
20. Transducer: Clamp on type, insertion type and inline type
21. Transducer cable: 5Mx2 standard.
Dalian Dayu Meter Co., Ltd locates in the beautiful coastal city_Dalian, China. Our company is a hi-tech enterprise that specialized in designing, R&D, manufacturing and marketing. The main products include ultrasonic flowmeter, ultrasonic heat meter and ultrasonic water meter, etc. The series of ultrasonic flowmeter, heat meter and water meter is widely used in the metallurgy, petrochemical, energy resources, water conservancy, and thermal system, etc.
Dalian Dayu Meter Co., Ltd has become one of leading company in ultrasonic meter field through seven-league development of many years. We have improved power and non-power step by step 2 series, and more than 20 products for customers to choose from.
Our company always pursues the marketing strategies of co-operation and win-win. All the time we act in good faith with our partner, develop together. We associate between strong enterprises in order to boost the flowmeter industry.
Our company has many years' export experience, the products have marketed more than 60 countries and regions. By exported we earned over 1 million dollar in 2008.
Outlook the future, Dalian Dayu Meter Co., Ltd will continue persist in the idea of "high quality&low price". And try our best to supply the high quality product with a reasonable price for customers.
We would like to extend our warm welcome for your visit.
