Product Specifications
| Prod Model: |
DLYY-X1 |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Input Power Supply: |
Three Phase Five Wires ~380V±10% 50Hz; |
| Flow: |
Below 10L/Min |
| Capacity: |
<1kVA |
| Nominal Capacity: |
:10L |
| Control: |
PLC Optional |
Product Description

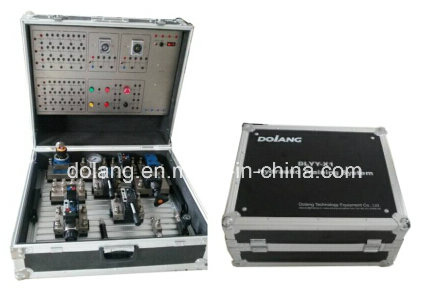

Portable Type Hydraulic Training System
DLYY-X1
I Overview
DLYY-X1 Portable type hydraulic training system, is design, research and develop according to experimental teaching outline of the national college "hydraulic transmission" for guidance, and combine with requirements of vocational training and professional further study to the fluid drive. This training device uses operating board of the open structure, all kinds of hydraulic components can be flexible install in operation board, connect with hydraulic pressure tube between components, the quick-change connector of hydraulic hose can make training experiment is fast and safe. Besides large whole set of components can be chose to upgrade! It has very strong expansibility and actual exercise, has the following features:
· Can meet the requirements of the school
· Meet the base and teaching training system of need of practical applications.
· Equipment structure is firm and has good stability
· Low noise operation
· Layout clear and intriguing design
II Component introduction
1. Hydraulic tools box
Box is divided into two cover, above cover install electrical parts hanging box, under cover is aluminum with a groove for installing hydraulic module. Groove spacing is 25mm, you can easily plug in various modules on it.
Box dimension: 470*560*260mm
Base place size: 450× 480mm
Groove spacing: 25mm
2. Hydraulic components
Configuration industry use Rexroth series hydraulic valve, the greatest work pressure is 31.5 Mpa. Each hydraulic component equip with oil-way transition bottom board, can easily and casually attached on the panel. Oil-way lap joints use the open closed quick change connector, detach and connect easily, not leak oil. 3. Hydraulic power unit
A) Work power: AC: 380V
B) Frequency: 50Hz
C) Safety rate-limiting range: Max 1400 r/min
D) Power: 0.75KW
1. Directional control circuit
A) Inverting circuit of hand shuttle valve
B) Magnetic shuttle exchange circuit
2. Pressure control circuit
A) Single grade pressure regulating circuit
B) Secondary level pressure regulating
C) The unloading circuit using the shuttle valve
D) The unloading circuit using the relief valve
H) Liquid control one-way valve pressure-protection
3. The flow speed circuit
A) Enter oil-way throttle speed regulation
B) Back oil-way throttle speed regulation
C) Side oil-way throttle speed regulation
