Product Specifications
Product Description

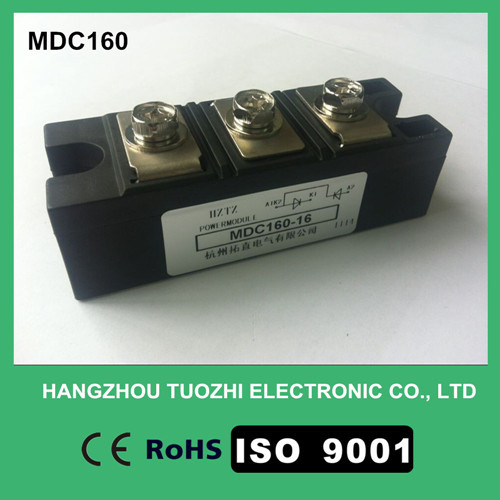

Style No.: MDC160
Features:
Isolation voltage: 2500V~
Planar passivated chip
Improved temperature and power cycling
Small and light, simple mounting
Application:
Frequency converter, AC/DC motor control, Rectifying power
Specification:
IF(AV)(Max average on-state current): 160A
IF(RMS): 251A
VRRM(Reverse repetitive peak voltage): 600~1800V
IRRM(Max reverse repetitive peak current): 5mA
IFSM(Max on-state non-repetitive surge current): 6.0KA
I2t(Max surge current average time integration): 18400A2S
VFM(Max On-state peak voltage): 1.3V
Rth(j-c)(Max thermal impedance junction to case): 0.23ºC/W
Rth(c-h)(Max thermal impedance case to heatsink): 0.08ºC/W
Viso(Insulation voltage): 2500V~
Tsbg(Storage temperature): -40~125ºC
Wt(weight): 210g
Hangzhou Tuozhi Electronic Co., Ltd is a specialized manufacturer of electric elements. We have Advanced DC electrical components research and development laboratories and reliability experiment platform.
Hangzhou Tuozhi Electronic Co., Ltd located in Hangzhou, Zhejiang, China, have been specialized in semiconductor area almost 10 years, and we have got ISO9001, ISO14001, RoHS and CE certificate.
The main products include:
Thyristor module
Rectifier module
Thyristor/Diode module
Single-phase rectifier/three-phase rectifier
Bridge Rectifiers
Super Fast Recovery Rectifiers
Quick thyristor
MOS relay
Solid State Relay
Three-phase solid state relay elements
Smart voltage adjustment module
SCR phase-shift voltage regulator
Heatsinks
Instrument and apparatus
Photovoltaic defence-attack diode module
