Product Specifications
| Prod Model: |
HZ-3506A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Switzerland Tesa Probe: |
2, 3mm |
| Working Distance Range: |
115mm (Image) |
| World Famous Brand PC: |
DELL / PC Machine / 17 "Flat Screen Computer |
| Meausuement Software: |
Yr-3t |
| Working Temperature: |
20 +/- 1 C |
| Operatig Temperature: |
13-35 C |
| EMC Compliance Test: |
Ok |
| Machine Weight: |
140kg |
| Dimensions: |
550 * 500 * 680mm |
| Operating Voltage: |
220V |
Product Description
Equipment Summary

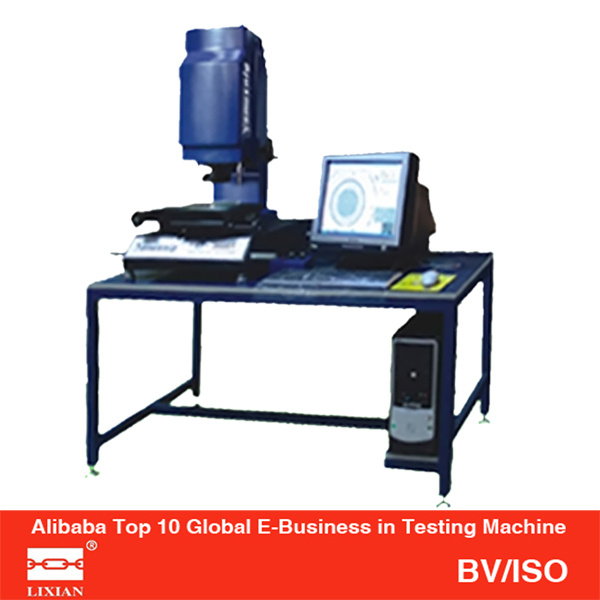

1. Hz-3506A is levels of high stability of granite base
2. Take the Swiss TESA patent optical read values measuring system.
3. 3T multifunction image YR - probe, interlock measurement software.
4. Taiwan high wear-resisting V-shaped guide rail system.
Technical parameters
Model: Hz-3506A
Measurement range: 150(X)X75(Y)X150(Z)mm
Precision:
Linear precision: (3+L/200)um
Repeat precision: 3um
Smallest display digits: 0.001mm
Measurement mode:
Image type + probe type
Import high-resolution colour camera
Taiwan system 0.7-4.5 complex modulation Zoom Zoom lens rate changes: 20X-220X
Working distance range: 115mm(Image)
World brand-name computer: DELL/PC/17" Flat-screen computer
Measurement software: YR-3T
Whether to conform to the EMC experiment: OK
Ghe weight: 140Kg
Appearance size: 550*500*680m
MWorking voltage: 220V
Measuring head:
Single direction repeat precision: ≤ 0.75um
Measuring head pressure adjustment: 0.1-0.3N
Screw teeth: M2-M3
Measuring needle tyndareus long pole materials: Stainless steel or tungsten steel
| Linear accuracy | (3+L/200)um |
| Repeatability accuracy | 3um |
| Minimum displayed | 0.001mm |
Measuring method:
| Image type + probe type |
| Import of high-resolution color camera |
| Make in Taiwan | 0.7-4.5Zoom zoom magnification changes: 20X-220X |
| Switzerland TESA probe | ¢ 2, ¢ 3mm |
| Working distance range | 115mm (Image) |
| World famous brand PC | DELL / PC machine / 17 "flat screen computer |
| Meausuement software | YR-3T |
| Operating temperature | 20 ± 1 °C |
| Operatig temperature | 13-35 °C |
| EMC compliance test | OK |
| Machine weight | 140Kg |
| Dimensions | 550 * 500 * 680mm |
| Operating voltage | 220V |
Probe:
| Single direction repeatability | ≤ 0.75um |
| Probe pressure adjustment | 0.1-0 .3 N |
| Thread | M2-M3 |
| The pin Ting-long rod material | stainless steel or tungsten |
