Product Specifications
| Prod Model: |
bt-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
4kw |
| Voltage: |
380V /50Hz(Customized) |
| Screw&Screen: |
Stainless Steel |
| Screen Size: |
0.5/0.7/1.0mm |
Product Description
Product Description

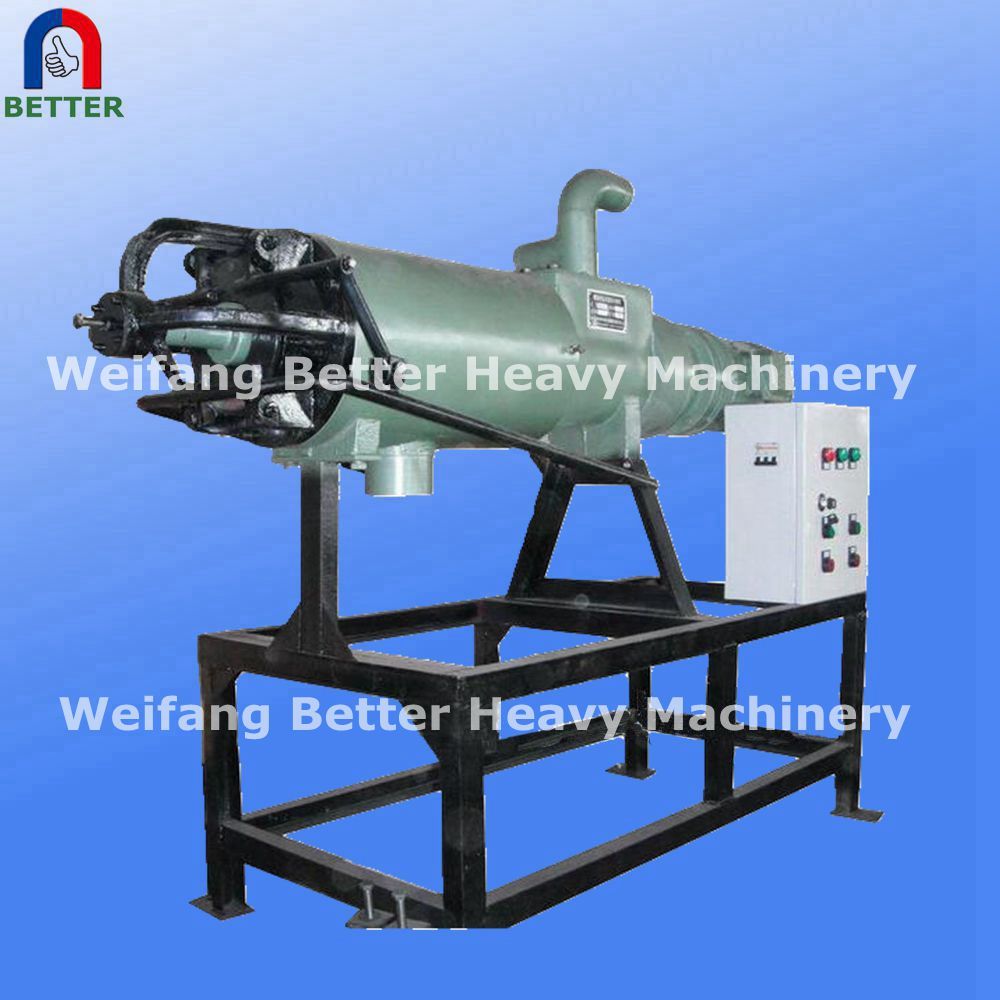

Third-generation Screw Press Solid Liquid Separator / Separating Machine
(Poultry/Cow/Pig/Chicken/Cattle Manure/Dung/Feces Dewatering Machine)
Advantages of diary cattle feces / dung / manure disposing machine
*The screw and the filter screen are made of thicken SUS304 which is specially processed.
*Advanced "V "shape strip filter screen making technology, no blocking during working.
*The machine adopts new type convenient washing hole and larger bowl, it is easier to maintain and clean.
*Integrated hopper design, larger application scope.
Working principle of diary cattle feces / dung / manure disposing machine
The LX series solid liquid separator is a screw squeezing type separating equipment, which uses a submerged pump to pull the flush fowl manure, cow manure, pig manure, etc. Into the squeezing bowl, the materials are pressed and pushed by the screw, the dry materials will be discharged through the discharge hole at the end of the machine, meanwhile, the liquid will be squeezed out of the screen and discharged through the pipes. After processed by this machine, water content in manure is less than40- 50%.
Application of solid liquid separator
The LX series solid liquid separator is used to separate solid content from liquid, it can reduce the water content of animal(cow, pig, chicken, etc. ) dung/manure/feces, acid sludge, medicine dregs, kitchen rubbish, and many other dregs. The solid content of the raw material can be 30-40%, and the moisture of the final product is about 40-50%, that means you can not press out any water by hands.
The liquid material can be directly used for crops, the solid one can be sent to the regions that is lack of fertilizer to improve the soil structure. What is more, after fermentation, the solid organic fertilizer can be made into organic compound fertilizer.
Main models and specification of diary cattle feces / dung / manure disposing machine
Model |
BT-200 (flush manure) | BT-280 (flush manure) |
Main motor power |
4kw |
5.5kw |
Voltage |
380V /50Hz(customized) |
380V/50Hz(customized) |
Screw&Screen |
Stainless steel |
Stainless steel |
Screen Size |
0.5/0.7/1.0mm |
0.5/0.7/1.0mm |
Working capacity |
Cow manure |
7-10m3/h |
10-15m3/h |
Chicken manure |
2-3m3/h |
5-7m3/h |
Pig manure |
8-12m3/h |
15-25m3/h |
Dimension |
2050*800*1450mm |
2100*900*1550mm |
Weight |
500kg |
630kg |
Spare parts
No. |
Item |
Type |
Quantity |
1 |
Submerged Pump |
3kw |
1set |
2 |
Wire braided rubber hose |
/ |
10m |
3 |
Electric control cabinet |
/ |
1 set |
