Product Specifications
| Prod Model: |
CT-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Products Name: |
PVC Gabion Wire Mesh |
| Mesh Hole: |
7*9cm 8*10cm 10*12cm |
| Selvedge: |
2.5mm-4.5mm |
| Color Options: |
Green Black Grey or Customize |
| Certificate: |
ISO CE |
| Products Life: |
70-80years |
| Advantage: |
Cheap Price, Fast Delivery |
| Service: |
Best Service |
| Export Markets: |
Global |
| Sample: |
Free |
| Hole Shape: |
Hexagonal |
| Application: |
Bank Protection Revetment |
| Material: |
PVC Coated Steel Wire |
| Technics: |
Woven |
| Size: |
3m x 1m x 1m |
| Aperture: |
80*100mm |
| Usage: |
Civil Engineering |
| Surface Treatment: |
PVC Coated |
Product Description
Product Description

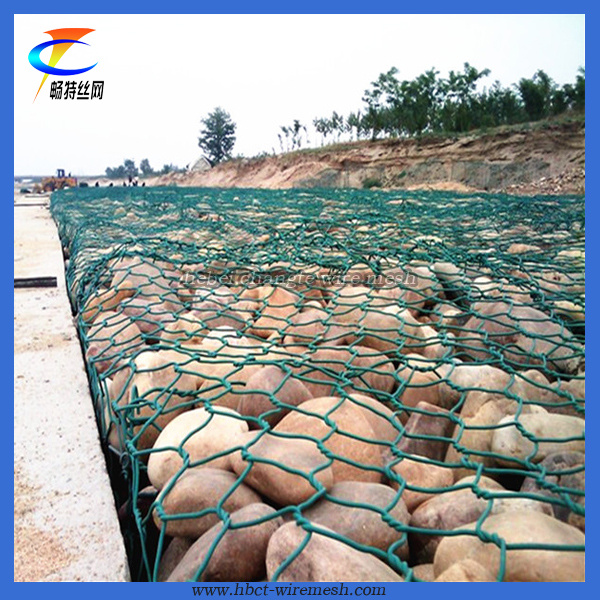

PVC Coated Gabion Baskets/Gabion Wire Mesh
Gabion wire mesh is a metal wire woven angular network (six angle network) made of net cage, the use of metal diameter is based on the size of hexagonal varies. If the metal wiremetal coating is hexagonal, use the line diameter of 2.0mm to 4.0mm metal wire, if it is sixangle network PVC metal wire coated woven, then use the outside diameter is 3.0mm to 4.5mm of the PVC (metal) line, the edge of the box is used to line than the six angle line number one line.
Characteristic.
(1) economy. Only the stone into the cage and sealing.
(2) the construction is simple, do not need special technology.
(3) has the very strong resist natural damage and corrosion resistance and resistance to bad weather ability.
(4) can withstand large range of deformation, but still the collapse.
(5) the gap between silt stone cage to plant production, with the surrounding naturalenvironment can be fused into one.
(6) has good permeability, can prevent the damage caused by the fluid static.
(7) save transportation cost. It can be folded up the transportation, assembly on site.
Use:
(1) the guidance and control of rivers and flood
(2) release flood waters dam and diversion dam
(3) rockfall protection
(4) to prevent water and soil erosion
(5) bridge protection
(6) the solid earth structure
(7) coastal defense works
(8) in Port Engineering
|
Galfan Gabions Mesh Standard |
|
Opening (mm) |
Wire Diameter(Metal Wire) (mm) |
Wire Diameter / Inner/Outside(mm) |
Strands |
|
60X80 |
2.0-2.8 |
2.0/3.0-2.5/3.5 |
3 |
|
80X100 |
2.0-3.2 |
2.0/3.0-2.8/3.8 |
3 |
|
80X120 |
2.0-3.2 |
2.0/3.0-2.8/3.8 |
3 |
|
100X120 |
2.0-3.4 |
2.0/3.0-2.8/3.8 |
3 |
|
100X150 |
2.0-3.4 |
2.0/3.0-2.8/3.8 |
3 |
|
120X150 |
2.0-4.0 |
2.0/3.0-3.0/4.0 |
3 |
Our company supplys different kinds of products. High quality and favaroble price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
