Product Specifications
Prod Model: |
F23-A++ |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Application: |
Industrial Machinery |
Product Description
Construction remote control
A. Over 4.3 billion unique ID code
B. 10 single step pushbuttons (disabled NO. 3 and NO. 4 buttons)
Construction remote control
Low cost for electronic chain hoist monorail
Industrial remote control crane remote control remote control telecontrol overhead crane remote control

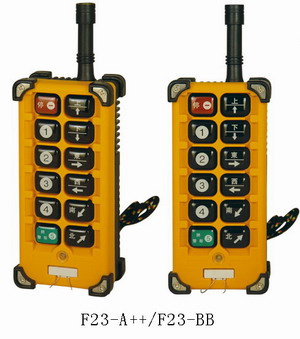

F23-A++
Transmitter
Dimension: 164*75*46 mm
Weight: 315g (without batteries)
Receiver
Dimension: 172*166*87 mm
Weight: 900g
Low power consumption transmitter 2 AA batteries last up to 4 months
Over 4.3 billion unique ID code available
Temperature range -40° C~ +85° C
Microsoft Windows based software for easy customize configuration
Structure: Glass-Fiber
10 single step pushbuttons (disabled NO. 3 and NO. 4 buttons)
11 commands
With battery voltage warning device, the power is cut off during low power.
Safety key switch to prevent from unauthorized user
Up/down, east/west, north/south can be set as to mutual inhibition or not.
Power key can be set to start, acceleration, toggle switch, general or other functions
Spare No. 1 and No. 2 keys can be set to general, interlocking, toggle switch, on/off or other functions
Control distance is up to 100 meters
Transmitter power: 3V DC (2 AA batteries last up to 4 months)
Receiver power: 380V/220V/110V AC or 12V/24V/36V/48V DC
Output contact capacity: 5A sealed relay output (AC 250V/10Arelays, 5A fuse contacts).
Standard Configuration
One transmitter
One receiver
Receiver with 1 meter cable
Operation and maintain manual
Application
MD double-speed electric hoist or double-speed, double-hook/single-speed traveling crane and industrial remote control with less than 11 contacts
F23 series
Enclosure protection class is IP 65
Low power consumption 2 AA batteries last up to 2 months
Operation functions can be set by F-23 software (compatible with WIN98 / ME / 2000 / XP)
Control distance is up to 100 meters
Receivers are with built-in antenna (receiver can be installed with additional accessories: Passive antenna)
New flexible design for self-assemble and setting
Multiple safety of hamming code and 32 bits unique ID codes
Temperature range: -40° C~ +85° C
New flexible design for customized contact outputs of the industrial remote control. Main power (MAIN), common line (COM) or relays' NO/NC contacts can be freely connected with jumpers.
RECEIVER- F23
Over 4.3 billion unique ID code
Temperature range: -40° C~ +85° C
Enclosure protection class IP 65
Microsoft Windows based software for easy customize configuration
Structure: Glass-Fiber
Receiver power: 110/ 220V/380V/VAC, or 12/24/36/48 VDC.
Output contact capacity: 5A sealed relay output (AC 250V/10A relays, 5A fuse contacts).
Receiver: F23-RXC |
Applications |
Doors, entrance, gates, winches, pumps, crushers, lighting, conveyor belts, hydraulics etc |
Working frequency |
315 MHz |
High-frequency channels |
80 |
Unique codes |
4.3 billions |
Power supply |
110/ 220V/380V/VAC, or 12/24/36/48 VDC. |
Power consumption |
20~400m A |
Protection |
IP65 |
Temperature |
-40° C~ +85° C |
Control distance |
Approx. 100M |
Recommended transmitter |
F23 series transmitters |
