Product Specifications
| Prod Model: |
RX20-200W-T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wire Wound Resistor: |
Be Glaze Wirewound |
| Resistance: |
Sensitive Resistor |
| Function For Resistance: |
Shunt Resistor |
| Installation: |
DIP Resistor |
| Material: |
Wire-wound Resistor |
| Package Type: |
Throught Hole |
| Type: |
Fuse Resistor |
| Quantity: |
PCS |
| Brand: |
Kaec |
Product Description
High quality Wire Wound Resistor 1.over 8 years experience, Professional resistor manufacturer.
2. Good overload resistor.
3. RoHS & ISO9001&ISO14000
4. OEM.Product details
Model / specification: RX20T-200W
Brand / Brand: KA
Environmental protection category: lead free environmentally friendly products
Main uses: industrial electronic equipment
Power classification: high power (> 5W)
Accuracy class: common type
Outline structure features: the type of the core of the hollow circular tube is the same as the lead wire.
Package form: bulk
Adjustable glazed wire wound resistor RX20T-500W resistance range is 5.1~10K, 1%, 5% and 10% accuracy,
Main performance index
Rated power (W) resistance range (omega) allowable deviation of resistance temperature coefficient (%)
(10-6 / C)
RX20
|
| 8W | 5.1~3.3K | - | ±1
±5
±10 | ±250 |
| 10W | 5.1~10K | 5.1~200 |
| 15W | 5.1~15K | 5.1~220 |
| 20W | 5.1~20K | 5.1~430 |
| 25W | 10~24K | 10~510 |
| 30W | 10~30K | 10~1K |
| 40W | 20~51K | 20~1.2K |
| 50W | 20~51K | 20~1.5K |
| 75W | 20~56K | 20~2K |
| 100W | 24~62K | 24~2.7K |
| 150W | 20~150K | 20~4.3K |
| 200W | 4.7~12K | 5.1~3K |
| 200/250W | 4.7~12K | 5.1~3K |
| 300W | 4.7~12K | 5.1~3K |
| 400W | 5.1~10K | 6.2~3K |
| 500W | 5.1~10K |
RX20 power power type glaze line around the glazed surface film resistance, good heat dissipation, resistance to oxidation and corrosion resistance, can be used for a long time in harsh environments. The main uses for the aging resistance, braking resistance, braking resistance, etc.; generally used in DC or low frequency AC circuit. T type adjustable resistance.
Features and uses
Power, wide range of application
The resistance, surface glaze, corrosion resistance, high temperature resistance, can be used in harsh environments
, moisture resistance, high insulation, strong overload capability, good thermal stability, long service life
Type T, adjustable resistance, easy regulation resistance
Zero power test circuit, inverter, load, lifting, brake, electric power, shipbuilding, industrial automation, mechanical and electrical equipment

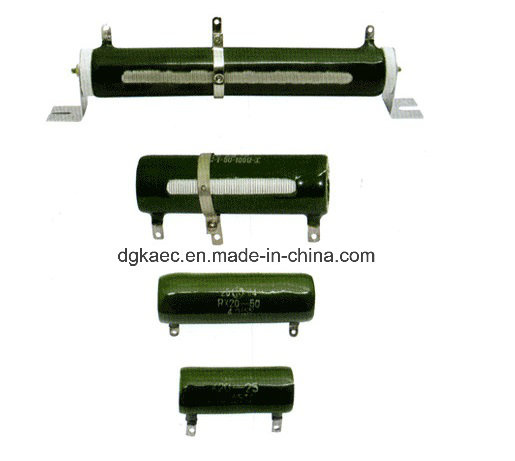

RX20 power wire wound resistor is with resistance wire around the insulating skeleton after insulation processing package into a class of resistors, resistance wire generally use a resistivity of Ni Cr, Mn Cu alloy made insulation, the framework of the ceramics, plastics, coated insulating layer of the metal skeleton. The characteristics of small temperature coefficient and high accuracy. In the online winding resistor, a ceramic skeleton is used to heat the high power wire wound resistor, which is characterized by a large power dissipation, and can work at 150 ~300 for the environment.Online wound resistor in, RX20T is an adjustable wire wound resistor, it is online around the outside is provided with a mobile card ring as the leading out end of the contact, above the glaze paint layer and leaving a narrow window, exposing the winding contact and snap ring through a contact in the contact mobile is to regulate the resistance, so it is a variable common is enamel wire wound resistor and painted wire wound resistor two.
