Product Specifications
| Prod Model: |
6S-2100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ore: |
Gold, Copper, Silver, Tungsten |
| Delivery Time: |
Within a Week |
| Mining Object: |
Metallic and Non-Metallic Ore Excavator |
| Gold Shaking Table: |
Gold Concentrator |
| Gravity Mining Machine: |
Table Concentrator |
| Long Life Span Shaking Table: |
Shaker Table |
| Type: |
Gravity Separator |
| Voltage: |
220V |
| Weight: |
<1T |
| Certification: |
CE |
| Warranty: |
1 Year |
| Color: |
Black |
| Customized: |
Customized |
| Condition: |
New |
Product Description
IFeatures:
1. Fiber glass material
2. High recovery ratio
3. Extend the life of using.
4. High concentration ratio
5. Easy installation
6. Simple operation
7. Deck constructed of fiber glass
8. Three different decks to choose
9. Long working life
10. Adjustable stroke length
IIIntroduction
Shaking table is effective gravity separation equipment which can be used for different operations, applies to the sorting of nonferrous metal, ferrous metal, rare and precious metal, gold and nonmetallic ores of fine grains. It can carry out ore concentration operation independently and also can operate in conjunction with jip, screw separator, centrifugal separator. Shaking table is to make separations based on the difference of specific gravity of feed materials reciprocating asymmetrical movement and the stratification performance of the inclined table surface in the lateral water flow with obvious zone of the minerals with different specific gravities on the table, high quality of concentrates produced, convenient operation and adjustment.
IIIApplication and performance
Shaking table is widely used in separating tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, titanium and coal. Concentrator Shaking Table is one of the main equipments of gravity concentration. Concentrator Shaking Table is not only widely applied on separating tungsten, the tin, the tantalum niobium and other rare metals and the noble metal ore. Also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaker effective recycling granularity scope is 2-0.037 millimeters.

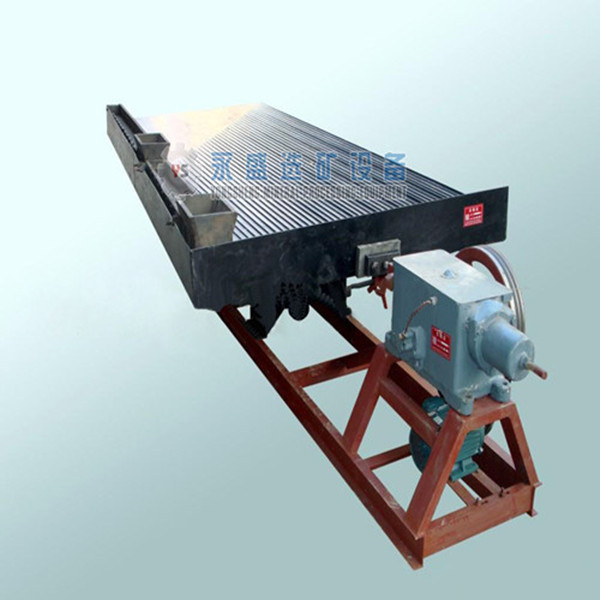

4The structure of the Shaking table
Shaking table is mainly composed of eight components, which are table head, electric motor, slope control, deck, feed box, water tank, gun spokes and lubrication system.
1. Head Motion: Are furnished with a totally enclosed self-oiling head motion of heavy cast iron
To contain an oil reservoir for perfect splash lubrication This feature protects the moving parts, reducing operating and maintenance costs to a minimum.
2. Decks: The decks are constructed of steel framework and covered 16mm fiberglass with corundum, this cover its strength
Reaches as high as 70% of steel, the features of this design are stronger, wear-resistant,
Corrosion-resistant, and no distortion, it lengthens the working-life of machine and thus allows machine perform
Perfectly on different mineral and different weather condition.
3. Feed and Water Box: A wooden feed distributing box with hopper and a long water box are attached to the iron of the deck, giving a very even distribution of feed and water.
4. Base: A choice of ordinary type, groove steel support or big channel steel support is available.
5. Working Principle: The vertical and reciprocating motion of the deck is drove by crank-connecting. The motor drives the eccentric shafts to rotate and the connecting rod to move up and down. When the connecting rod makes a downward movement, the toggle plate will back shaft and reciprocating level backward.
At the same time, through the tension of spring, it drives the deck to move backward, because the deck is connected with the reciprocation lever by linkage seat. When the rod moves upwards, through the force from spring tension, the deck makes a forward movement.
| Model | Unit | 6S-4500 | 6S-3000 | 6S-2100 |
| Bed Size | mm | 4500/1850/1560 | 3000/1620/110 | 2100/1050/850 |
| Stroke | mm | 10-30 | 6-30 | 12-28 |
| Times of stroke | /min | 240-420 | 210-320 | 210-320 |
| Slope | o | 0-5 | 0-10 | 0-8 |
| Feed size | mm | 2 | 2 | 2 |
| mm | 0.074 | 0.1 | 0.074 |
| Feed density | % | 10-30 | 10-30 | 10-30 |
| t/h | t/h | 0.4-0.7 | 0.3-1.5 | 0.2-1 |
| power | kw | 1.1 | 1.1 | 1.1 |
| capacity | t/h | 0.5-1.8 | 0.7-1.5 | 0.4-0.8 |
| t/h | 0.5-0.8 | 0.4-1 | 0.3-0.5 |
| Overall dimensions | mm | 5900/1850/800 | 4070/1320/780 | 3040/1050/1020 |
| Weight | kg | 1100 | 700 | 420 |
