Shantui Bulldozer SD22 with Cummins Engine

Name: Shantui Bulldozer SD22 with Cummins Engine
Brand: china-manufacturer-directory.com
SKU: 730089005
Availability: InStock
Rating: 4.3 (96 reviews)

Price:	US $ 1Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1Set
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	SD22
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Total Weight:	23400kg
Engine Mode:	Ntaa855-C280s20
Engine Rated Power:	162kw
Engine Rated Speed:	1800r/Min
Track Board Width:	560mm
Land Pressure:	0.077mpa
Blade Width:	3725mm
Blade Height:	1315mm
Blade Lifting Height:	1210mm
Walking Mode:	Crawler
Condition:	New
Type:	Medium-sized Loader
Certification:	ISO9001: 2000
Load And Unload Method:	Front Discharge

Product Description

Product Name: Shantui Bulldozer SD22 With Cummins Engine

Product Main Features:

The SD22 bulldozer is the new generation of the TY220. It's equipped with a hexahedron damping cab, which features a beautiful design, wide visibility, and comfortable operation, as well as a highly efficient charged engine, which has excellent power, reliability and a long service life. It is also equipped with an improved hydraulic drive system with hydraulic control technology, front-extending anti-rolling frame and an advanced structure, providing reliable quality and convenient and flexible operation.

The SD22 uses Shantui's patented central lubrication technology, central pressure measurement and automatic track tensioning, as well as a GPS satellite positioning system. With options such as straight tilt, angle, U type and semi-U type blades, single/triple shank rippers and a mechanical winch, the SD22 has various capabilities allowing it to adapt to and work in a wide range of earth moving projects.

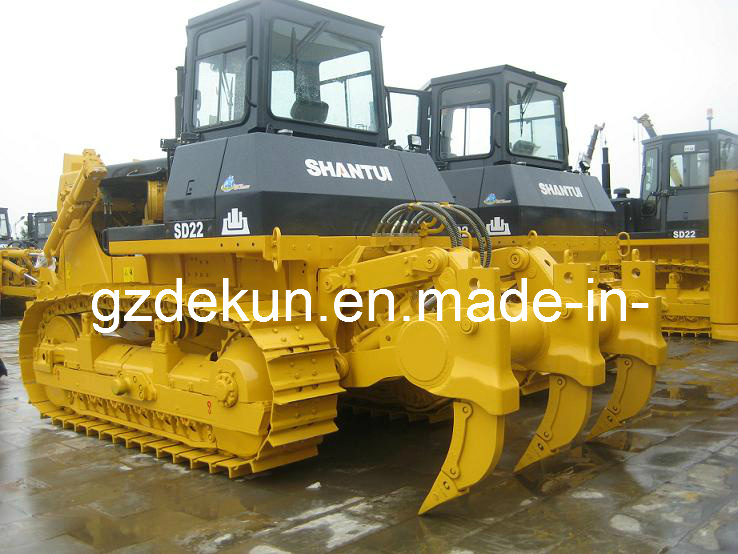

Product Pictures:

Product Specification:

ITEM	UNIT	SD22
L×W×H (Ripper not included)	mm	5750×3725×3395
Operating weight (Ripper not included)	t	23.4
Engine	-	Cummins NT855-C280S10
Rated power	kW/rpm	162/1800
Gradeability	°	30
Blade type	-	Straight tilt blade U-blade Semi-U blade Angle blade
Blade width	mm	Straight tilt blade 3725×1315 U blade 3800×1343 Semi-U blade 3725×1374 Angle blade 4365×1055
Dozing capacity	m 3	Straight tilt blade 6.4 U blade 7.5 Semi-U blade 7.0 Angle blade 4.7
Ma× drop below ground of blade	mm	540
Lift height of blade	mm	1210
Ripper type		Single ripper Three-shank ripper
Ripping depth of ripper	mm	Single ripper 695 Three-shank ripper 666
Lifting height of ripper	mm	Single ripper515 Three-shank ripper 555
Number of carriers (each side)	-	2
Number of track rollers (each side)	-	6
Number of track shoes (each side)	-	38
Width of track shoe	mm	560
Track gauge	mm	2000
Ground length and ground pressure	mm/MPa	2730-0.077
Pitch	mm	216
Forward speed	km/h	0–3.6
		0–6.5
		0–11.2
Reverse speed	km/h	0–4.3
		0–7.7
		0–13.2
