Solderability Testing Device for PCB
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
KH23 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
190X250X80 |
| Type: |
Material Testing Machine |
| Weight: |
0-100Kg |
| Power Source: |
AC220V |
Product Description

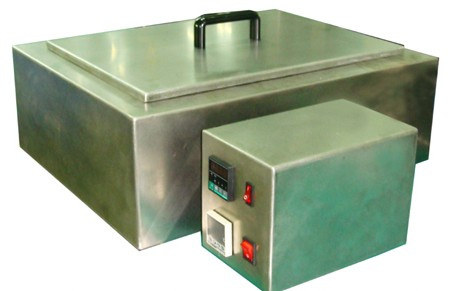

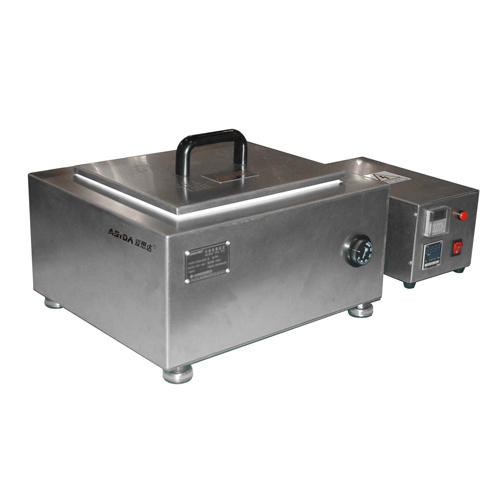

This machine is used to test solderability and heat stress for PCB.
Features1.Internal container is made by special material, which conforms to the lead-free requirement .2.The design is patented. It adopted PID temperature adjustment unit to make temperature stable, uniform and precision.3.It contains test time adjustment and alarm functions which make our product more hommization.4.Main body and control box are divided to make system more safety.
Model
Item | KH23 | KH33 |
| Internal dimension | 190×250×80(L×W×H) | 250×420×100(L×W×H) |
| Shape diameter | 450×380×320(L×W×H) | 617×495×310(L×W×H) |
| Control box dimension | 261×160×192(L×W×H) |
| Volume of soldering tin | 1.90~2.53L (13.4~18.0kg) | 5.2~7L(38kg~51kg) |
| Power requirement | AC220V 50Hz |
| Power | 1.5kw±5% | 3kw±5% |
| Temperature adjustment range | ~300° |
| Weight | 35kg | 45kg |
