Product Specifications
Product Description

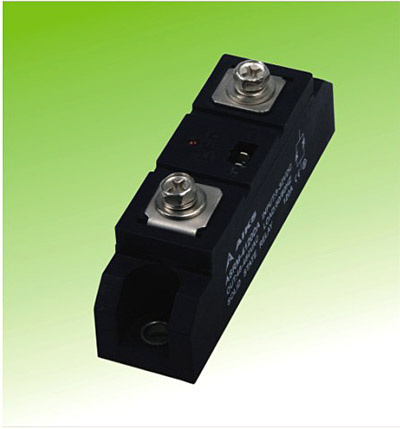

Solid State Relay(ssr latching relay)ASRM-280DA
Input voltage: 3-32VDC
Load voltage: 24-240V
Load current: 80A/100A/120A
Outline size: 94*25*39(mm)
Model number
|
ASRM
|
Rated operational voltage
|
24-480Vac
|
Rated operational current
|
80-305A
|
Rated operational frequency
|
45-65Hz
|
Rated input control voltage
|
3-32Vdc
|
Pick-up voltage
|
---
|
Drop-out voltage
|
---
|
Input current
|
4.5-20mA
|
Pick-up and Drop-out time
|
10ms
|
Input-ON indication
|
LED
|
Control type
|
Zero crossing detection
|
Off-state leakage current
|
4.5mA max
|
On-state Voltage drop at Imax
|
1.6Vac
|
Dielectric Strength for 1min
|
2500Vac
|
External dimensions (mm)
|
94x25x39
|
Terminals
|
Screw
|
Operational temperature (°C)
|
-30 to 80
|
Humidity max (no condensation)
|
95%
|
AIKS Electrical & Electronics from HongKong. Since company founded for more than ten years, we engaged in designing, developing, producing and time relay, etc. Besides, we also manufacture digital ammeter and voltmeter, counter, liquid-level controller, photoelectric switch, and relay socket, rocker switches, push switches, temperature controller and so on. We adopt advanced production quality control system, and passed TUV ISO9001 quality control system certificate early. Because of our excellent quality, we have obtained CQC certificate, CE certificate, CCC certificate etc. At present, we are applying the UL, cUL certificates. We have advanced production facility and COTS; We now own a building of 12000 m2 for high-new technological production, Besides, we have a team of technical personnel and managers who have received strict train.
