Specialized in Produced Asnu/Csk/DC One Way Bearing
| Price: |
US $ 6-11.0/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Model: ASNU CSK CSK..2RS AS(NSS) FE HF DCFeatures of one way bearings:| DESCRIPTION |
| Material | Chrome steel GCr15 (CSK ASNU DC FE) |
| ST14 Low carbon steel (HF HFL OWC) |
| Structure | CSK is sprag type freewheel with 62 series ball bearing |
| ASNU is roller type freewheel non bearing supported |
| DC is a sprag type freewheel cage without inner or outer races |
| HF is drawn cup needle roller clutches |
| Application | CSK: Printing machine, packing machine, scooter, electric motor |
| ASNU: Printing machine, packing machine, textile machine,toy |
| FE: Airplane model, printing machine, packing machine |
| DC: Exercise machine, Hydraulic forklift |
| HF: Printer , Copier |
| Stock | Rich stocks of above items |
| OEM | Non-standard model is available to be customized |
Catalogue of CSK One Way Bearings | Type | Size | Bearing series | Dimension | Bearing loads | Weight | Drag torque |
| dynamic | static | | |
| CSK(KK) | d | | TKN1) | N max | Outer Dia. | Length | C | C0 | | TR |
| [mm] | | [Nm] | [min-1] | [mm] | [mm] | [kN] | [kN] | [kg] | [Ncm] |
| 8* | - | 2.5 | 15000 | 22 | 9 | 3.28 | 0.86 | 0.015 | 0.5 |
| 10 | 6200 | 6.8 | 13000 | 30 | 9 | 4.5 | 1.56 | 0.032 | 0.36 |
| 12 | 6201 | 9.3 | 10000 | 32 | 10 | 6.1 | 2.77 | 0.04 | 0.7 |
| 15 | 6202 | 17 | 8400 | 35 | 11 | 7.4 | 3.42 | 0.06 | 0.9 |
| 17 | 6203 | 30 | 7350 | 40 | 12 | 7.9 | 3.8 | 0.07 | 1.1 |
| 20 | 6204 | 50 | 6000 | 47 | 14 | 9.4 | 4.46 | 0.11 | 1.3 |
| 25 | 6205 | 85 | 5200 | 52 | 15 | 10.7 | 5.46 | 0.14 | 2 |
| 30 | 6206 | 138 | 4200 | 62 | 16 | 11.7 | 6.45 | 0.21 | 4.4 |
| 35 | 6207 | 175 | 3600 | 72 | 17 | 12.6 | 7.28 | 0.3 | 5.8 |
| 40 | - | 325 | 3000 | 80 | 22 | 15.54 | 12.25 | 0.5 | 7 |
Catalogue of ASNU one way bearing | Type | Size | | Overrunning speed | | | | | | Weight | Drag torque |
|
| ASNU | dH7 | TKN1) | nimax | namax | Dn6 | D5 | L | b | t | | TR |
| [mm] | [Nm] | [min-1] | [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | [Ncm] |
| 8 | 12 | 3300 | 5000 | 35 | 28 | 13 | 4 | 1.4 | 0.07 | 1.6 |
| 12 | 12 | 3300 | 5000 | 35 | 28 | 13 | 4 | 1.4 | 0.06 | 1.6 |
| 15 | 30 | 2400 | 3600 | 42 | 37 | 18 | 5 | 1.8 | 0.11 | 1.9 |
| 17 | 49 | 2300 | 3400 | 47 | 40 | 19 | 5 | 2.3 | 0.15 | 1.9 |
| 20 | 78 | 2100 | 3100 | 52 | 42 | 21 | 6 | 2.3 | 0.19 | 1.9 |
| 25 | 125 | 1700 | 2600 | 62 | 51 | 24 | 8 | 2.8 | 0.38 | 5.6 |
| 30 | 255 | 1400 | 2200 | 72 | 60 | 27 | 10 | 2.5 | 0.54 | 14 |
| 35 | 383 | 1200 | 1900 | 80 | 70 | 31 | 12 | 3.5 | 0.74 | 16 |
| 40 | 538 | 1100 | 1700 | 90 | 78 | 33 | 12 | 4.1 | 0.92 | 38 |
| 45 | 780 | 1000 | 1600 | 100 | 85 | 36 | 14 | 4.6 | 1.31 | 43 |
| 50 | 1013 | 850 | 1350 | 110 | 92 | 40 | 14 | 5.6 | 1.74 | 55 |
| 60 | 1825 | 750 | 1050 | 130 | 110 | 46 | 18 | 5.5 | 2.77 | 110 |
| 70 | 2300 | 600 | 950 | 150 | 125 | 51 | 20 | 6.9 | 4.16 | 140 |
| 80 | 3275 | 550 | 850 | 170 | 140 | 58 | 20 | 7.5 | 6.09 | 180 |
| 90 | 5325 | 500 | 750 | 190 | 160 | 64 | 20 | 8 | 8.2 | 230 |
| 100 | 7250 | 450 | 680 | 215 | 175 | 73 | 24 | 8.5 | 12.6 | 380 |
| 120 | 13500 | 370 | 550 | 260 | 215 | 86 | 28 | 10 | 22 | 650 |
| 150 | 26625 | 300 | 460 | 320 | 260 | 108 | 32 | 12 | 42 | 1000 |
| 200 | 44500 | 230 | 350 | 420 | 350 | 138 | 45 | 16 | 93 | 2000 |

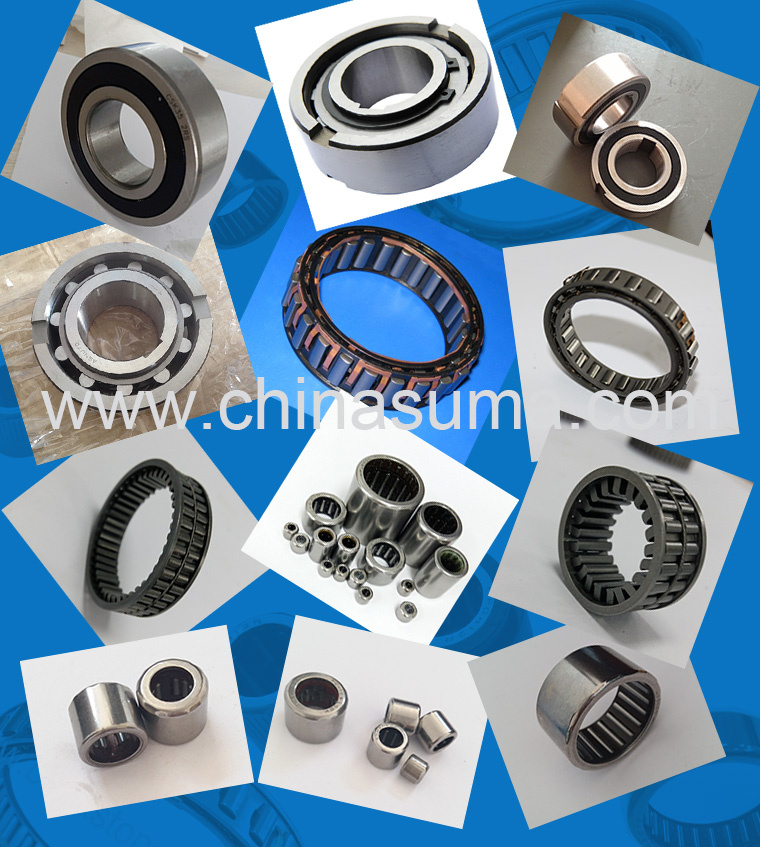

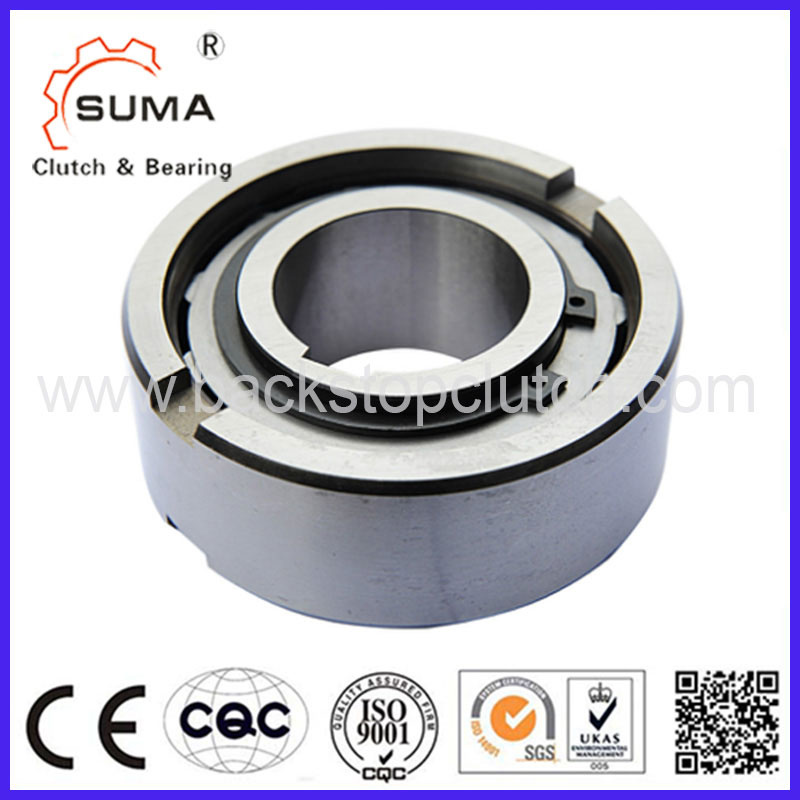

Detail Images

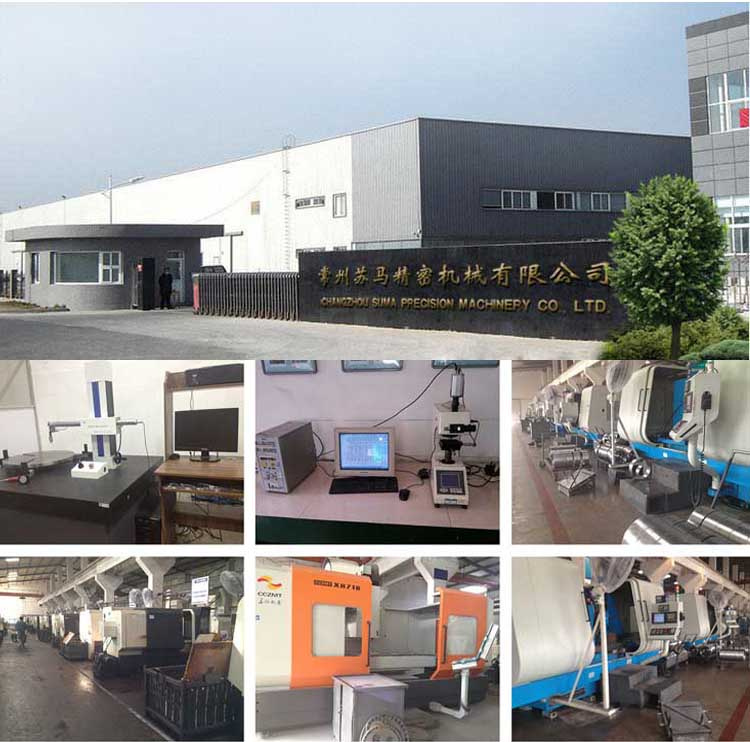

Production Show
| Prod Model: |
ASNU CSK CSK2RS AS(NSS) FE HF DC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Asnu/Csk/as/Fe/DC/Hf |
| Type: |
Roller/Sprag/ |
| Stock: |
Rich |
| Place Of Origin: |
Changzhou China(Mainland) |
| Export: |
Worldwide |
| Package: |
Single Box or as Your Requirements |
| Precision: |
P6 |
| OEM: |
Accept |
| Port: |
Shanghai;Ningbo |
| Delivery: |
in Stocks |
| Rolling Body: |
Ball Bearings |
| The Number Of Rows: |
Single |
| Outer Dimension: |
Small and Medium-Sized (',60-115mm) |
| Material: |
Bearing Steel |
| Load Direction: |
Radial Bearing |
| Separated: |
Unseparated |
Changzhou Suma precision machinery Co, Ltd. Is a manufacturer specialized in Producing Various one way bearing, one way clutch, backstop clutch, overrunning clutch, indexing freewheel, spherical plain bearing and cylindrical roller bearing with high technology.
The products are widely used in conveying machine, reducer, hoist, elevator, automobile, home appliances, textile machinery, printing machinery, food machinery and mine machines etc. In addition, special clutch bearings are also provided in accordance upon customers' Requirement for various applications.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
All of our products are engineered by superior production equipment, manufactured with advanced instrument to ensure high precision and reliable Performance.
We welcome you to visit our website, and do not hesitate to contact us.
