Product Specifications
Prod Model: |
THN-LT |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Material: |
Synthetic Fiber |
Usage: |
Dust Filter, Air Filter |
Filter Area: |
21 Sq M |
Outer Diameter: |
12.74inches |
Inner Diameter: |
8.38inches |
Length: |
26inches |
Temperature Limit: |
82c |
Pleat Height: |
2inches |
Construction: |
Galvanized |
Type: |
Industrial Filtration Filter Elements |
Medium Material: |
Dust Air |
Product Description

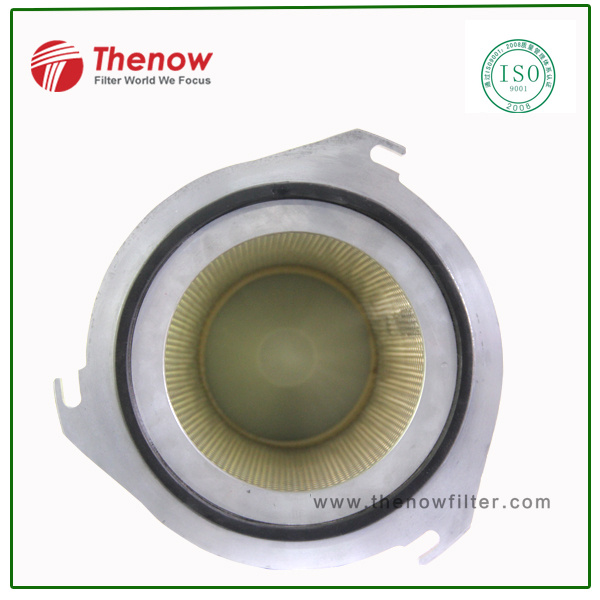

Spun Bonded Polyester Air Filter Cartridge,HEPA Filter
Filter media:Polyester
Selected Post-processing:Nano flame retardand
Nano
Anti-static
Flame-retardant
Oil,water proof
PTFE Membrane
PTFE Membrane flame retardant
Anti-static PTFE Membrane
Performance:Imported long fiber polyester fiber material,excellent moisture resistance
Excellent filter efficiency
Wide pleat spacing,great filter surface
Electrochemical plate top and bottom,no rust
Perforated zinc galvanized metal inner core,allows good airflow
Specialty chlorine rubber gasket to ensure airtight sealing
Impact resistance
Constructions:
1) Top Cap: OD324mm X ID213mm
2) End Cap: OD324mm X Bolt Hole14/16mm
3) Filter Media: Polyester
4) Source of media: USA, Finland or China
5) Length: 660mm
6) Steel Mesh: inner and outer
Dimensions
Model | OD (mm) | H(mm) | ID(mm) | Bolt hole(mm) |
TN10792220 | 201 | 559 | 92 | 9.5 |
TN112118218 | 308 | 470 | 295 | 17.5 |
TN112120223 | 308 | 518 | 196 | 23 |
TN11272611 | 324 | 660 | 213 | 14 |
TN112729214 | 324 | 750 | 213 | 14 |
TN11273010 | 324 | 764 | 213 | 15 |
TN113826214 | 352 | 660 | 240 | 16 |
TN113828222 | 352 | 711 | 240 | 22 |
TN113836214 | 352 | 914 | 240 | 14 |
TN114028222 | 356 | 711 | 247 | 22 |
TN11403910 | 356 | 991 | 243 | / |
TN114624223 | 373 | 622 | 263 | 23 |
TN114630214 | 373 | 762 | 262 | 14 |
TN114724223 | 374 | 610 | 262 | 22 |
TN115024222 | 383 | 622 | 254 | 23 |
TN11601110 | 406 | 292 | 244 | / |
TN11601110 | 406 | 292 | 245 | / |
TN11601110 | 406 | 292 | 291 | / |
TN11601210 | 406 | 305 | 292 | / |
TN116028214 | 406 | 718 | 291 | 14 |
TN116034214 | 406 | 876 | 291 | 14 |
TN116030214 | 408 | 762 | 291 | 14 |
TN116034214 | 408 | 864 | 292 | 14 |
TN11662010 | 422 | 508 | 269 | / |
TN11752614 | 445 | 660 | 356 | / |
TN11752610 | 447 | 660 | 311 | / |
TN11762610 | 447 | 660 | 356 | / |
TN117624214 | 448 | 610 | 311 | 14 |
TN11872010 | 476 | 508 | 356 | / |
TN11872510 | 476 | 635 | 356 | / |
TN11921010 | 489 | 263 | 327 | / |
TN11921310 | 489 | 351 | 327 | / |
TN12202410 | 559 | 629 | 395 | / |
TN12222510 | 565 | 635 | 448 | / |
Notes:
Both the size of the cartridge and the shape of the caps are available in various specifications. All configurations are changeable to meet the optimum performance of your applications. Please contact us directly for more technical information.
Application:Suitable for filtation of fine dust type in plastics,spray powder,sand blasting,pigment and wood industries.

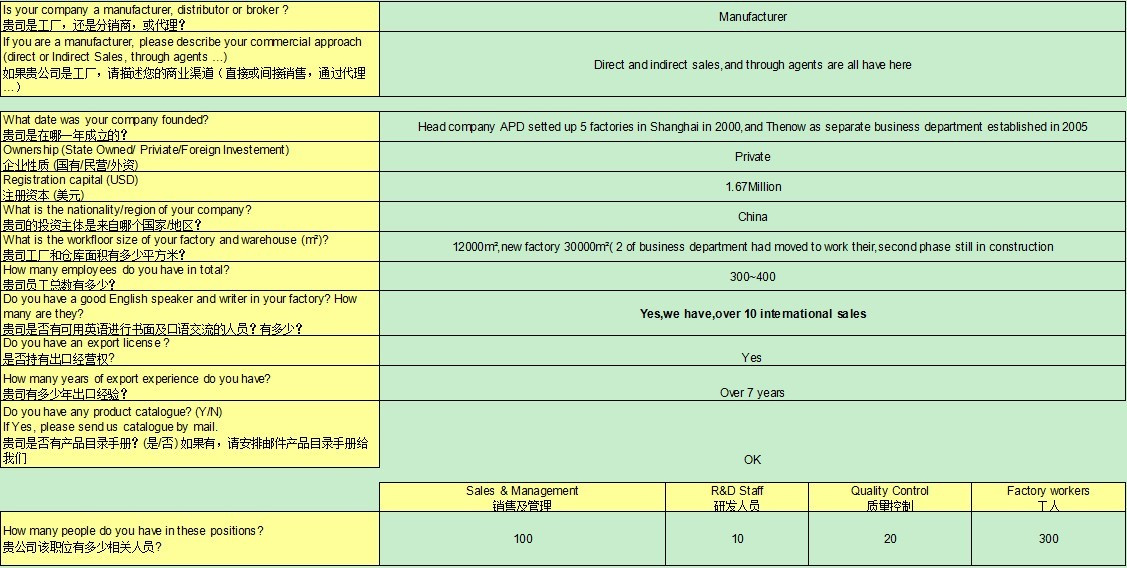

Thenow was established in 2005, belongs to Apureda Group as the wholly-owned subsidiary. Being a standard maker, Apureda Group is a global specialist in the development and production of filtering systems and solutions with 6 production units.
As one of Apureda Group's production units, Thenow's business is to provide customers with sustainable best-in-class air filtration products and services. We mainly focus on manufacturing industrial filters including dust collector filters, gas turbine intake air filters, oil mist collectors and air purifying filters.
Our business concept is to optimize our product quality and service in line with customer needs. Compared with standard filters, Thenow's products can reduce the operating costs of filtration systems, which keep their pressure drop low over a longer time. Our filters can catch more contaminants and operate at lower average resistances because of better designed filter media and larger filter media surface. Thenow's products are widely used in various fields such as petroleum, chemical industry, steel, paint, electronics industry, pharmaceutical industry, shipping, cement, gas turbine etc.
We are reliable because we know the market, we are honest and truthful. Our people, products and processes must always meet, or supersede, agreed results.
Thenow's qualified staffs is glad to support the customers in all matters concerning the efficiency and operations of our products. We provide our customers in very diverse sectors of industry with maximum benefit from our top-quality filters installed in their highly-complex plant. The flexible, customized package comprises a comprehensive filter program plus service support plus warranties - all at guaranteed fixed costs to bring our partners system solutions that are innovative, high-performance, economically efficient, environmentally friendly and offer excellent value for money.
- Technical service support and maintenance of mechanical and electrical system components
- Filter acceptance measurements
- Measuring dust emissions and immissions
- Technical acceptance testing of the filter and ventilation systems
- Checking the systems' technical condition, weak-point analysis
- Documentation of all work performed
