Surge Protective Device / Lightning Arrester

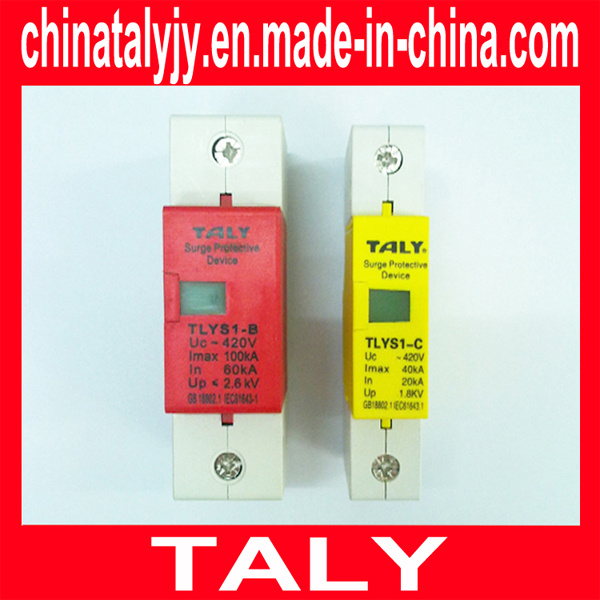

TLYS1-D Surge Protection Device SPD
Scope of application
TLYS1-B series surge protective deices are suitable in AC 50hz/60hz,230v/400v and the following TT,IT,TN-S,TN-C-S power supply system,etc.And can release 100KA overcurrent when lightning struck.Its design conforms to the IEC61643-1,GB18802.1-2002,GB50057-94 requirements,which is used in the distribution box of family-housing,computer center,information equipments,electrical facilities as well as plug seat box.
Product features
1.Modular-Protection unit can be replaced without a power outage.
2.Large current-Maximum tolerable is 100kA(8/20 us)
3.High speed-operating response time is less than 25ns
4.State display-Window color represents the working state of protector;Green(Normal),Red(Fault).
Installation guidance and electrical connection
B class lightning current PSD is suitable in equipotential link when lightning shock,which is installed at the junction between LPZOA or LPZ2 area and usually installed in inlet line low voltage main distribution cabinet.
TLYS1-C series surge protective devices are suitable in AC 50Hz/60Hz,230V/400V and the following TT,IT,TN-S,TN-C,TN-C-S power supply system,etc as the equipotential connection.Its design conforms to the IEC61643-1,
GB18802.1-2002,GB50057-94 requirements,witch is used in the protecting electrical device of low voltage power users,and prevents
Form surge current caused by atmospheric discharges (such as lightning) or operating over-voltage.It is equipped with heavy-duty zinc oxide varistors as a single voltage limiting device.
Installation guidance and electrical connection
TLYS1-C series protector may be close enough to protect applications installed on the client device on the need to protect the uplink side (pull cord connected immediately downstream line), connecting the outer conductor (L1, L2, L3) or neutral (N) and the client device grounding.Installed in LPZOA / OB area and LPZ1 area or LPZ1 area at the junction with LPZ2, usually installed in the inlet line low-voltage main distribution cabinet.
TLYS1A series surge protector is the surge protector with power supply type under the indoor installation and a port voltage limiting type,which is suitable for the TT, IT, TN-S, TN-C, TN-CS and other power supply system with AC 50/60Hz, rated voltage 230/400V and below, and for the protection
Of low voltage grid and all kinds of electrical equipment and control systems,or for suppressing transient overvoltagewithstand impulse voltage higher than the equipment so that discharges surge of energy.It also can limit the voltage of a variety of surge over-voltage so that it can protect systems circuit and equipment.
Purpose and working condition
Failure from the device
On the module of SPD,it sets failure a from the device.When the protector overheats and breaks down failure, failure from the device can automatically remove it from the power line out.Meanwhile gives an indication signal out.Signage displays green when protector is normal,while it displays red after failure from the device.
Remote signaling contact
SPD can be made with a variety of remote signaling contact.If a module or multiple modules of protector are fail, the contact will close and send fault information out.
Normal working conditions of protector:
1.Altitude does not exceed 2000m;
2.Ambient air temperature:Normal range:-5 ~+40 °C, extended range:-40 ~ +80 °C;
3.Relative humidity:30% -90% under the conditions of room temperature
4.No significant shake and shock vibration
5.No explosive medium, and the medium is not able enough to corrode metal and to damage the insulation of gas and dust (including conductive dust)
Main technical parameters is shown in Tables as below.


We also produce many various of surge protectors.
Welcome to contact with us if you are interested in.We are looking forward to starting the cooperation with you.
