| Price: | US $ 7-7.5/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Paypal,Western Union |
| Prod Model: | tb-45 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Current: | 10A |
| Timer: | 24hour |
| Type: | Timer |
| Usage: | Universal Counter |
| Function: | Subtract Counter |

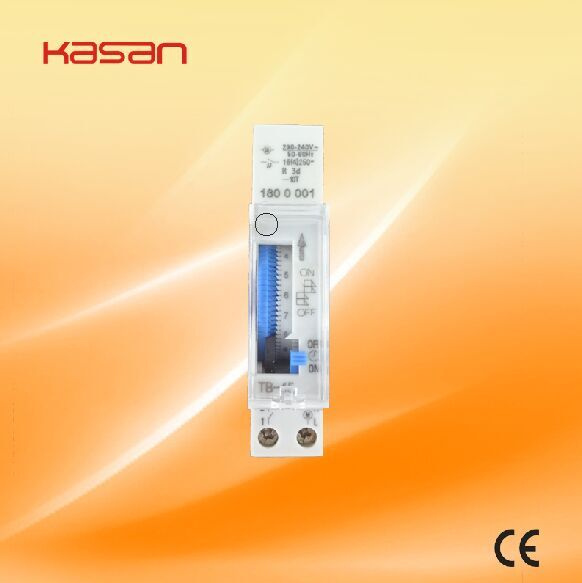

Model No.: TB-45
Movement Type: AC Type
Rated Voltage: 110-250V
Frequency: 45~60HZ
Movement: Quartz
Back up Power: 100Hours
Resistive load: 250V AC 16A
Full Timing Range: 24 Hours
Lamp Load: 2A
Inductive Load: 10A (cos =0.7 or more)
Motor Load: 4A
Minimum Setting Unit: 15 Minutes
Minimum Setting Interval: 15 Minutes
No. of ON-OFF Operations: 96 Times
1. For first time, please charge battery first for 10 minutes before use.
2. To set the correct time, turn the dial in direction of arrow ans set the present time.
3. Please observe the rated voltage and voltage tolerance of the time switch for adequate use.
4. Do not use the timer switch where: 4.1 There is much dust
4.2 There is much moisture
4.3 Outdoors or where it will be exposed to rain or water
4.4 There is much vibration
5.When the time switch is used for loads exceeding the rated capacity, it is imperative that the time switch be used in combination with one or more magnetic contactors according to each load.
6. Mounting methods: By 35mm Din Rail
