Product Specifications
Prod Model: |
TC-507M |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Name: |
Marine Mobile Radio |
Brand Name: |
Hys |
Type: |
Marine Radio |
Model: |
Tc-507m |
Color: |
Black |
Frequency Range: |
156.025-157.425MHz |
Channel No.: |
88 |
Work Voltage (V).: |
DC13.8V(±15%) |
RF Power Output: |
High 25W/ Low 1W |
Weight: |
742g |
Wavelength And Frequency: |
Long-wave |
Application: |
Military |
Certification: |
CE |
Condition: |
New |
Standard: |
Standard |
Screen: |
With Screen |
Style: |
. |
Product Description

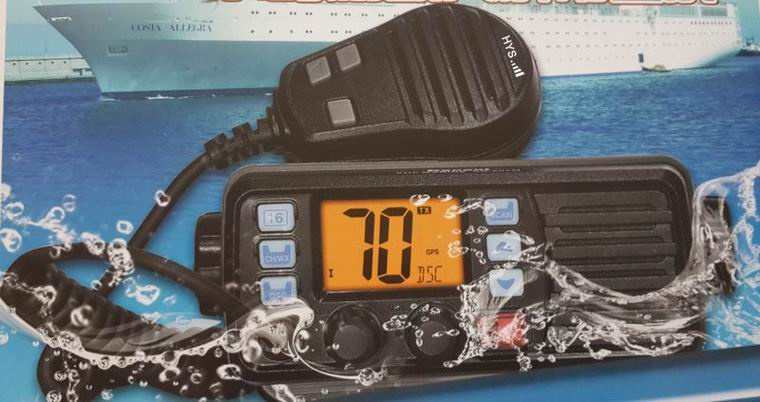

TC-507M High quality IP-X7 Water proof Class Marine mobile radio VHF marine radio
Product Description:
Main feature:
1. Dual Bands Frequency Watch or Three Bands Frequency Watch
2. Buil-in DSC
3. Favorite Channel Selectable
4. Aqua Quake Draining
5. 10 Weather Channels And Weather Alert
6. Large LED Display (Easy to see ,Easy to operate )
7. 1 Meter Depth For 30 Minutes Water-proof , IP-X7 Water proof Class
8. External GPS Receiver
9. Scan Resume Timer
Specifications:
Frequency Range: TX:156.025-157.425MHz, RX:156.050-163.275MHz
Channel No. : 88 channels
Type of Emission: FM(16K0G3E),DSC(16K0G2B)
Frequency Stability: ±2.5ppm
Work Voltage (V): DC13.8V(±15%)
Operating Temperature: -20°C~+60°C
Antenna Impedance: 50Ω
Dimensions(W×H×D): 153×67×152mm
Weight: 742g
Transmitter:
RF Power Output: High 25W/ Low 1W
Maximum Frequency Deviation: ±5KHz
Spurious and Harmonic: ≤ -70dB(H), ≤ -56dB(L)
Adjacent Channel Selectivity: ≥70dB
TX Audio Distortion: ≤10%
Current Consumption: ≤ 5.5A(High power), ≤ 1.5A(Low power)
Input Impedance: 2KΩ(Microphone)
Receiver:
RX Sensitivity: ≤0.2µV
Squelch Sensitivity: ±5KHz
Adjacent Channel Selectivity: ≥70dB
Intermodulation Anti-interference: ≥70dB
Spurious Response Rejection: ≥70dB
Max RX Current(mA): ≤1.5A
Rated Audio Output Power: ≥4.5W(10%)
GPS Signal Format: NMEA0183-2.0
Output Impedance: 4Ω (Speaker)
General |
Frequency Range | TX:156.025-157.425MHz |
RX:156.050-163.275MHz |
Channel No. | 88 channels |
Type of Emission | FM(16K0G3E),DSC(16K0G2B) |
Frequency Stability | ±2.5ppm |
Work Voltage (V) | DC13.8V(±15%) |
Operating Temperature | -20°C~+60°C |
Antenna Impedance | 50Ω |
Dimensions(W×H×D) | 153×67×152mm |
Weight | 742g |
Transmitter |
RF Power Output | High 25W/ Low 1W |
Maximum Frequency Deviation | ±5KHz |
Spurious and Harmonic | ≤ -70dB(H) |
≤ -56dB(L) |
Adjacent Channel Selectivity | ≥70dB |
TX Audio Distortion | ≤10% |
Current Consumption | ≤ 5.5A(High power) |
≤ 1.5A(Low power) |
Input Impedance | 2KΩ(Microphone) |
Receiver |
RX Sensitivity | ≤0.2µV |
Squelch Sensitivity | ±5KHz |
Adjacent Channel Selectivity | ≥70dB |
Intermodulation Anti-interference | ≥70dB |
Spurious Response Rejection | ≥70dB |
Max RX Current(mA) | ≤1.5A |
Rated Audio Output Power | ≥4.5W(10%) |
GPS Signal Format | NMEA0183-2.0 |
Output Impedance | 4Ω (Speaker) |
Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.
In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.
For more information about Truest, contact us now.
