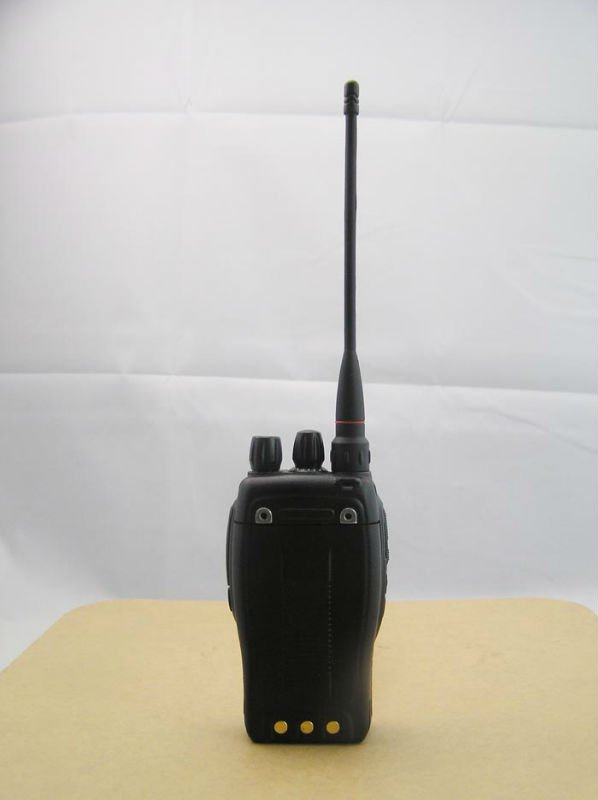

Handheld 2 way radio TC-666 Feature:
1. Frequency Range: VHF: 136-174MHz
UHF: 400-470 or 440-510 or 470-512 MHz
2. Output Power: 7W
3. Storage Channel: 16
4. Channel Spacing: 12.5/25KHz
5. VOX Function
6. DTMF sinalling Function.
7.50 group CTCSS and 105 groups DCS
8. Voice guide
9. Business channel lockout
10. Wired cloning
11. Voice encryption
12. Priority Channel Scan
13. Emergency Alarm
14. PC Programming
15. Wide/Narrow Bandwidth Shift
16. Squelch Level adjustable
17. High/Low power
18. TOT
|
TC-666 |
|
General Specification |
|
Frequency Range |
VHF:136-174MHZ
UHF: 400-470MHZ |
Frequency combination |
Phase lock loop frequency synthesize |
|
MemoryChannels |
16 Channels |
Operating Voltage |
DC7.4V |
|
Channel Spacing |
12.5/25KHz |
Battery Capacity |
1500MAH(Li-ion battery) |
|
Frequency Stability |
±2.5PPM |
CTCSS/DSC |
CTCSS:50 DCS:105 |
|
Antenna Impedance |
50Ω |
Operating Temperature |
-10 to +60 |
|
Weight(approx.) |
198g(Except battery and antenna ) |
Dimension(approx.) |
115×59×34mm (Except Antenna) |
|
Transmitter(Testing under TIA/EIA-603 standard) |
|
Output Power |
≤ 7 W (H) /2W (L) |
Modulation Mode |
16K¢F3E |
|
MAX. Frequency Deviation |
≤±5.0KHz |
Frequency Stability |
±5ppm |
|
Spurious Radiation |
≤60dB |
Residual Modulation |
≤-35dB |
|
Modulation Distortion |
≤5%(300-3000Hz) |
FM Noise |
≤-40dB |
|
Audio Distortion |
≤5% |
CTCSS Frequency Deviation |
0.75KHz±50Hz |
|
Receiver(Testing under TIA/EIA-603 standard) |
|
Sensitivity |
≤0.20uV |
Operating Bandwidth |
≥±7KHz |
|
Squelch Sensitivity |
≤0.15uV |
Frequency Stability |
±5ppm |
|
Adjacent channel selectivity |
≥60dB |
Spurious Rejection |
≥60dB |
|
Intermodulation Rejection |
≥60dB |
FM Noise |
≤-45dB |
|
Audio Power |
≥600mW |
Audio Distortion |
<5% |
Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.
In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.
For more information about Truest, contact us now.
