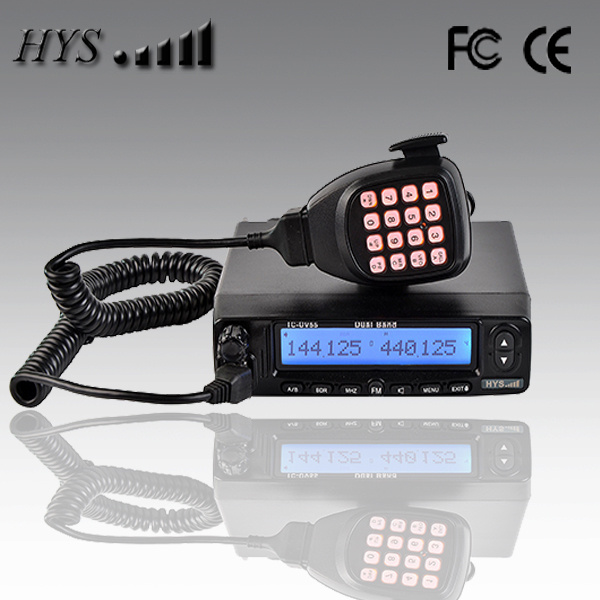

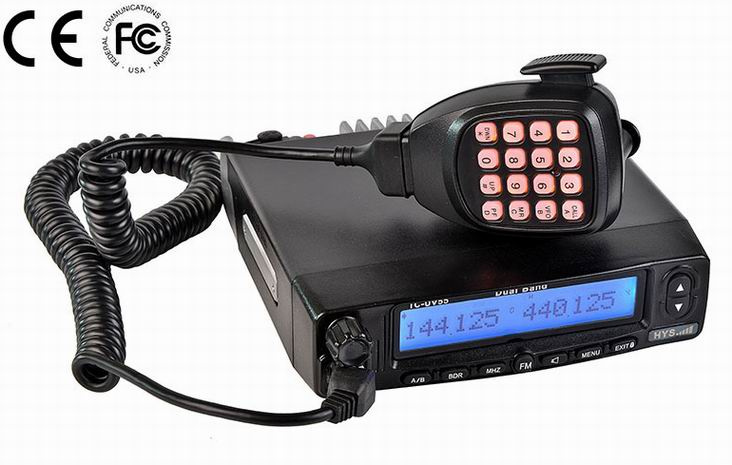

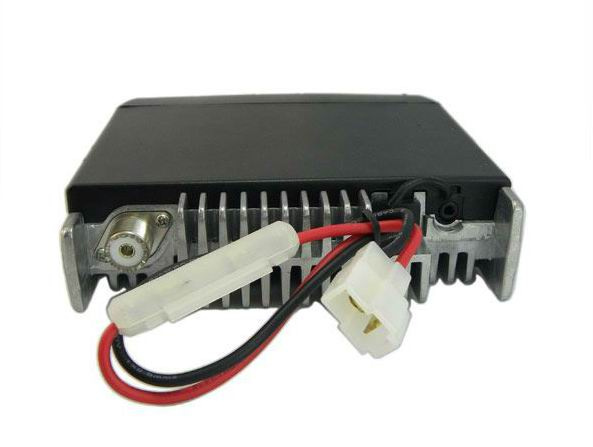

Tc-Vu55 Cheapest Dual Band VHF+UHF Mobile Vehicle Radio
| Price: |
Negotiable/Piece |
| Trade Terms: |
EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Money Gram,Western Union |
TC-VU55 High quality U&V U&U V&V V&U working mode Dual band Mobile radioProduct Description:Main feature: 1. Frequency Range: FM 87-108Mhz(Receiving) VHF 136-174Mhz(Receiving&Transmitting) UHF0 400-480Mhz(Receiving&transmitting)
2. Working Mode: Frequency mode, channel mode
3. Digital FM radio
4. Dual frequency Display
5. U&V,U&U,V&V,V&U dual band working mode can be selected arbitrarily
6. Dual Frequency standby in any band
7. DTMF signaling system
8. Alarm(Distant and spot alert)
9. Inspection,Monitor,Stun and Kill
10. 50 Groups CTCSS and 105 Groups DCS
11. Non-standard CTCSS(Can be edited arbitrary between 60Hz and 259.9 Hz)
12. High/Low Power shift
13. TOT(Transmit Over Timer)
14. Channel Step(5K, 6.25K, 10K, 12.5K, 25K)
15. Wide and Narrow band Selectable (N:12.5KHz/W:25KHz)
16. Busy channel lockout
17. Auto backlight
18. Auto/Manual keyboard lock
19. Three Display Color selectable both in transmitting,receiving and standby
20. Frequency, Channel order and Channel name multi-display mode
21. ANI code display(caller ID)
22. Ring alert function
23.DTMF sidetone switch
24. 1750Hz burst tone
25. 3 kinds of scan mode(TO/CO/SE)
26. PTT-ID Function(BOT/EOT/BOTH)
27.Multi-kind mute modes(QT/AND/OR)
28. Frequency shift direction selectable in frequency mode
29. Offset Frequency( can be set between 0 and 69.9875 MHz in Frequency Mode)
30. Frequency, channel and menu fast search function
31.Channel Parameter can be saved in the Frequency Mode
32.128 memory channels
33. Reverse Frequency Function
34. U/V Receiving and Transmitting Inter-Band can be Connected with Repeater
35. PC Programmable Specifications: General:
Frequency range: FM 87-108MHz, VHF 136-174MHZ , UHF 400-480MHZ PLL channel step 5,6.25kHz
Memory channels: 128
Operating voltage: 13.8VDC±15%
Bandwidth: Wide:25kHz, Narrow: 12.5kHz
Operate temperature: -30°C-+60°C
Net Weight: 1200g
Dimensions: 160*43*137mm
Current drain: Standby ≤0.4A, Receive ≤1.0A , Transmit≤0.8A
Transmitter:
RF output power: VHF 45W/UHF 35W
FM Modulation Noise: Wide:45dB, Narrow: 40dB
Spurious and harmonics: 70dB
Audio distortion: ≤3%
Modulation: Wide:16K0F3E, Narrow: 11K0F3E
Frequency Stability: ±2.5ppm
Receiver:
Sensitivity(12dB SINAD): Wide:0.18uV, Narrow:0.22 uV
Spurious response: 75dB
Selectivity: Wide:70 dB, Narrow:60dB
Audio power output: 4.0W/8Ω
Inter modulation: Wide:70 dB, Narrow:60dB
Frequency Stability: ±2.5ppm Product Pictures:
| Prod Model: |
TC-VU55 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Dual Band Mobile Radio |
| Brand Name: |
Hys |
| Model: |
Tc-Vu55 |
| Type: |
Vehicle Type Radio |
| Color: |
Black |
| Frequency Range: |
VHF 136-174MHz , UHF 400-480MHz |
| Pll Channel Step: |
5,6.25kHz |
| Memory Channels: |
128 |
| Operating Voltage: |
13.8VDC±15% |
| RF Output Power: |
VHF 45W/UHF 35W |
| Wavelength And Frequency: |
Long-wave |
| Application: |
Military |
| Certification: |
CE |
| Condition: |
New |
| Standard: |
Standard |
| Screen: |
With Screen |
| Style: |
. |
