Price: | Negotiable/Piece |
---|---|
Trade Terms: | FOB,EXW |
Min Order: | 1/Piece |
Pay Type: | T/T,Paypal,Western Union |

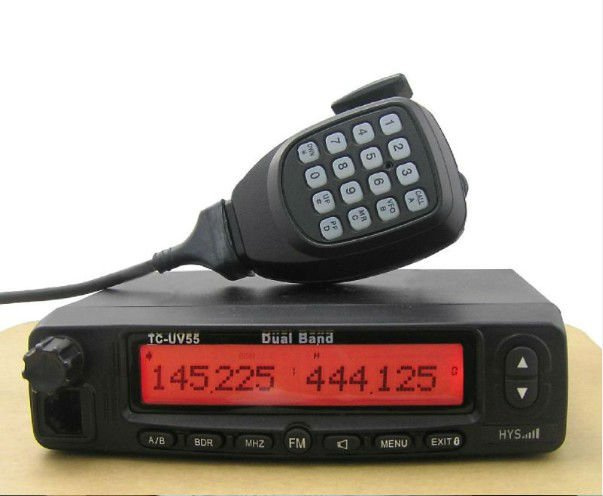

Prod Model: | TC-VU55 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Frequency Range: | VHF 136-174MHz & UHF 400-480MHz |
Output Power: | VHF 45W/UHF 35W |
Memory Channels: | 128 |
Bandwidth: | 25kHz (Width)/12.5kHz(Narrow) |
Ctcss/Dcs: | 50 Groups Ctcss&105 Groups Dcs Encode/Decode |
Frequency/Channel Scanning: | Yes |
Vfo Step Setting: | 5k, 6.25k, 10k, 12.5k, 25k |
Dual Frequency Standby: | Yes |
Dtmf Function: | Yes |
PC Programming: | Yes |
Standard: | Standard |
Condition: | New |
Screen: | With Screen |
Certification: | CE |
Application: | Military |
Wavelength And Frequency: | Short-wave |
Style: | Sky Wave |
Main Functions:
1. Frequency Range: 136-174MHz, 400-480MHz.
Output power:VHF 45W/UHF 35W
2. Working Mode: U&V, U&U, V&V, V&U
3. Dual frequency display(Caller ID)
4. Dual frequency standby in any band
5. Receiving and transmitting inter-band
6. DTMF Signaling System
7. Digital FM Radio
8. 50 Groups CTCSS and 105 Groups DCS
9. ANI Code Display
10. All calls, group calls and selective calls
11.Alarm(Distant Urgency Alarm and Alarm at local)
12. Non-standard CTCSS(Can be edited arbitrary between 60Hz and 259.9 Hz)
13. TOT
14. High/Low Power shift
15. CTCSS or DCS can be set respectively
16. Channel Step(5K, 6.25K, 10K, 12.5K, 25K)
17. VOX function
18. Battery Save Function
19. Wide and Narrow band Selectable (N:12.5KHz/W:25KHz)
20. Busy Channel lockout
21. Low Voltage Alarm with Sound and Light
22. Auto Backlight
23. Auto/Manual Keyboard Lock
24. Three Display Color selectable both in transmitting,receiving and standby
25. Frequency, Channel order and Channel name multi-display mode
26. Calling Ring Function
27. DTMF
28. PTT-ID Function
29. Mute mode (CTCSS/DCS, CTCSS/DCS and Optional Signal, CTCSS/DCS plus Optional Signal)
30. Offset Frequency( can be set between 0 and 69.9875 MHz in Frequency Mode)
31. Operating MENU directly through Keypad
32. Frequency, Channel and MENU Fast Search Function
33. Channel Parameter can be saved in the Frequency Mode
34. 128 Channels
35. Reverse Frequency Function
36. U/V Receiving and Transmitting Inter-Band can be Connected with Repeater
37. Wired Cloning Function
38. PC Programmable
General Specification Compatible With American Military Standard(MIL-STD-810C/D/E) |
|||
Frequency range |
VHF 136-174MHZ and UHF 400-480MHZ |
PLL channel step | 5,6.25kHz |
Memory channels | 128 | Operating voltage | 13.8VDC±15% |
Bandwidth | Wide:25kHz ,Narrow: 12.5kHz | Operate temperature | –30°C-+60°C |
Net Weight | 1200g | Dimensions | 160*43*137mm |
Current drain: Standby ≤0.4A,Receive ≤1.0A ,Transmit≤0.8A | |||
Transmitter (Measurements made per TIA/EIA-603) | |||
RF output power | VHF 45W/UHF 35W | FM Modulation Noise | Wide:45dB,Narrow: 40dB |
Spurious and harmonics | 70dB | Audio distortion | ≤3% |
Modulation | Wide:16K0F3E Narrow: 11K0F3E | Frequency Stability | ±2.5ppm |
Receiver (Measurements made per TIA/EIA-603) | |||
Sensitivity(12dB SINAD) | Wide:0.18uV Narrow:0.22 uV | Spurious response | 75dB |
Selectivity | Wide:70 dB Narrow:60dB | Audio power output | 4.0W/8Ω |
Inter modulation | Wide:70 dB Narrow:60dB | Frequency Stability | ±2.5ppm |
