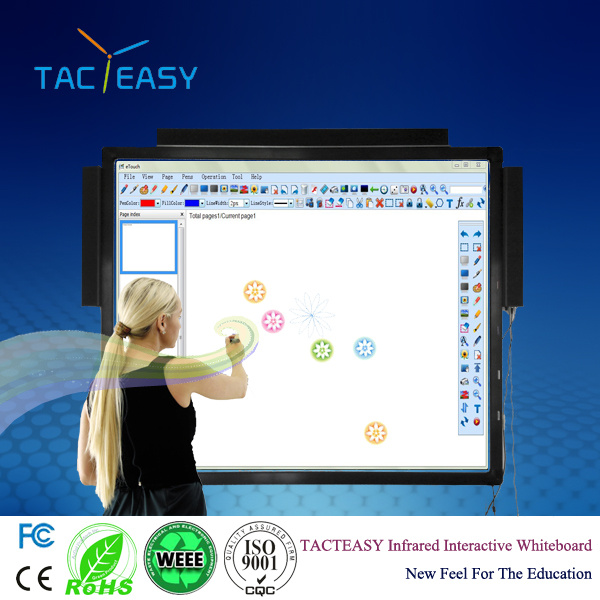

TE-88FT Durable Surface IR Interactive Whiteboard Smart Board
The benefits of Tacteasy Infrared Interactive whiteboard:
1) Meetings project your presentations onto TACTEASY board right from your PC. Use the pens or fingers to control your PC application right from the board itself.
2) Presentations no just present to your participants, also interact with them. Simply use the pen or finger to emphasize and highlight key words and substance. Incorporate comments and feedback. Save and distribute the collaborated presentation to all attendees.
3) Seminars using the TACTEASY interactive whiteboard and pen or finger, adding notes to your presentation has never been easier. Stand in front of your board and have complete control over your PC and its applications.
4) Training as you write on the board, participants in the audience in front of you, as well as those on the network, see the same training materials. Once the training session has been completed, participants can store the materials for future use.
Interactive whiteboards advanced educational tool that lets you grab student's attention. It makes it easy to create effective, eye-catching teaching materials and it promotes active, visual-based teaching and learning.
The advantage of Tacteasy Infrared Interactive Whiteboard:
ð Double User write at the same time, infrared sensor technology, with finger touch directly for operation;
ð Strong anti- resistance to light, work directly under sunlight;
ð Multi-touch, intelligent gesture-recognition like: Start software by palm, turn page by hand-waving, moving writing on page by fingers, fist work as eraser;
ð Module design, simple combination, installation and parts exchange after sale actively.
ð Aluminum NANO surface, write by normal EXPO pen, both normal brush and even wet cloth can clear well;
ð The material is exquisite; Adopt the aluminum honeycomb as the basal plate, flatter and more reliable. Make sure the longevity can reach 5 years;
ð USB works as direct power supply, update and data transfer;
ð Free software update for lifetime.
|
Basic Data |
Accessories |
|
Boards Material |
Aluminum Honeycomb |
Pen and pointer |
Yes |
|
Induction Type |
infrared |
Software CD |
Yes |
|
Writing Type |
finger or pen |
USB Cable |
Yes |
|
Positioning Accuracy |
≤ 0.2mm |
User Guide Manual |
Yes |
|
Touch Preciseness |
8192×8192 |
Wall Mount Brackets |
Yes |
|
Cursor Speed |
≥125dots/second |
Stand |
optional |
|
Transferring Rate |
12m/s |
Hardware Features |
|
Scanning Rate |
first point 25ms consecutive points 8ms |
Device driver version |
DL-USB |
|
Consumption Current |
≤100mA |
Scanning form |
Auto |
|
Stand USB Length |
6m |
Version |
Latest available |
|
Working Environment |
Direct under the sunlight |
Data Port |
USB |
Dimensions
|
|
Model |
Size |
Scale |
Outline Area (mm) |
Touch Area (mm) |
|
TE-80FT |
80'' |
4:3 |
1612×1202 |
1476×1066 |
|
TE-80FTW |
80'' |
16:9 |
1776×1038 |
1640×902 |
|
TE-88FT |
88'' |
4:3 |
1779×1366 |
1640×1230 |
|
TE-88FTW |
88'' |
16:9 |
1858×1120 |
1722×984 |
|
TE-96FT |
96'' |
4:3 |
1940×1530 |
1804×1394 |
|
TE-96FTW |
96'' |
16:9 |
2104×1284 |
1968×1148 |
|
TE-116FTW |
116'' |
16:9 |
2514×1530 |
2378×1394 |
